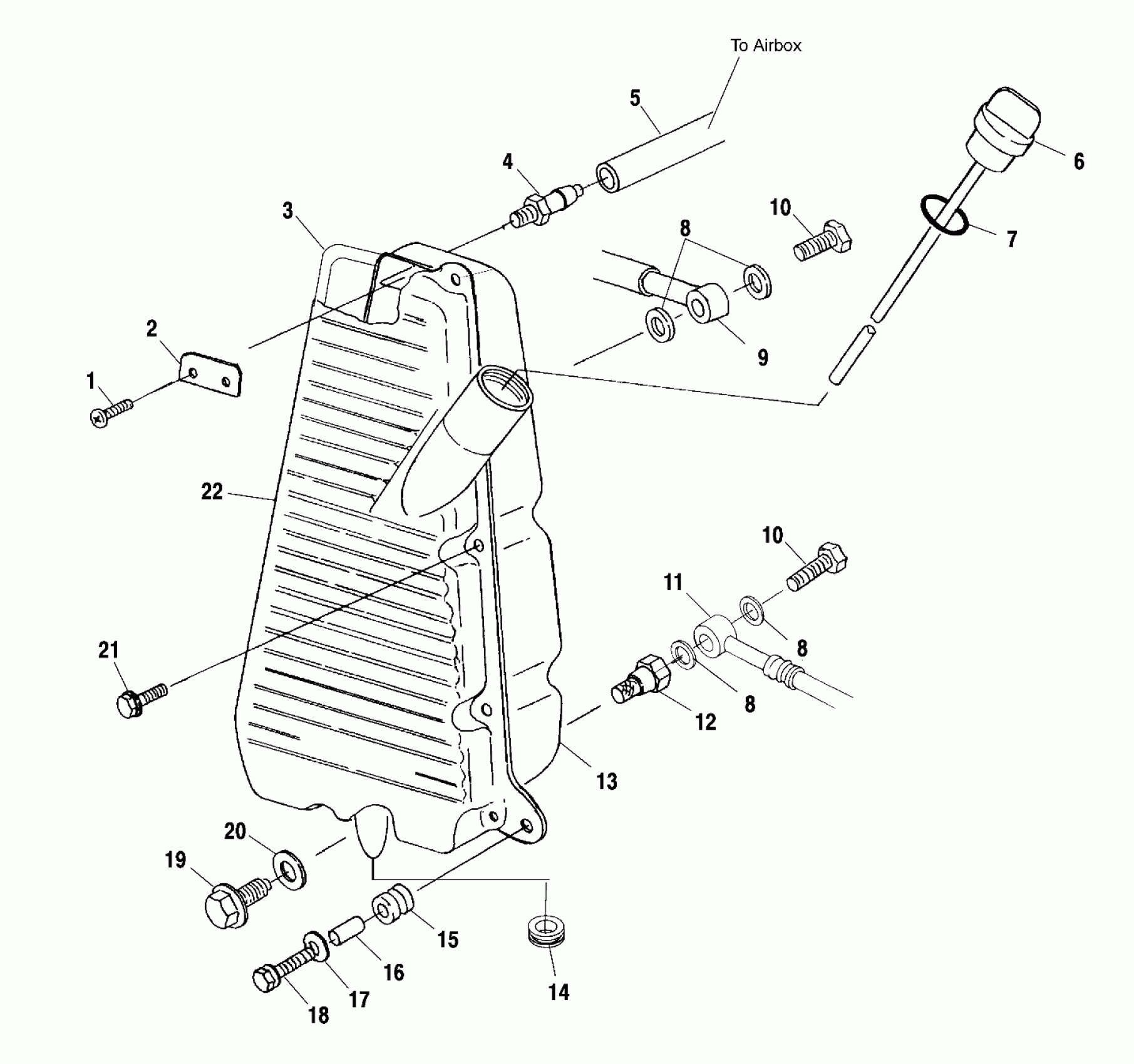

Polaris SPORTSMAN 335 - A00CH33AB OIL TANK - A00CH33AA (4957715771B012) Diagram

#

Description
Price

1

SCREW-SEMS(10)

7511848

$3.99

2

PLATE,VENT,OIL TANK

5211523

$13.99

3

GASKET,OIL RESERVOIR

5830053

$54.99

4

Fitting

7052163

Unavailable

5

HOSE,BREATHER(50.5 CM.)

5411477

Unavailable

6

DIPSTICK

5432289

Unavailable

7

O RING

5410889

Unavailable

8

WASHER,COPPER,14MM.

7555896

$1.49

8

WASHER,COPPER,14MM.

7555896

$1.49

8

WASHER,COPPER,14MM.

7555896

$1.49

9

TUBE,BANJO RETURN

7052220

Unavailable

10

BOLT

7517102

Unavailable

10

BOLT

7517102

Unavailable

11

TUBE,BANJO INTAKE

7052133

Unavailable

12

SCREEN-OIL FILTER,BANJO

2530020

Unavailable

13

TANK,LH,OIL

5131785

$131.99

14

Grommet

5411042

Unavailable

15

GROMMET,MTG,RESERVOIR (10)

5410828

$3.99

16

BUSHING,MTG.

5333204

$26.39

17

WASHER(10)

7558301

$1.49

18

SCREW(10)

7512242

$2.39

19

PLUG,MAG.12 M.

7051524

$27.99

20

WASHER

5850135

$3.19

21

SCREW(10)

7515158

$4.79

22

TANK,OIL,RH

5131255

Unavailable
