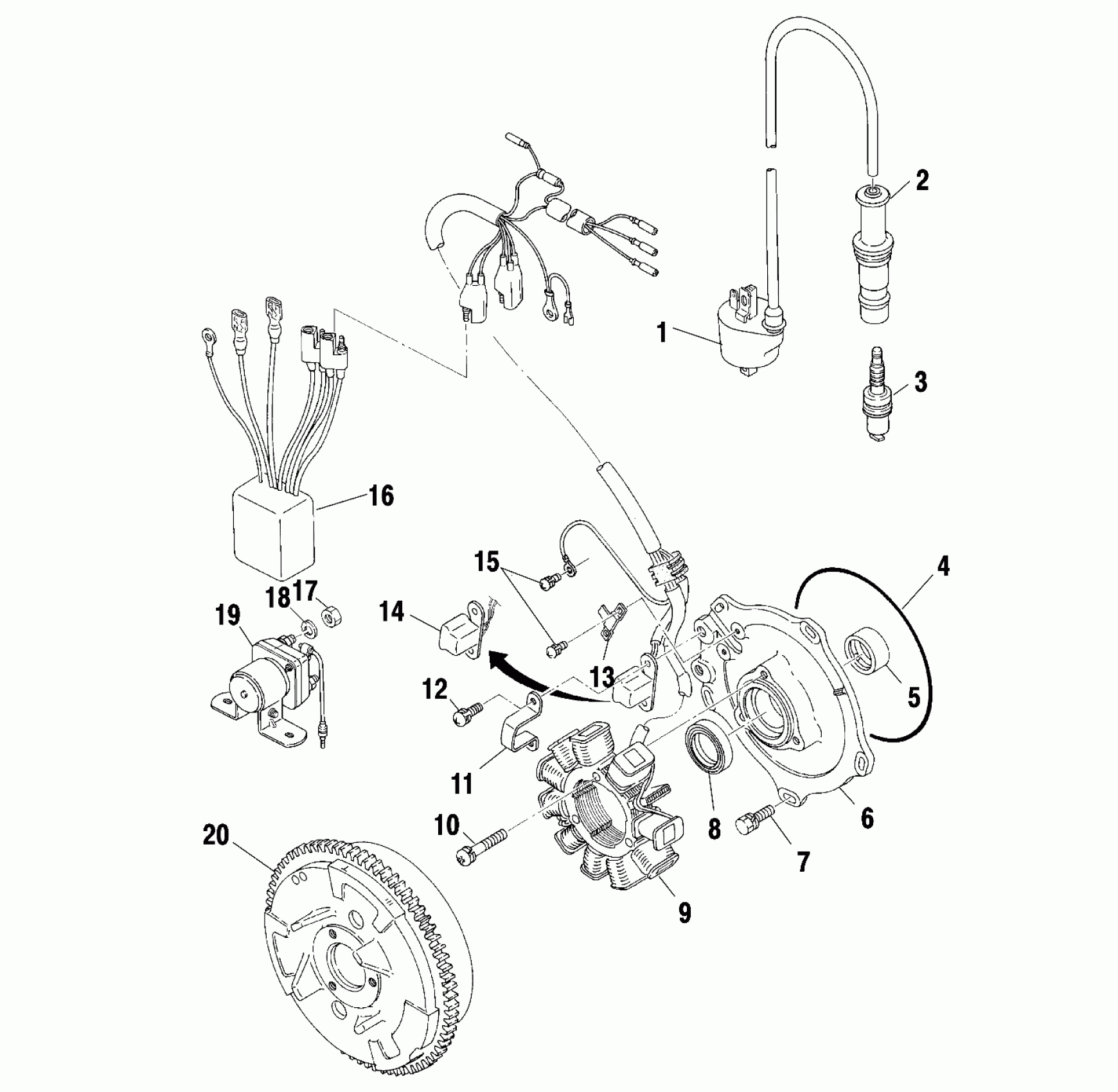

Polaris SPORTSMAN 335 - A00CH33AB MAGNETO - A00CH33AB (4957715771D011) Diagram

#

Description
Price

1

COIL,IGNITION (Incl. 1,2)

3085921

Unavailable

1

COIL,IGNITION

3085922

Unavailable

2

CAP, SPARKPLUG *

3084980

$59.99

3

SPARKPLUG,NGK BKR 7E(10)

3085784

$3.99

4

O-RING

3084978

$35.99

5

BEARING, METAL

3084972

Unavailable

6

Plate

3084971

Unavailable

6

PLATE,ASM * (Incl. 5,6,8-13,15)

3086859

Unavailable

7

BOLT&WASHER ASM.

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

STATOR * (Incl. 14)

3086860

Unavailable

10

SCREW&WASHER ASM(10)

3081342

$1.49

11

Band, Pulse

3085554

Unavailable

12

SCREW&WASHER ASM.

3084976

Unavailable

13

Clamp

3084977

Unavailable

14

COIL,PULSER

3085360

Unavailable

15

SCREW&WASHER ASM(10)

3081256

$3.19

16

CDI SYSTEM *

3085639

Unavailable

17

Nut

3083073

$2.39

18

WASHER SPRING(10)

3080077

$2.39

19

SWITCH,MAGNETIC *

3085521

$60.70

20

FLYWHEEL,W/RING GEAR

3086857

Unavailable
