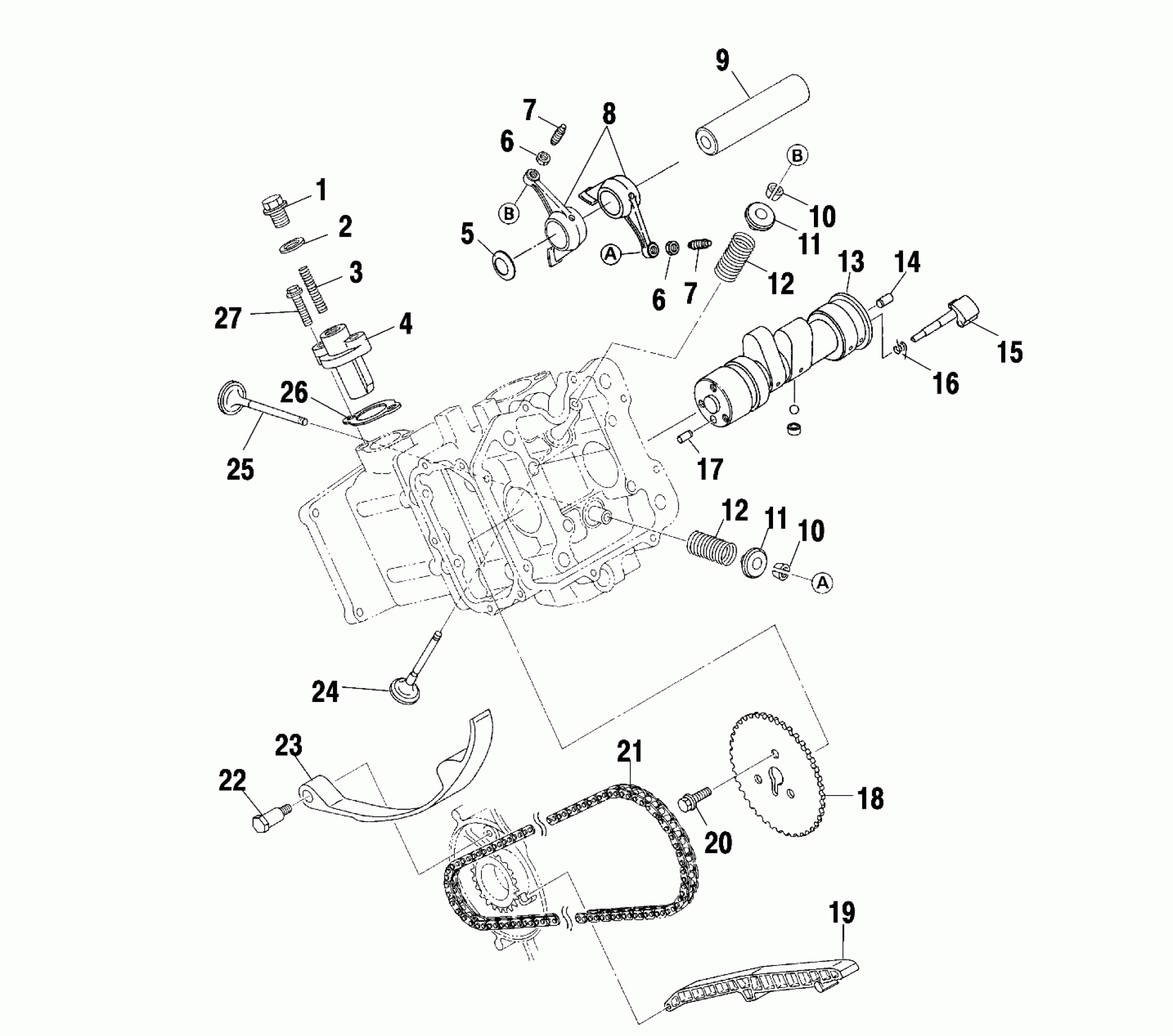

Polaris SPORTSMAN 335 - A00CH33AB INTAKE and EXHAUST - A00CH33AB (4957715771D007) Diagram

#

Description
Price

1

PLUG

3084845

Unavailable

2

Gasket, Plug

3084920

Unavailable

3

SPRING,TENSIONER

3086839

Unavailable

4

TENSIONER,ASM (Incl. 1-3)

3086813

Unavailable

5

WASHER-WAVE

3085836

$5.56

6

NUT(10)

3084912

$3.97

6

NUT(10)

3084912

$3.97

7

SCREW, ADJ.

3084911

$9.52

7

SCREW, ADJ.

3084911

$9.52

8

ROCKERARM ASM,INTAKE * (Incl. 6,7)

3084910

$125.46

9

SHAFT,ROCKER

3085780

$34.92

10

COLLET,VALVE

3084908

$4.84

10

COLLET,VALVE

3084908

$4.84

11

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

11

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

12

SPRING,VALVE Substituted by 3086892

3084906

$28.32

12

SPRING,VALVE Substituted by 3086892

3084906

$28.32

13

CAMSHAFT (Incl. 14-17)

3085853

Unavailable

14

DOWEL-PIN

3086838

$7.14

15

LEVER, RELEASE

3085348

Unavailable

16

SPRING,RETURN

3085076

Unavailable

17

PIN,DOWEL

3084899

$7.14

18

SPROCKET 2

3084914

Unavailable

19

GUIDE,CHAIN

3084916

Unavailable

20

BOLT&WASHER ASM.

3081657

$4.76

21

CHAIN, TIMING *

3084915

$101.17

22

BOLT,PIVOT,LEVER

3084924

Unavailable

23

LEVER

3084917

Unavailable

24

VALVE,INTAKE

3085778

Unavailable

25

VALVE-EXHAUST

3086441

$56.65

26

GASKET,TENSIONER

3084922

Unavailable

27

BOLT, FLANGE

3084874

Unavailable
