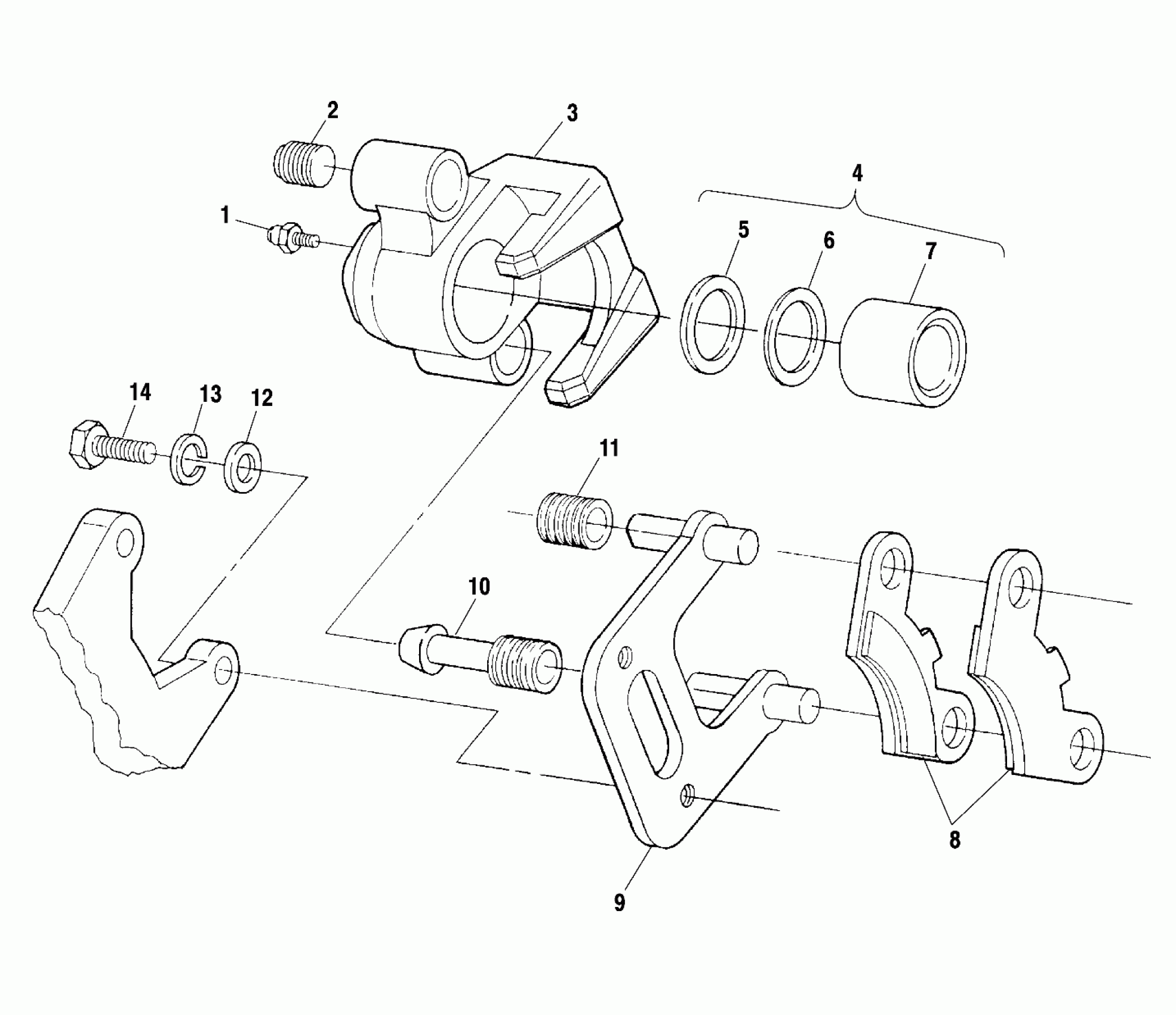

Polaris SPORTSMAN 335 - A00CH33AB FRONT BRAKE - A00CH33AA (4957715771B008) Diagram

#

Description
Price

-

CALIPER ASM,RH,F.BRAKE (Incl. 1-7,9,10)(If built after 7/1/99)

1910264

Unavailable

-

CALIPER ASM,LH,F.BRAKE (Incl. 1-7,9,10)(If built after 7/1/99)

1910271

Unavailable

-

CALIPER ASM,LH,FR,BRAKE Substituted by 1910271 (Incl. 1-7,9,10)(If built before 7/1/99)

1910232

Unavailable

-

CALIPER ASM,RH,FR.BRAKE Substituted by 1910264 (Incl. 1-7,9,10)(If built before 7/1/99)

1910233

Unavailable

1

SCREW,BLEEDER

7080352

$3.19

2

SETSCREW,SKT.HD.(10)

7515489

$5.59

3

KIT-BOOT,FRONT BRAKE

1930642

$11.19

3

CALIPER,LH,BRAKE,MACH. Substituted by 5131261

5131115

Unavailable

3

CALIPER,RH,BRAKE,MACH. Substituted by 5131262

5131116

Unavailable

4

PISTON & SEAL,KIT (Incl. 5-7)

1930665

$55.99

5

SQUARE RING-MOLDED (.094) (.094)

5410779

$10.51

6

RING,SQUARE,MOLDED (.103 x .134)

5410780

$10.51

7

PISTON-BRAKE,LONG Substituted by 1930665

5132294

$54.04

8

KIT,BRAKEPAD,FRONT

2200465

$47.99

8

KIT,FR.BRAKEPAD,HVY.DUTY

2200901

$55.99

8

KIT,BRAKEPAD,FR,(ATV)

2201149

$55.99

9

MOUNT ASM,CALIPER Substituted by 1910412

1910265

Unavailable

10

Boot, Bushing

5410495

Unavailable

11

Boot, Pin Seal

5410494

Unavailable

12

Washer (See Front Strut Pg. B6, Ref. 4)

-------

Unavailable

13

Washer (See Front Strut Pg. B6, Ref. 8)

-------

Unavailable

14

Screw (See Front Strut Pg. B6, Ref. 7)

-------

Unavailable
