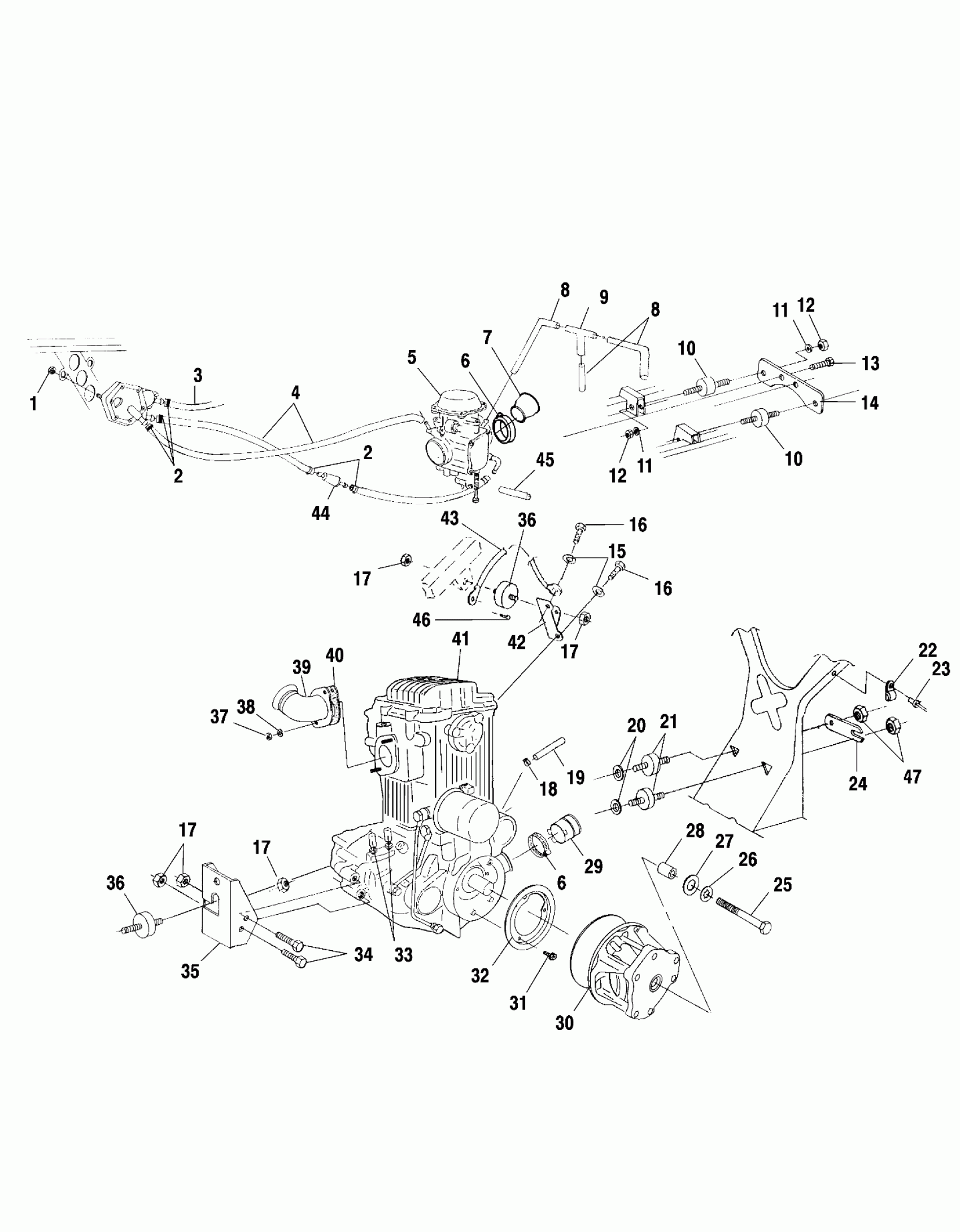

Polaris SPORTSMAN 335 - A00CH33AB ENGINE MOUNTING - A00CH33AA (4957715771A013) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.19

2

HOSE CLAMP, RED

7080003

$1.19

2

HOSE CLAMP, RED

7080003

$1.19

3

HOSE,(.25 IDX1.75"LG.)

5811490

Unavailable

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

5

Asm., Carburetor (See Carburetor Pg. D6, Ref. 9)

----

Unavailable

6

CLAMP, NARROW BAND(10)

7080511

$4.76

6

CLAMP, NARROW BAND(10)

7080511

$4.76

7

BOOT,CARB

5410995

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

8

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

9

FITTING, TEE

7052075

$9.52

10

Mount, Rubber

3110032

Unavailable

10

Mount, Rubber

3110032

Unavailable

11

WASHER(10)

7552605

$5.69

11

WASHER(10)

7552605

$5.69

12

NUT HEX(10)

7542105

$3.97

12

NUT HEX(10)

7542105

$3.97

13

SCREW & WASHER(10)

3084205

$3.97

14

STRAP,CARB.MT,BLK.

5211626-067

Unavailable

15

LOCK WASHER(10)

7552901

$1.19

16

BOLT(10)

7512315

$4.76

16

BOLT(10)

7512315

$4.76

17

NUT LOCK(10)

7542403

Unavailable

17

NUT LOCK(10)

7542403

Unavailable

17

NUT LOCK(10)

7542403

Unavailable

17

NUT LOCK(10)

7542403

Unavailable

18

CLAMP,HOSE,SPRING

7080694

$6.64

19

HOSE,BREATHER(50.5 CM.)

5411477

Unavailable

20

WASHER, FLAT(10)

7555815

$3.97

21

MOUNT,RUBBER,FRONT

3110046

Unavailable

22

CLAMP,NYLON,CABLE(10)

7080539

$4.76

23

RIVET(50)

7621462

$1.19

24

STRAP,FRAME SUPPORT,BLK

5224658-067

Unavailable

25

BOLT(10)

7512566

$33.24

26

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

27

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

28

BUSHING-.437 X.770 X.50

5430261

$7.14

29

BOOT,CLUTCH INTAKE

5410421

$11.32

30

Asm., Drive Clutch, ATV-08 (See Drive Clutch Pg. C3, Ref. 14)

----

Unavailable

31

Screw and Washer (See Crankcase Pg. D2, Ref. 6)

----

Unavailable

32

Bracket, Retainer, Seal (See Clutch Cover Pg. C5, Ref. 23)

----

Unavailable

33

CLAMP-HOSE,.875-SS

7080474

$8.54

34

BOLT(10)

7515417

$4.76

35

MOUNT,FR.ENGINE,BLK.

5241150-067

Unavailable

36

MOUNT,RUBBER,TOP

3110044

$44.51

36

MOUNT,RUBBER,TOP

3110044

$44.51

37

NUT(10)

3080285

Unavailable

38

WASHER LOCK ,(10)

3080530

$3.17

39

MANIFOLD,BLK

1260771-029

$162.99

40

Gasket, Exhaust (See Cylinder Pg. D3, Ref. 27)

----

Unavailable

41

ENG.ES33PFE-01 (ES33PFE02-SB) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for

3085826

Unavailable

42

MOUNT,ENG,TOP,BLK

5241453-067

Unavailable

43

CABLE,GND-ENGINE

4010132

Unavailable

44

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46

45

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

46

BOLT(10)

7512232

$1.19

47

NUT LOCK(10)

7542411

$3.17
