Partiron

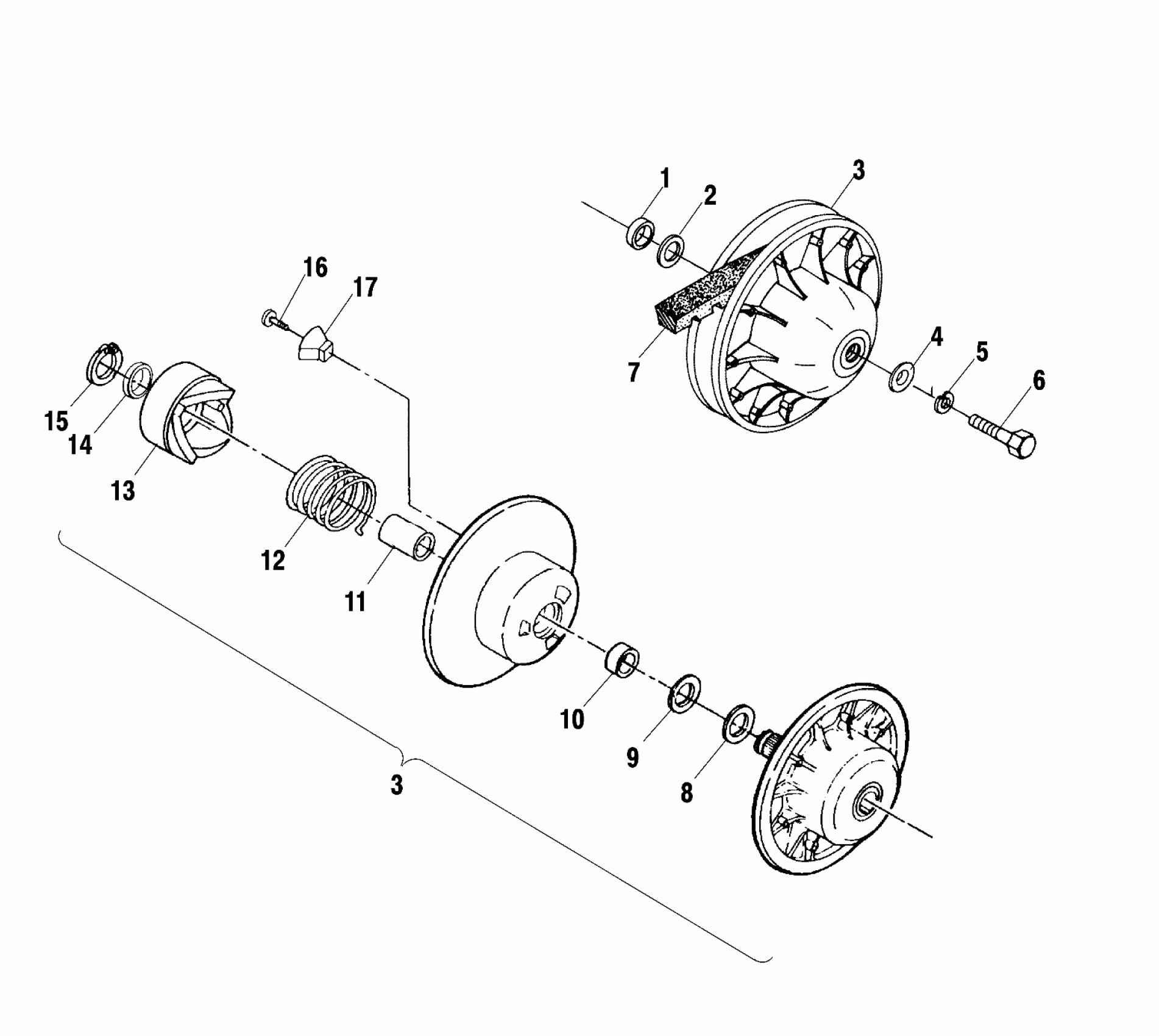

Polaris SPORTSMAN 335 - A00CH33AB DRIVEN CLUTCH - A00CH33AB (4957715771C004) Diagram

#

Description
Price

1

SPACER,DRIVEN,ATV

5010409

Unavailable

2

BUSHING(10)

7556401

Unavailable

3

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 8-11,14-17)

1322182

$614.99

3

CLUTCH,DRVN,3-ANGLE,HVY RET (Incl. 8-11,14-17)

1322182

$614.99

4

WASHER, DOMED(10)

5220646

$2.39

5

LOCK WASHER(10)

7552901

$1.49

6

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

7

BELT,DRIVE,ATV,CLOSE TOL(5)

3211077

$63.99

8

WASHER(10) (.020)

7555898

Unavailable

8

WASHER(10) (.25)

7556076

Unavailable

9

WASHER(10)

7556804

Unavailable

10

BUSHING, DRIVEN

3576504

$23.99

11

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

SPRING,CLUTCH,(RED)

7041198

$52.60

13

RAMP,STA.MACH,COMP MOD,HVY RET Substituted by 5132344

5131447

$77.21

14

SPACER(10)

5210752

$1.59

15

RING,RET.

7710448

$3.19

16

BOLT(10)

7511854

$1.49

17

BUTTON,RAMP

5430766

Unavailable
