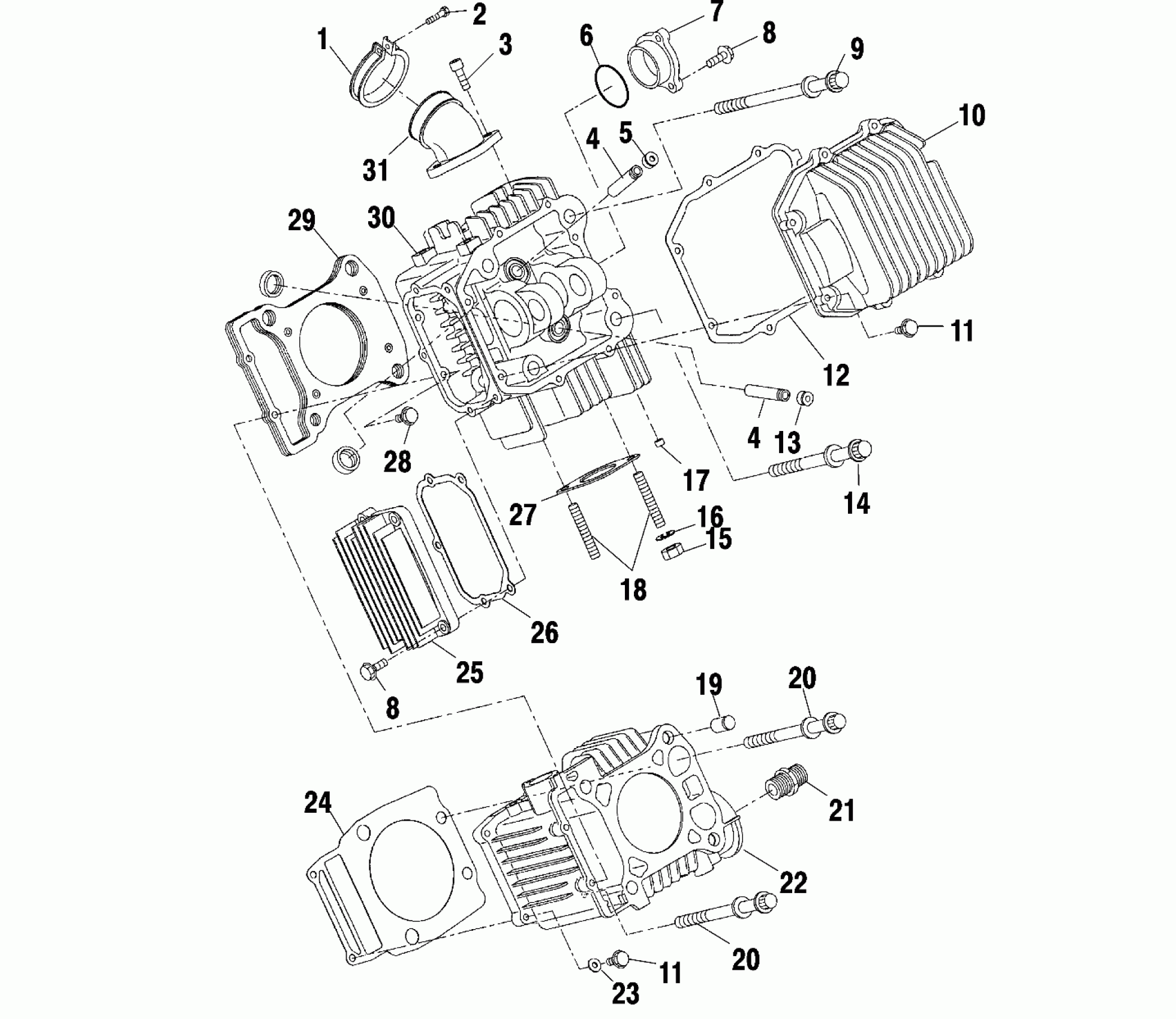

Polaris SPORTSMAN 335 - A00CH33AB CYLINDER - A00CH33AB (4957715771D003) Diagram

#

Description
Price

1

BAND ASM. (Incl. 2)

3083166

$19.84

2

SCREW,(10)

3081497

$2.39

3

Bolt, Allen

3081330

$3.99

4

GUIDE,VALVE

3084994

$39.99

4

GUIDE,VALVE

3084994

$39.99

5

SEAL,INTAKE VALVE

3084858

$13.59

6

O-RING

3084867

$23.99

7

ADAPTER,CAMSHAFT

3084866

Unavailable

8

BOLT,FLANGE(10)

3084877

Unavailable

8

BOLT,FLANGE(10)

3084877

Unavailable

9

BOLT

3084875

Unavailable

10

COVER,ROCKER

3085767

Unavailable

11

BOLT, FLANGE

3084874

Unavailable

11

BOLT, FLANGE

3084874

Unavailable

12

GASKET-ROCKER COVER

3085831

Unavailable

13

SEAL,EXHAUST VALVE

3084859

$23.99

14

BOLT (HEAD)

3085832

$7.99

15

NUT(10)

3080285

Unavailable

16

WASHER LOCK ,(10)

3080530

$3.19

17

PLUG, BLIND

3084862

Unavailable

18

STUD,(10)

3085326

Unavailable

19

PIN,STRAIGHT

3084838

Unavailable

20

BOLT, FLANGE

3084873

Unavailable

20

BOLT, FLANGE

3084873

Unavailable

21

UNION,OIL PUMP

3084849

Unavailable

22

CYLINDER,UNIT

3086847

Unavailable

23

Washer

3082206

$1.49

24

GASKET-CYLINDER

3085827

Unavailable

25

COVER-CAMSHAFT

3085830

Unavailable

26

GASKET,COVER,CAM

3086850

Unavailable

27

GASKET,EXH.

3085075

$39.99

28

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

29

GASKET-HEAD

3085829

Unavailable

30

HEAD,CYLINDER (Incl. 4,5,13,17,18)

3086849

Unavailable

31

ADAPTER

3084879

Unavailable
