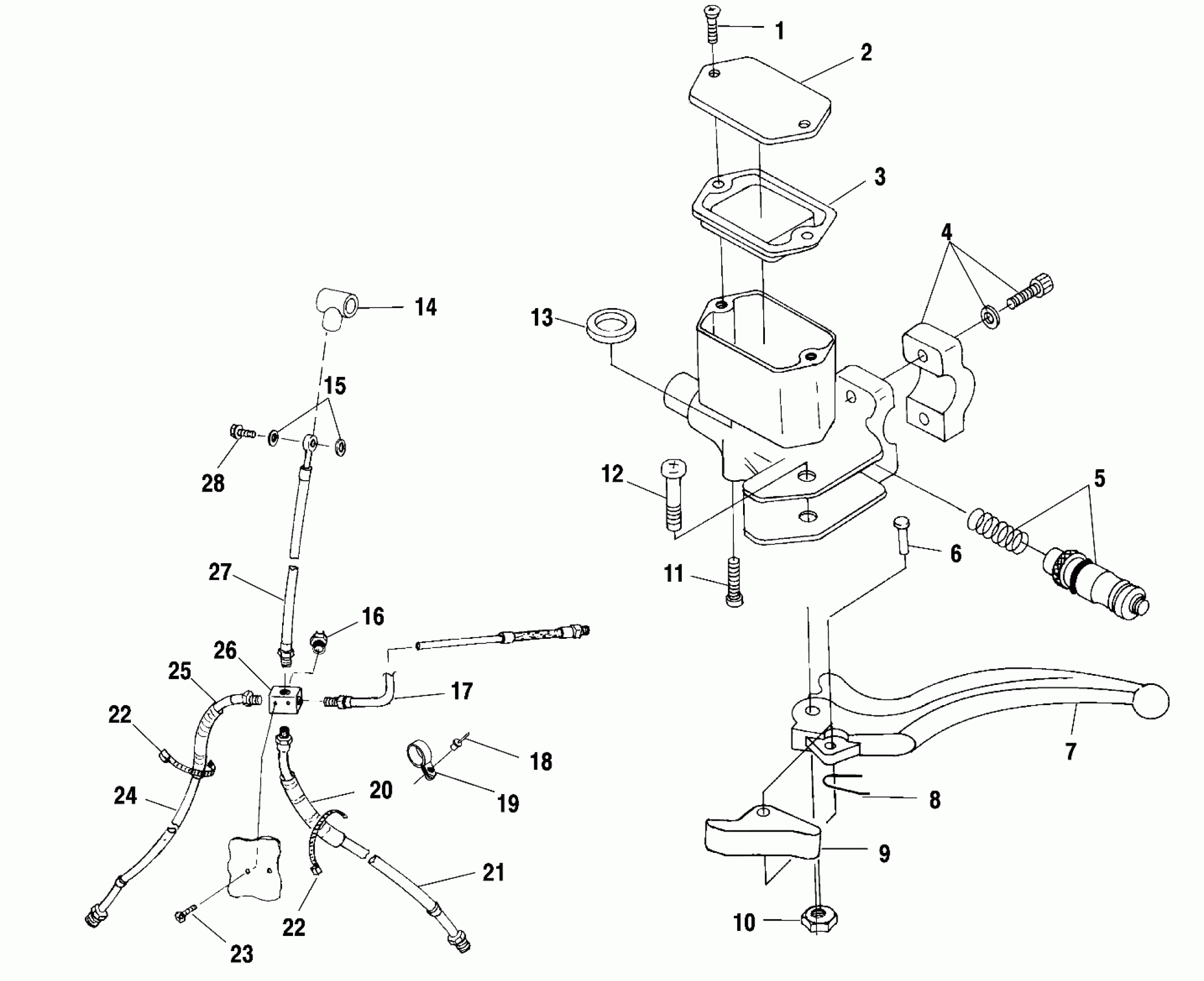

Polaris SPORTSMAN 335 - A00CH33AB CONTROLS - MASTER CYLINDER/BRAKE LINE - A00CH33AA (4957715771B010) Diagram

#

Description
Price

-

MASTER CYL.ASM,3/4"BANJO (Incl. 1-6,10-13)

2050078

$243.99

-

KIT,MASTER CYL RES. (Incl. 1-3,13)

2200809

$68.79

1

KIT,BOLT(2),RES.CAP,MCYL

1930797

$11.19

2

CAP,M.CYL.RES.

1930796

Unavailable

3

DIAPHRAGM,M.CYL.RES.

1930795

$44.51

4

KIT,M.CYL.CLAMP

2200808

Unavailable

5

PISTON,MCYL,3/4"

1930799

$89.03

6

Rivet

1930804

Unavailable

7

KIT,LEVER (Incl. 6-9)

2201034

$63.99

8

SPRING, FLAT

-------

Unavailable

9

KIT,LEVER,PARKBRAKE (Incl. 6,8)

2201090

$40.46

10

NUT,M.CYL.HANDLE PIVOT

1930806

Unavailable

11

BOLT,MCYL.RESERVOIR,KIT

1930792

$23.99

12

BOLT,M.CYL.HANDLE PIVOT

1930805

Unavailable

13

RING, SQUARE, RESERVOIR

-------

Unavailable

14

BOOT,BRAKELINE,RUBBER

5411297

$2.07

15

Seal

5410988

$4.84

16

SWITCH,STOPLIGHT

4110164

Unavailable

17

Line, Brake, Rear (See Rear Brake/Foot Pedal Pg. C8, Ref. 6)

-------

Unavailable

18

RIVET(50)

7621462

$1.49

19

CLAMP,NYLON,CABLE(10)

7080539

$4.79

20

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

21

LINE,BRAKE,LH,FR,W/FITTINGS

1930752

$87.99

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

23

SCREW,(10)

7512024

$4.79

24

CONDUIT, 38 CM.

8360031-38

$2.63

25

LINE,BRAKE,RH,FR.W/FITTINGS

1930753

$87.99

26

FITTING,CROSS INVERT,FLARE

7052129

Unavailable

27

BRAKELINE ASM,POD

1930817

Unavailable

28

BOLT,BANJO,BRAKE

1930674

Unavailable
