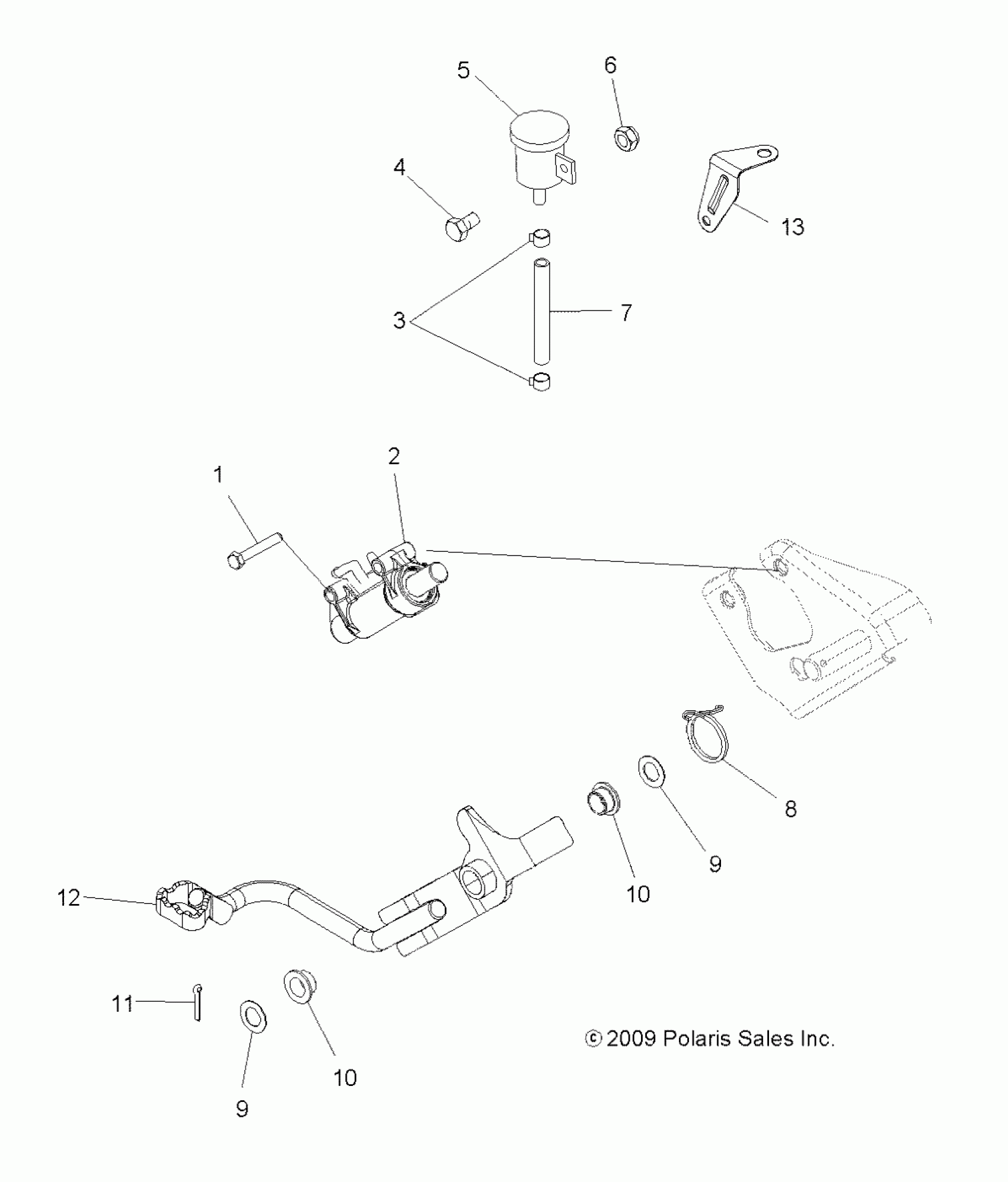

Polaris SPORTSMAN 300 4X4 - A10LH27AX/AZ BRAKES, BRAKE PEDAL and REAR MASTER CYLINDER - A10LH27AX/AZ (49ATVBRAKEFOOT10HAWK) Diagram

#

Description
Price

1

Screw

7518470

$1.49

2

Asm., Cylinder, Master, Brake, Rear

1911310

$174.03

3

HOSE CLAMP, RED

7080003

$1.49

4

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

5

Asm., Reservoir

1930854

$35.99

6

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

7

Hose, Reservoir

1911267-200

$14.75

8

Spring, Torsion, Brake

7043126

$1.83

9

WASHER

7555919

$4.99

9

WASHER

7555919

$4.99

10

BUSHING, PEDAL PIVOT

5433189

$3.99

10

BUSHING, PEDAL PIVOT

5433189

$3.99

11

PIN, COTTER

7661401

$1.49

12

Pedal, Brake, Black

1015048-067

$51.99

13

Bracket, Brake Reservoir

5252419

$5.75
