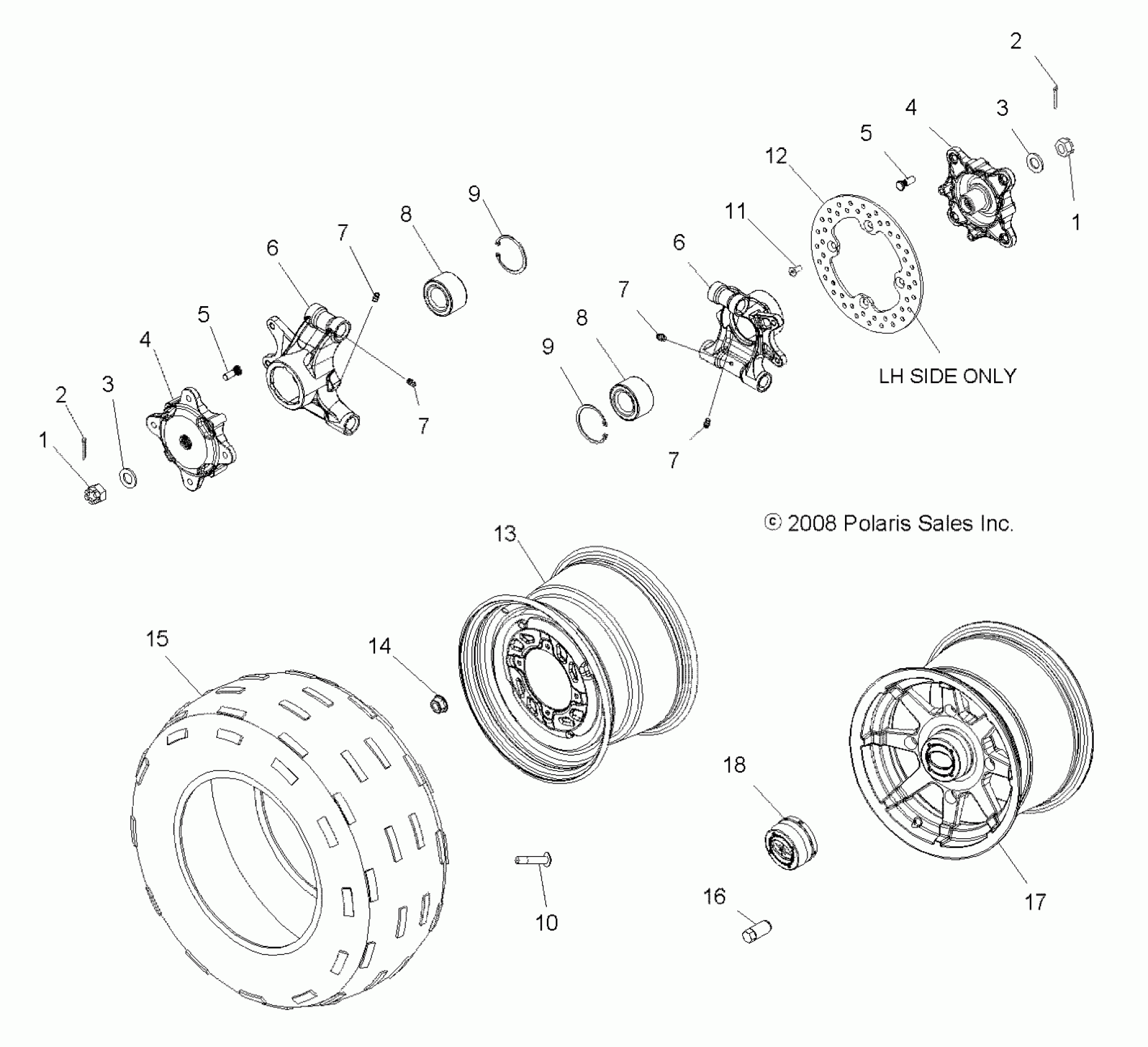

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ WHEELS, REAR - A08LH27AW/AX/AZ (49ATVWHEELREAR08SP3) Diagram

#

Description
Price

1

NUT, CASTLE

7547337

$1.99

1

NUT, CASTLE

7547337

$1.99

2

PIN, COTTER

7661404

$4.79

2

PIN, COTTER

7661404

$4.79

3

WASHER, CONE

7555796

$7.99

3

WASHER, CONE

7555796

$7.99

4

Hub, Rear

5135546

$104.99

4

Hub, Rear

5135546

$104.99

5

Stud [AW]

7518378

$1.59

5

Stud [AX][AZ]

7515513

$1.49

5

Stud [AW]

7518378

$1.59

5

Stud [AX][AZ]

7515513

$1.49

6

Carrier, Bearing, Rear, LH

5135671

$119.03

6

Carrier, Bearing, Rear, LH

5135671

$119.03

7

Fitting, Lubrication

7080433

$1.49

7

Fitting, Lubrication

7080433

$1.49

7

Fitting, Lubrication

7080433

$1.49

7

Fitting, Lubrication

7080433

$1.49

8

Bearing [Built 9/17/07 and Before]

3514342

Unavailable

8

BEARING-WHEEL, 35X64X37MM [Built 9/18/07 and After]

3514634

$39.99

8

Bearing [Built 9/17/07 and Before]

3514342

Unavailable

8

BEARING-WHEEL, 35X64X37MM [Built 9/18/07 and After]

3514634

$39.99

9

RING, RETAINING

7710507

$2.39

9

RING, RETAINING

7710507

$2.39

10

VALVE-RIM

1525017

$5.59

11

Screw

7518451

$9.59

12

Disc, Brake, Rear

5248213

$66.65

13

Rim, Rear, Silver [AZ]

1520713-486

Unavailable

13

Rim, Rear, Black [AX]

1520713-067

Unavailable

14

NUT, FLANGE

7547237

$2.39

15

Tire, Rear 22x10-12 [AX][AZ]

5413077

$119.99

15

Tire, Rear, 23x10R12, ACT [AW]

2876085

Unavailable

16

Nut, Wheel [AW]

7547309

$3.59

17

Rim, Rear, Cast Alum. [AW]

1521105

Unavailable

18

CAP-RIM [AW]

1521128

$20.39
