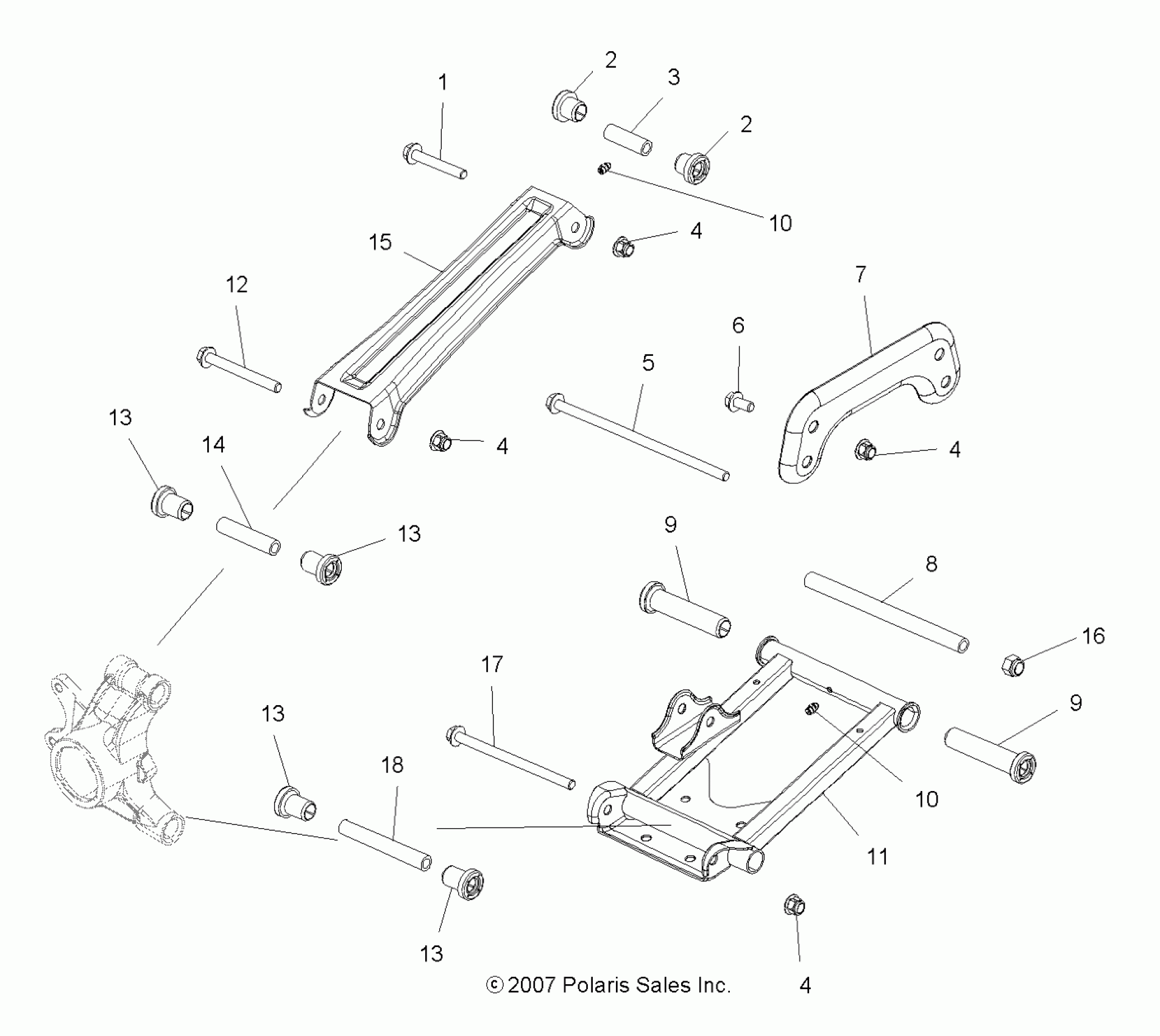

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ SUSPENSION, REAR - A08LH27AW/AX/AZ (49ATVSUSPRR08SP300) Diagram

#

Description
Price

1

Screw, Flange

7518473

$4.79

2

Bushing, X-Short, Grey

5436971

$4.79

2

Bushing, X-Short, Grey

5436971

$4.79

3

Tube, Pivot

5135495

$23.99

4

Nut, Flange

7547313

$1.49

4

Nut, Flange

7547313

$1.49

4

Nut, Flange

7547313

$1.49

4

Nut, Flange

7547313

$1.49

5

Bolt, Flange

7518472

$6.39

6

Bolt

7518700

$3.99

7

Bracket, Support, Rear Suspension, Black

5249760-067

$84.99

8

Tube, Pivot

5135494

Unavailable

9

BUSHING, A-ARM, LONG

5436973

$5.19

9

BUSHING, A-ARM, LONG

5436973

$5.19

10

Fitting, Lubrication

7080433

$1.49

10

Fitting, Lubrication

7080433

$1.49

11

Arm, Control, Rear, Black, LH

1016211-067

Unavailable

11

Arm, Control, Rear, Black, RH

1016212-067

Unavailable

12

Screw, Flange

7518468

$5.59

13

Bushing, Short

5436972

Unavailable

13

Bushing, Short

5436972

Unavailable

13

Bushing, Short

5436972

Unavailable

13

Bushing, Short

5436972

Unavailable

14

Tube, Pivot

5135493

$22.21

15

Arm, Control, Upper, Black, LH

5249046-067

Unavailable

15

Arm, Control, Upper, Black, RH

5249047-067

$79.99

16

NUT, NYLOK

7547385

$1.49

17

Bolt

7518668

$7.19

18

Tube, Pivot

5135637

$27.99
