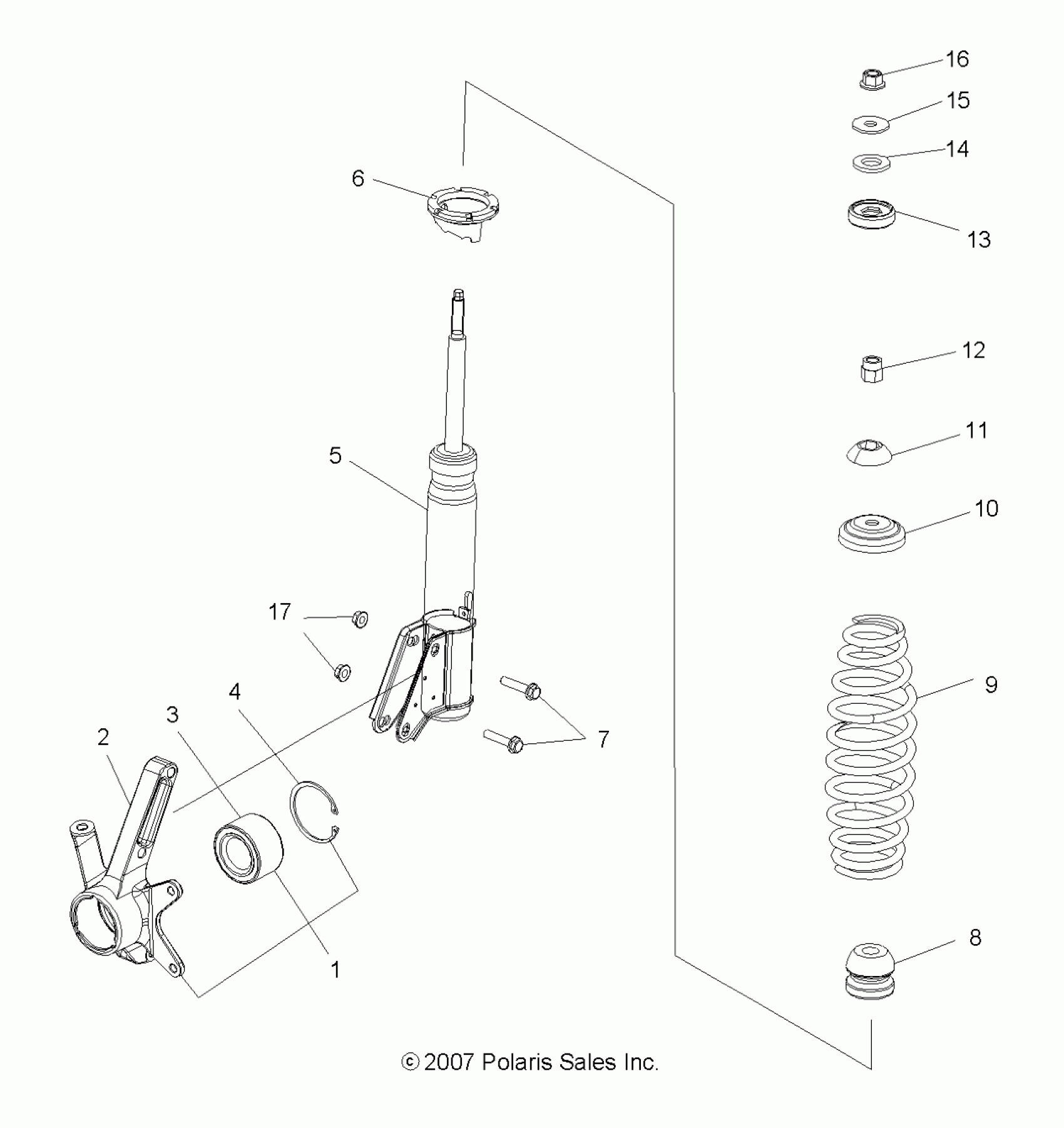

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ SUSPENSION, FRONT STRUT - A08LH27AW/AX/AZ (49ATVSTRUT08SP300) Diagram

Asm., Knuckle, Front, RH [Incl.2,3,4][Built 9/18/07 and After]

1521210

Unavailable

Asm., Knuckle Front, LH [Incl.2,3,4][Built 9/18/07 and After]

1521209

$178.08

Asm., Knuckle Front, LH [Incl.2,3,4][Built 9/17/07 and Before]

1521097

$178.08

Asm., Knuckle, Front, RH [Incl.2,3,4][Built 9/17/07 and Before]

1521098

Unavailable

Knuckle, Front, LH

5135607

$178.08

Knuckle, Front, RH

5135608

Unavailable

Bearing [Built 5/01/07 and Before]

3514342

Unavailable

BEARING-WHEEL, 35X64X37MM [Built 5/02/07 and After]

3514634

$39.99

RING, RETAINING

7710507

$2.39

Strut, Front

7043274

Unavailable

Cam, Adjuster

5631795

Unavailable

Screw, Flange

7518474

$4.79

BUMPER-MCU,17.8MM ID

5412665

$6.39

Spring, Compression, Black [AX][AZ]

7043135-067

$49.59

Spring, Compression, Silver [AW]

7043135-385

$49.59

RETAINER-SPRING,STRUT

5243364

$19.99

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

Spacer

5135054

Unavailable

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

SPACER-RUBBER

5810291

$3.99

WASHER

7555749

$1.49

Nut, Flange

7547327

$3.99

Nut, Flange

7547313

$1.49
