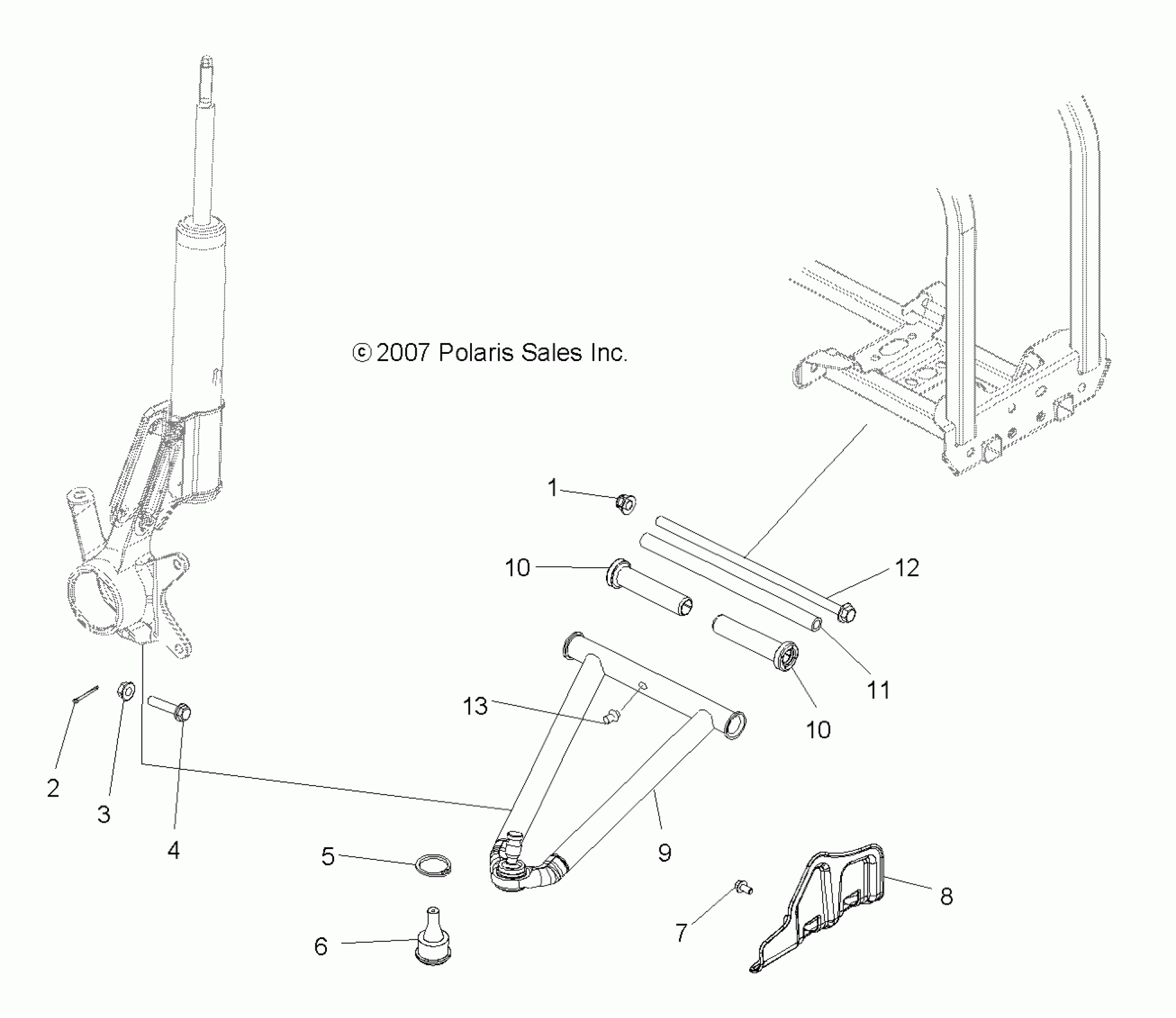

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ SUSPENSION, A-ARM and STRUT MOUNTING - A08LH27AW/AX/AZ (49ATVAARM08SP300) Diagram

Description

Price

Nut, Flange

7547313

$1.49

Pin, Cotter

7661203

$1.49

Nut, Flange

7547317

Unavailable

Screw

7518698

$7.19

Ring, Retainer, External

7710533

$2.39

Joint, Ball

7081263

$39.99

Screw

7512084

$1.49

Shield, CV, LH, Black

5436411-070

Unavailable

Shield, CV, RH, Black

5436412-070

$32.37

A-Arm, 4x4, Black, RH

1542328-067

Unavailable

A-Arm, 4x4, Black, LH

1542327-067

Unavailable

Bushing, A-Arm, Long, Grey

5436973

$5.19

Bushing, A-Arm, Long, Grey

5436973

$5.19

Tube, Pivot

5134926

$28.32

Screw, Flange

7518458

$7.99

Fitting, Lubrication

7080433

$1.49
