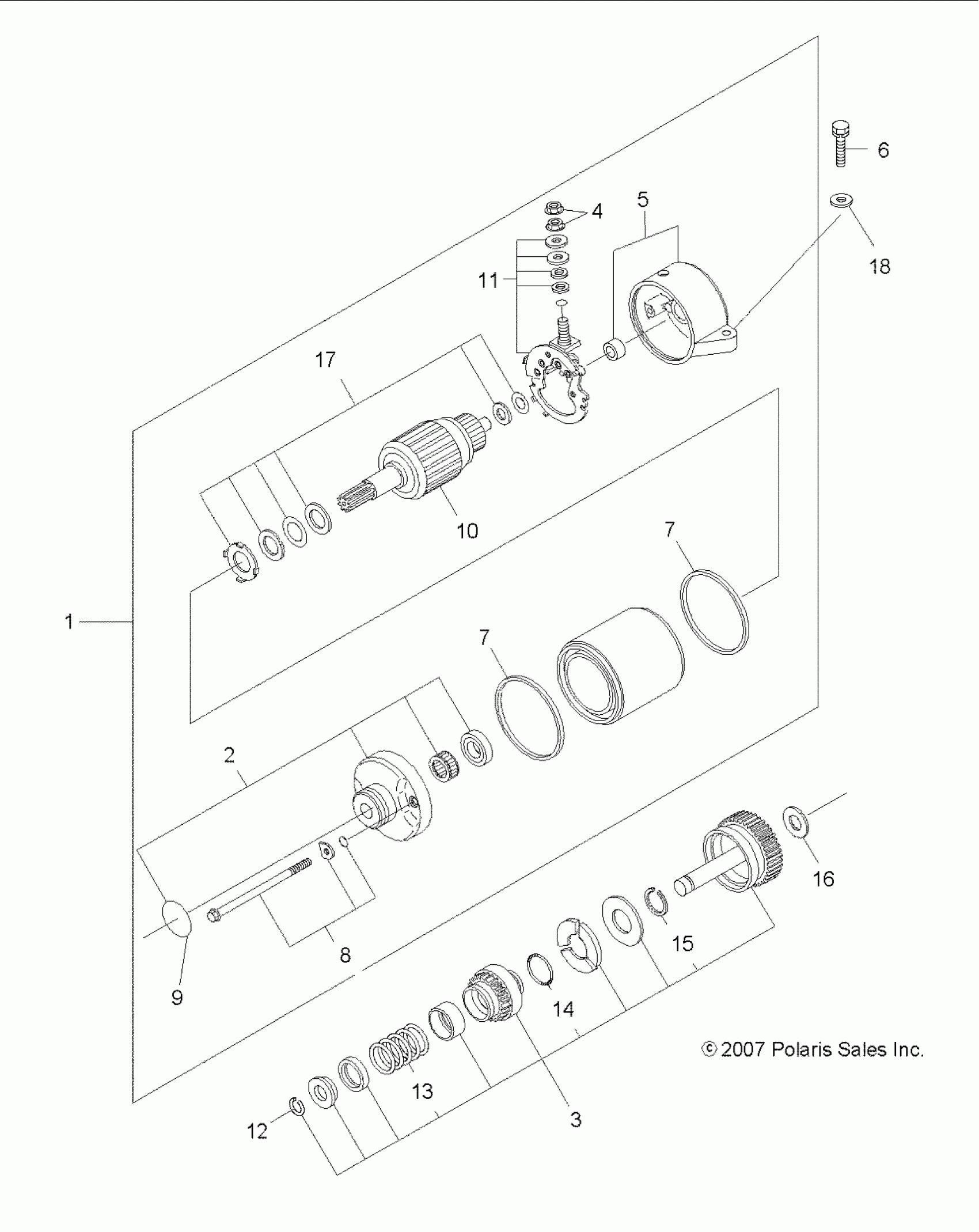

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ ENGINE, STARTING SYSTEM - A08LH27AW/AX/AZ (49ATVSTARTER08SP300) Diagram

#

Description
Price

1

Motor, Starter, Complete [Incl. 2,45,7-11,17]

3089879

Unavailable

2

Asm., Bracket, Front [Incl. 9]

3089911

Unavailable

3

Asm., Gear Shaft [Incl. 12-16]

3089863

Unavailable

4

NUT, FLANGE

3083649

$3.99

5

Bracket, Rear

3089914

$66.39

6

BOLT, FLANGE

3084874

Unavailable

7

RING, RUBBER

3084405

Unavailable

7

RING, RUBBER

3084405

Unavailable

8

Asm., Set Bolt

3084983

$23.99

9

O-Ring

3240114

$5.59

10

Armature

3089915

Unavailable

11

Carbon Brush Set

3088169

$115.99

12

CLIP

3084409

$7.19

13

SPRING, RETURN

3084410

$2.47

14

SPRING, WEIGHT

3084411

$15.67

15

CLIP

3084412

$9.59

16

WASHER

3240134

Unavailable

17

Washer Set

3089912

Unavailable

18

Washer, Flat [Used with Starter Ground Cable]

7558301

$1.49
