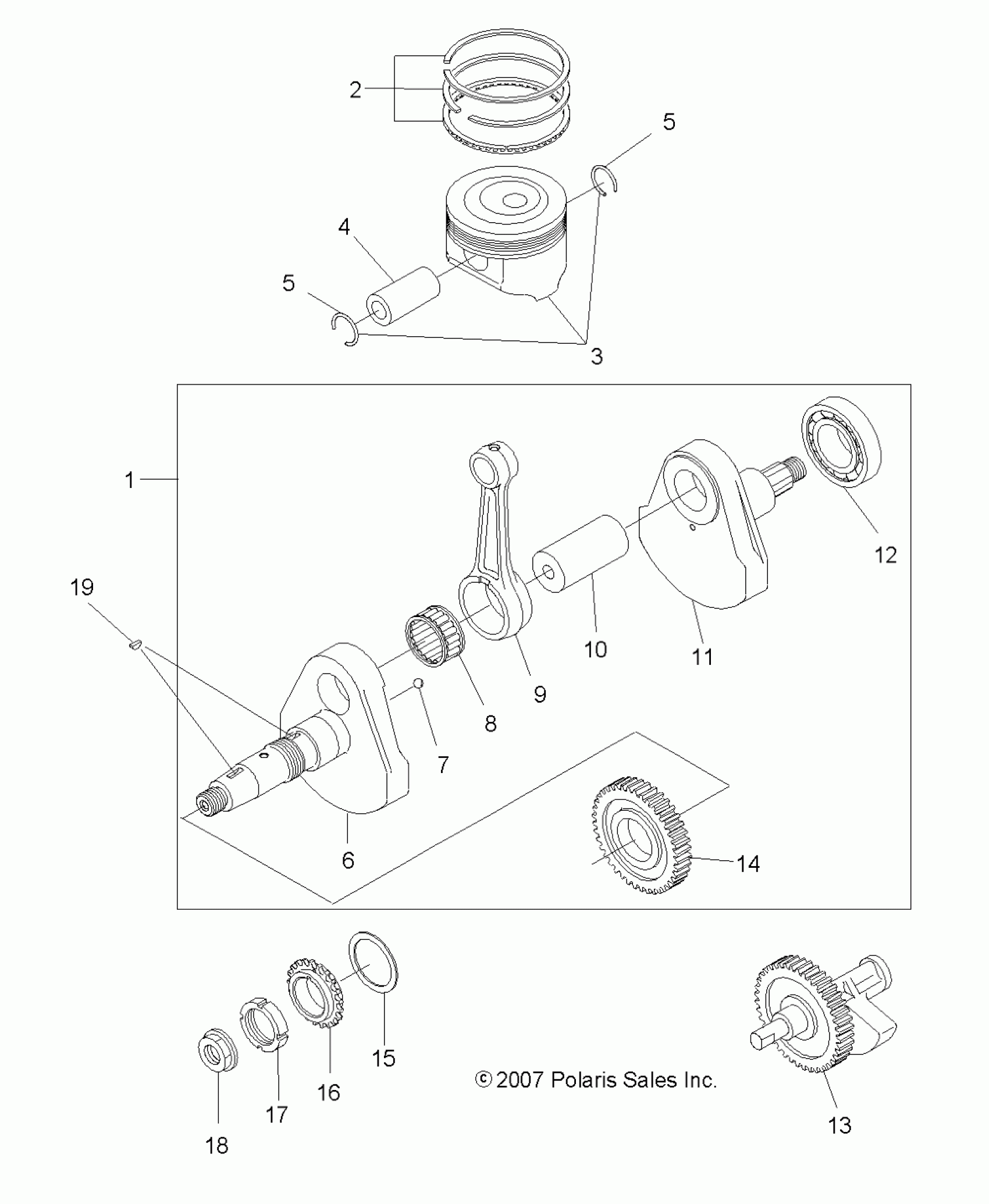

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ ENGINE, CRANKSHAFT and PISTON - A08LH27AW/AX/AZ (49ATVCRANKSHAFT08SP300) Diagram

#

Description
Price

1

Asm., Crankshaft [Incl. 6-12,14]

3089807

Unavailable

2

Piston Ring Set, Standard

3089822

Unavailable

2

Piston Ring Set, .25mm O/S

3089823

Unavailable

2

Piston Ring Set, .5mm O/S

3089824

Unavailable

3

Piston Set, Standard [Incl. 5]

3089818

$179.99

3

Piston Set, .25mm O/S [Incl. 5]

3089819

$179.99

3

Piston Set, .5mm O/S [Incl. 5]

3089820

$179.99

4

Pin, Piston

3089821

$23.99

5

Clip

3084167

$6.39

5

Clip

3084167

$6.39

6

Crankshaft 1

3089808

$424.99

7

BALL, STEEL

3085024

$5.59

8

Bearing, Large End

3089812

$49.99

9

Rod, Connecting

3089811

$174.99

10

Pin, Crank

3089810

$163.99

11

Crankshaft 2

3089809

$181.59

12

Bearing, Ball

3089814

$42.46

13

Shaft, Balancer

3089815

Unavailable

14

Gear, Balancer, 1

3089813

$50.62

15

Spacer

3089825

Unavailable

15

Spacer

3089826

$2.07

15

Spacer

3089827

Unavailable

16

Sprocket 1

3089816

Unavailable

17

Nut

3085528

$35.99

18

Nut

3089991

$3.03

19

KEY, WOODRUFF

3081543

$12.94
