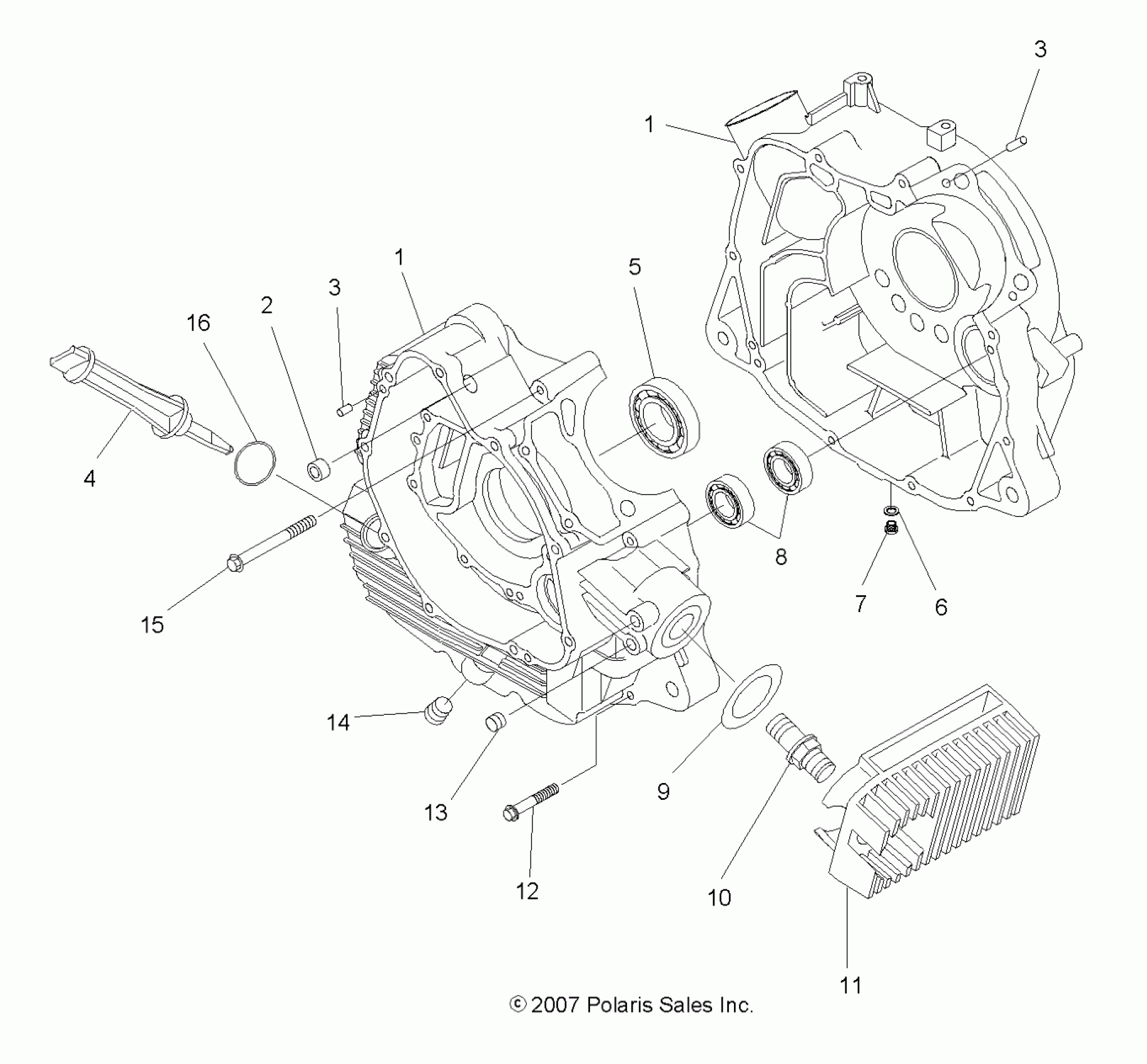

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ ENGINE, CRANKCASE - A08LH27AW/AX/AZ (49ATVCRANKCASE08SP300) Diagram

#

Description
Price

1

Asm., Crankcase [Incl. 2,3,5,8,12-15]

3089788

$728.56

1

Asm., Crankcase [Incl. 2,3,5,8,12-15]

3089788

$728.56

2

BUSHING, STARTER

3083669

Unavailable

3

Pin, Dowel

3086741

Unavailable

3

Pin, Dowel

3086741

Unavailable

4

Gauge, Oil

3089795

Unavailable

5

Bearing, Ball

3089789

$10.99

6

Washer

3089794

$3.99

7

Plug

3089793

Unavailable

8

Bearing, Ball

3089790

Unavailable

9

Gasket

3089977

$24.27

10

Connector, Oil Cooler

3089971

$46.23

11

Block, Oil Cooling

3089908

Unavailable

12

Bolt, Flange

3089792

$7.99

13

Plug

3089993

$4.23

14

Plug

3089994

$3.83

15

Blot, Flange

3088046

$3.99

16

O-Ring

3087065

$6.39
