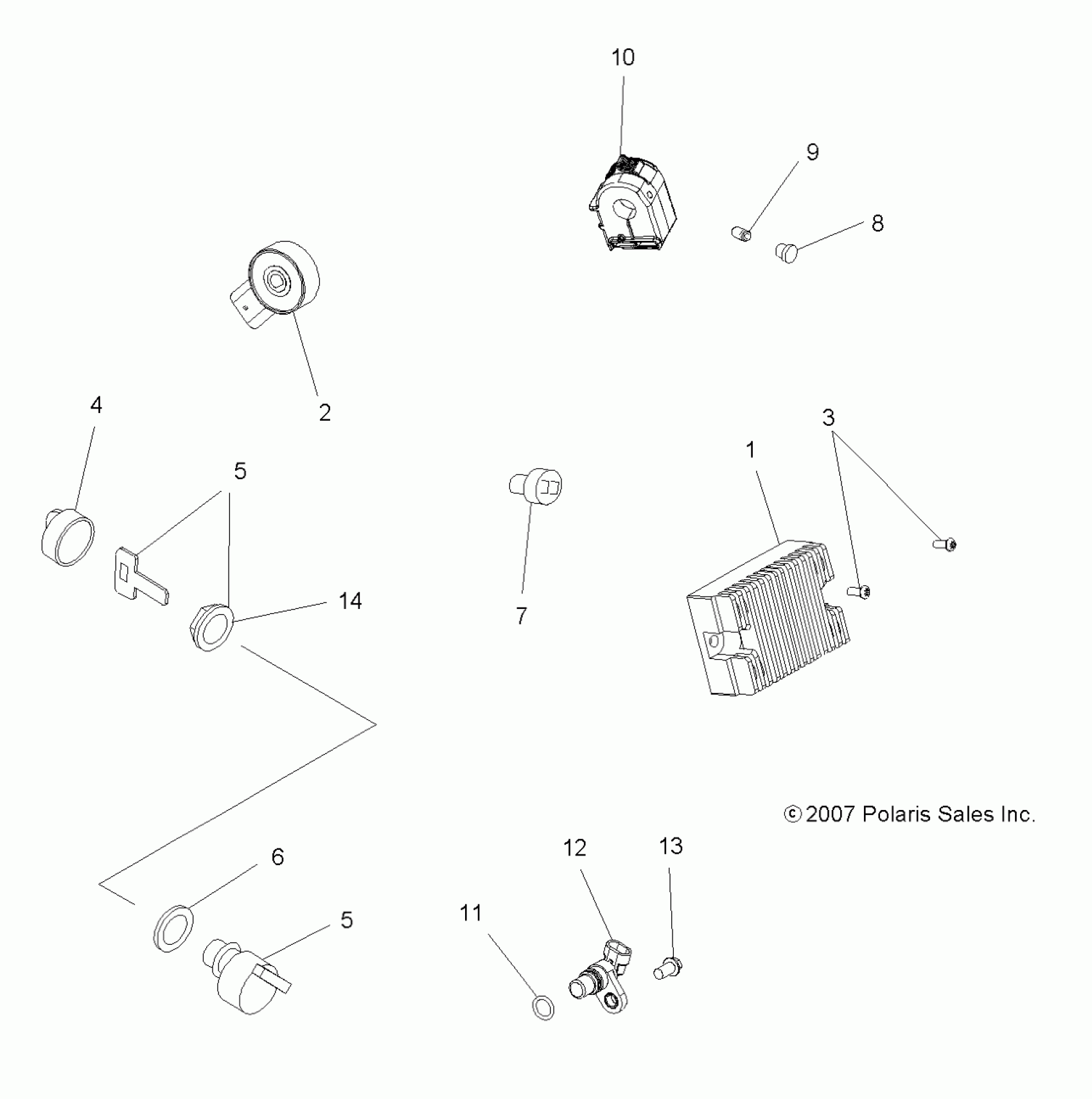

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ ELECTRICAL, SWITCHES, SENSORS and ECM - A08LH27AW/AX/AZ (49ATVELECT08SP400) Diagram

Rectifier/Regulator

4011182

$324.35

SWITCH, ROTARY, 6 PIN

3233835

$142.49

SCREW

7512024

$4.76

KEY SWITCH KEY COVER

5433534

$13.75

Switch, Key [Incl. 4,14][Built 11/01/07 and After] NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4012165

$109.27

Switch, Key [Incl. 4,14][Built 10/31/07 and Before] NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4011002

$109.27

Switch, Key [Incl. 4,14][Built 11/01/07 and After] NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4012165

$109.27

Switch, Key [Incl. 4,14][Built 10/31/07 and Before] NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4011002

$109.27

Washer, Wave

7555735

$3.97

SWITCH

4110164

$204.24

Plug

5432952

$6.46

SCREW, SET

7517625

$4.76

Switch, Handlebar, LH, On/Off

4011655

$97.13

O-RING

3234302

$7.27

Sensor, Speed

3234299

$109.27

Screw

3234311

$1.19

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81
