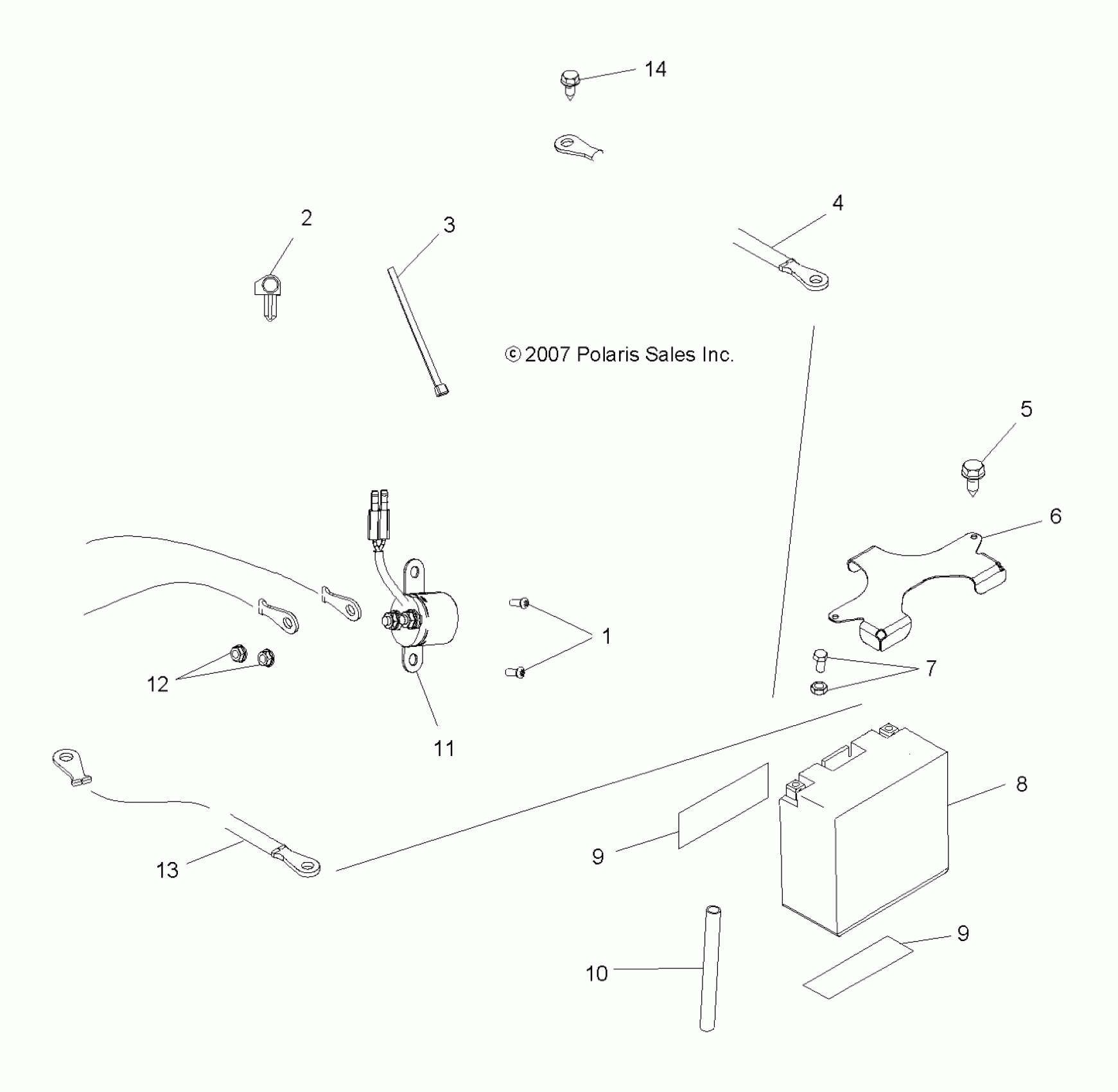

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ ELECTRICAL, BATTERY - A08LH27AW/AX/AZ (49ATVBATTERY08SP300) Diagram

#

Description
Price

1

SCREW

7512024

$4.79

2

Clip

7670102

$2.39

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

Cable, Black, Battery/Frame

4011233

$28.32

5

SCREW

7518238

$3.99

6

Bracket, Battery Hold Down, Black

5250157-067

$109.99

7

Kit, Battery Bolt

2200361

$3.99

8

Battery

4011359

Unavailable

9

PAD-BATTERY

5810290

$7.27

9

PAD-BATTERY

5810290

$7.27

10

Tube, Vent

5433156

$1.67

11

SOLENOID, STARTER

4012013

$75.99

12

NUT, FLANGE

7547270

$3.99

13

Cable, Red ,Battery/Solenoid

4011287

$39.99

14

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
