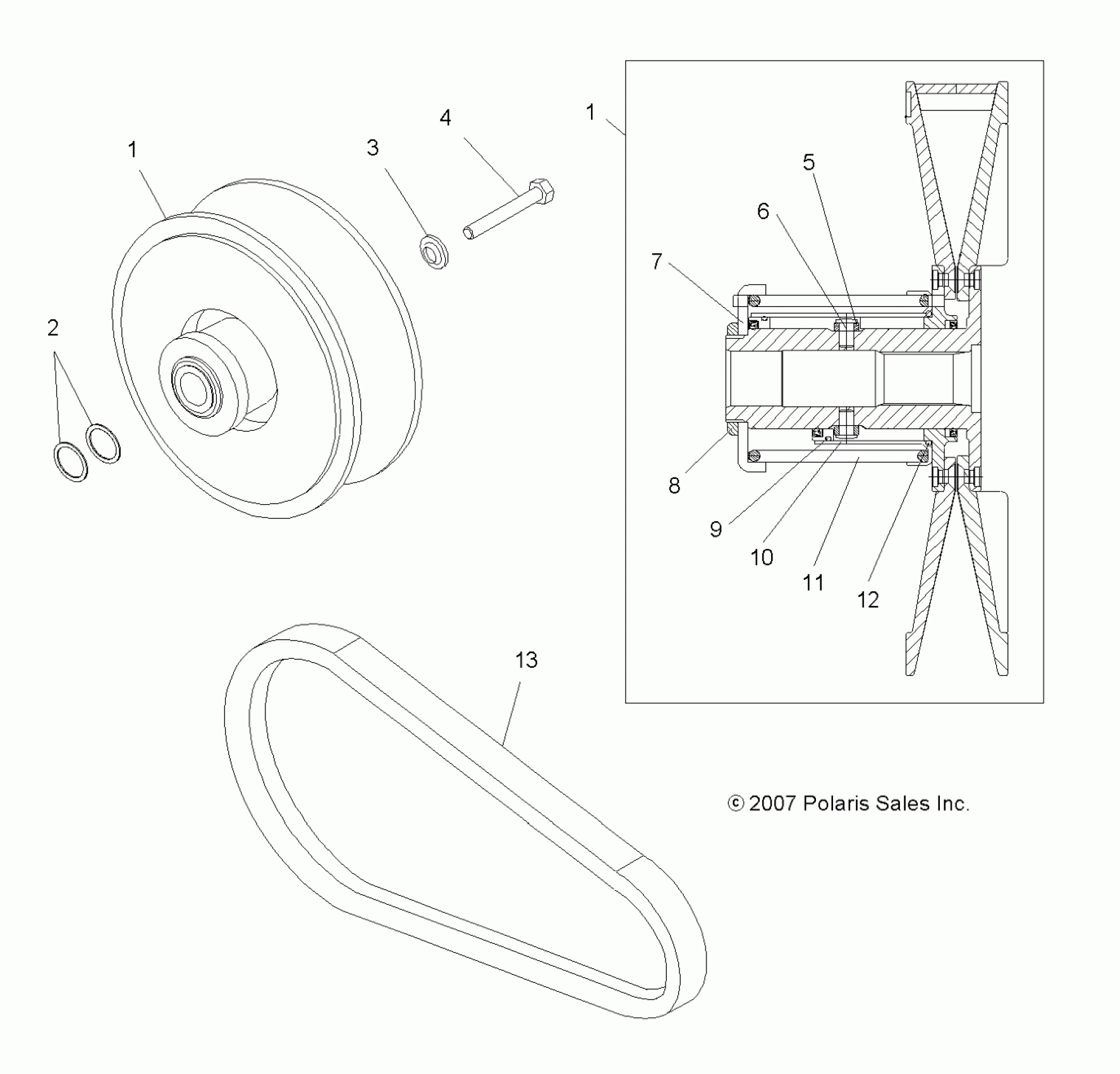

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ DRIVE TRAIN, SECONDARY CLUTCH - A08LH27AW/AX/AZ (49ATVCLUTCHDRIVEN08SP300) Diagram

#

Description
Price

1

Asm., Driven Clutch [Incl 3-12]

1322635

$375.99

1

Asm., Driven Clutch [Incl 3-12]

1322635

$375.99

2

BUSHING

7556120

$1.49

3

Washer, Domed

5220646

$2.39

4

Screw

7518471

$3.99

5

Ring, Roller

7661888

Unavailable

6

Pin, Roller

5334962

$4.79

7

Seat, Spring

5249799

$35.51

8

Nut

7547331

Unavailable

9

O-Ring

5412972

$2.95

10

Sleeve, Spring

5249798

$9.91

11

Spring

7043212

$48.56

12

O-Ring

5412971

$2.79

13

Belt, Drive, Midsize [Built 12/07/07 and Before]

3211108

Unavailable

13

Belt, Drive, Midsize [Built 3/02/08 and After]

3211131

Unavailable

13

Belt, Drive, Midsize [Built Between 12/08/07 and 3/01/08]

3211129

$65.63
