- SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ
DRIVE TRAIN, MAIN GEARCASE INTERNALS - A08LH27AW/AX/AZ (49ATVTRANSINTL08SP300)

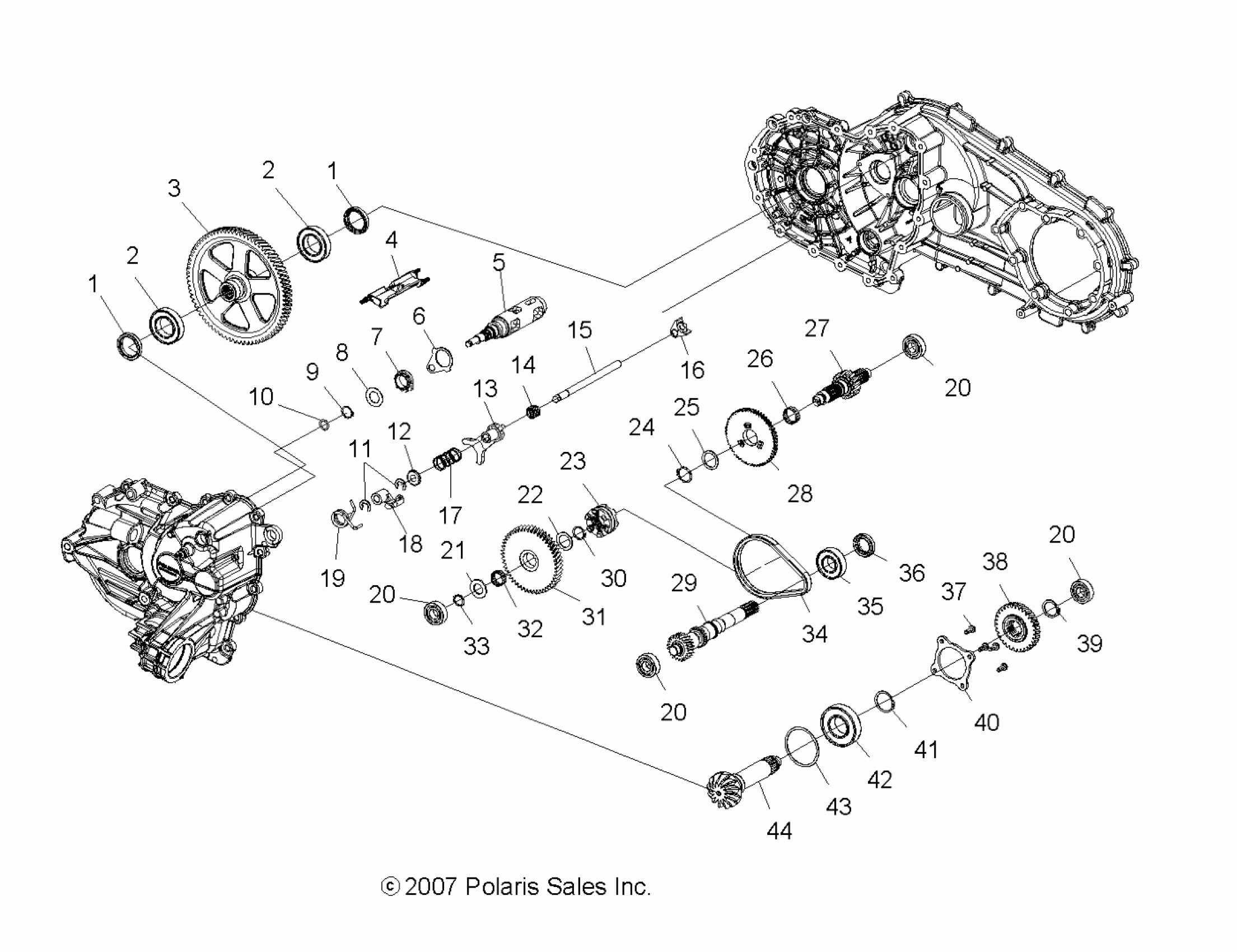

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ DRIVE TRAIN, MAIN GEARCASE INTERNALS - A08LH27AW/AX/AZ (49ATVTRANSINTL08SP300) Diagram
#
-
Asm., Transmission, 4x4 [Incl. All][AW][AX, AZ Built 11/06/07 and After]
1332682
Unavailable
-
Asm., Transmission, 4x4 [Incl. All][AX,AZ Built 11/05/07 and Before]
1332631
$829.37
1
Seal
3234307
$15.99
1
Seal
3234307
$15.99
2
BEARING-BALL 6007 C3 35 X 62 X 14
3233265
$39.99
2
BEARING-BALL 6007 C3 35 X 62 X 14
3233265
$39.99
3
Subasm., Gear, 77T [Incl. 2]
1332915
$196.79
4
Trough, Oil
3234254
$10.71
5
Drum, Shift
3234341
Unavailable
6
Spacer
3234337
$4.00
7
Star, Detent
3234250
$10.71
8
Washer, Thrust
3234314
$10.63
9
Ring, Retaining
3234335
$10.63
10
O-RING
3234302
$7.19
11
RING, RETAINING
3233834
$10.39
12
WASHER-CUP
3234091
$9.59
13
Fork, Shift
3234328
$37.11
14
SPRING, COMPRESSION
3234089
$23.99
15
Rail, Shift Shaft
3234606
$20.63
16
COLLAR-SHIFT
3234073
$31.99
17
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
$19.99
18
Pawl, Detent
3234251
Unavailable
19
Spring, Torsion
3234607
$4.15
20
BEARING, BALL
3234274
$27.99
20
BEARING, BALL
3234274
$27.99
20
BEARING, BALL
3234274
$27.99
20
BEARING, BALL
3234274
$27.99
21
Washer, Thrust
3234319
Unavailable
22
WASHER
3233855
$10.39
23
Engagement Dog
3234258
$91.99
24
RING, RETAINING
3233306
$4.79
25
WASHER, THRUST
3234248
$9.59
26
BEARING, NEEDLE
3233103
$31.99
27
Shaft, Reverse, 15T
3234323
Unavailable
28
Sprocket, 52T
3234332
$121.41
29
Shaft, Input, 17T
3234357
Unavailable
30
RING, RETAINING
3234336
$5.59
31
Gear, 50T
3234320
Unavailable
32
BEARING, NEEDLE
3233718
$35.99
33
RING, RETAINING
3234318
$3.19
34
Chain
3234321
$128.87
35
Bearing
3234419
$39.99
36
Seal, Triple Lip
3234322
$32.37
37
SCREW
3234309
$7.19
38
Gear, 31T
3234334
Unavailable
39
RING, RETAINING BASIC, EXTERNA
3234327
$7.19
40
Cover, Bearing
3234063
$27.99
41
RING, RETAINING
3234336
$5.59
42
BEARING,BALL 6207 C3 35X72X17
3234065
$47.99
43
Shim
3234326
$7.38
44
Pinion, 13T
3234325
$152.37
