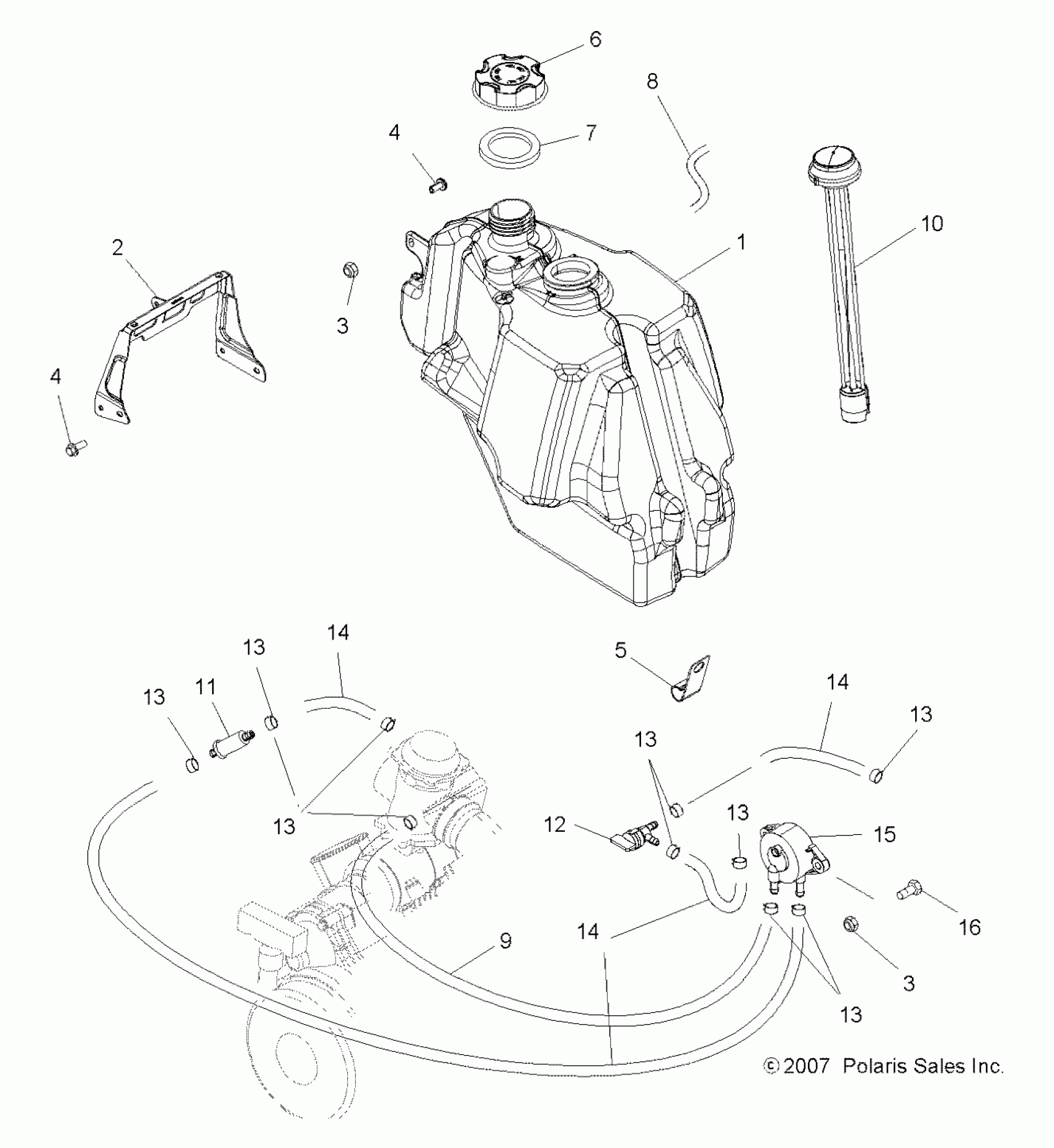

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ BODY, FUEL TANK (BUILT 11/06/07 and AFTER) - A08LH27AW/AX/AZ (49ATVFUEL0808HAWKINTL) Diagram

#

Description
Price

1

Asm., Fuel Tank [Incl. 10]

2520804

Unavailable

2

Bracket, Fuel Tank, Black

1016190-067

Unavailable

3

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

3

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

4

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

4

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

5

J-Clip

7080884

$3.99

6

Cap, Gas Tank

5433687

$20.22

7

GASKET

5812123

$5.65

8

LINE, FUEL

8360009-600

Unavailable

9

Line, Fuel

8450040-600

Unavailable

10

Gauge, Fuel, Threaded

-------

Unavailable

11

FILTER

2530009

$5.65

12

Valve, 90 Degrees

7052249

$24.27

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

14

HOSE, FUEL

8450117-250

Unavailable

14

HOSE, FUEL

8450117-250

Unavailable

14

HOSE, FUEL

8450117-250

Unavailable

15

Pump, Fuel

3089760

Unavailable

16

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59
