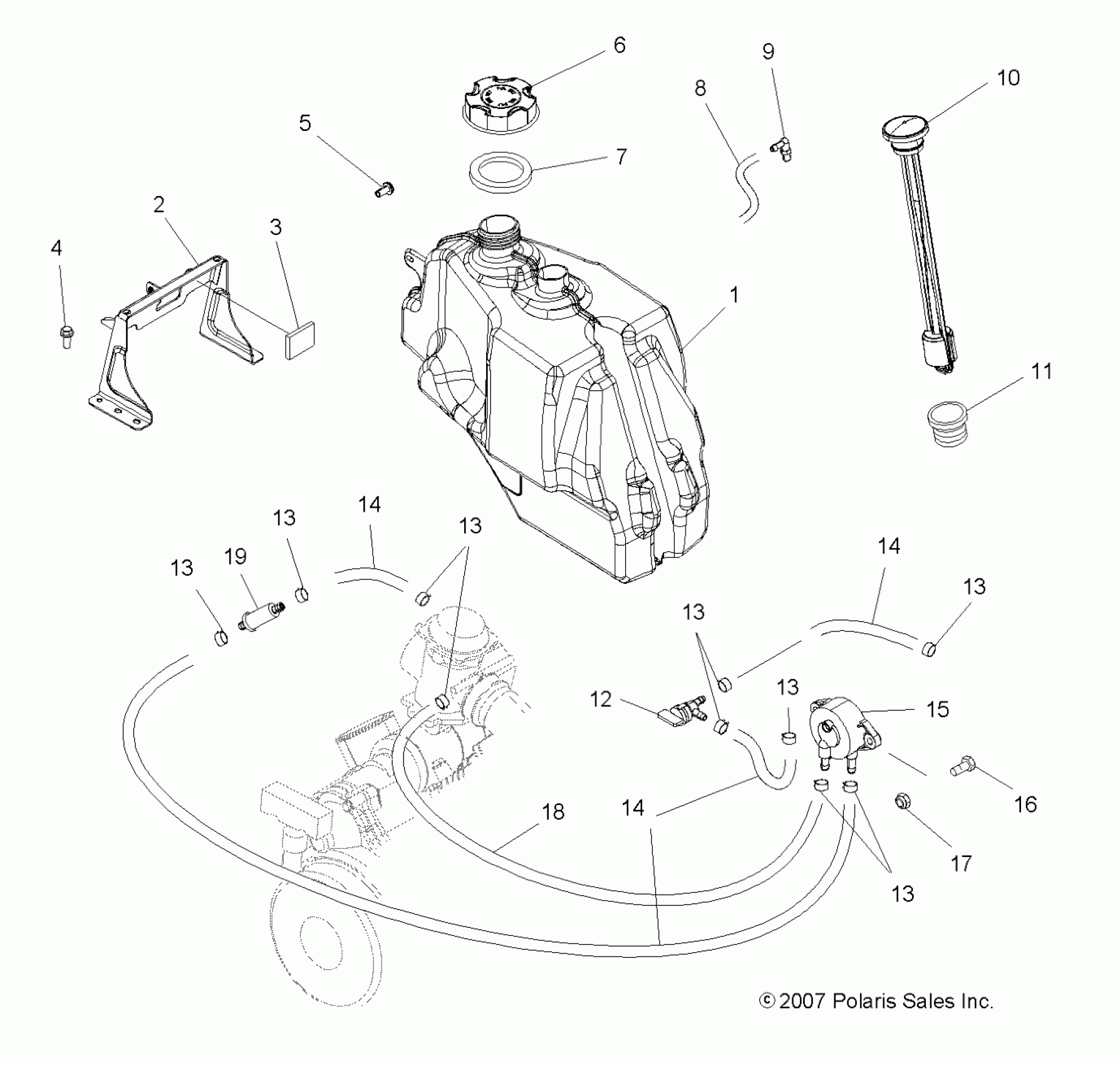

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ BODY, FUEL TANK (BUILT 11/05/07 and BEFORE) - A08LH27AX/AZ (49ATVFUEL08SP300B) Diagram

#

Description
Price

1

Asm., Fuel Tank, Remote Gauge [Incl. 9,10,11]

2520718

Unavailable

2

Bracket, Fuel Tank, Black

1015349-067

Unavailable

3

Pad, Fuel Filter

5812996

$8.99

4

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

5

Screw

7518196

$1.49

6

Cap, Gas Tank

5433687

$20.22

7

GASKET

5812123

$5.65

8

LINE, FUEL

8360009-600

Unavailable

9

Vent

5431053

$19.99

10

Gauge, Fuel, Remote

3280491

$39.99

11

Grommet

5413089

$23.99

12

Valve, 90 Degrees

7052249

$24.27

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

14

HOSE, FUEL

8450117-250

Unavailable

14

HOSE, FUEL

8450117-250

Unavailable

14

HOSE, FUEL

8450117-250

Unavailable

15

Fuel Pump

3089760

Unavailable

16

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

Line, Fuel

8450040-600

Unavailable

19

FILTER

2530009

$5.65
