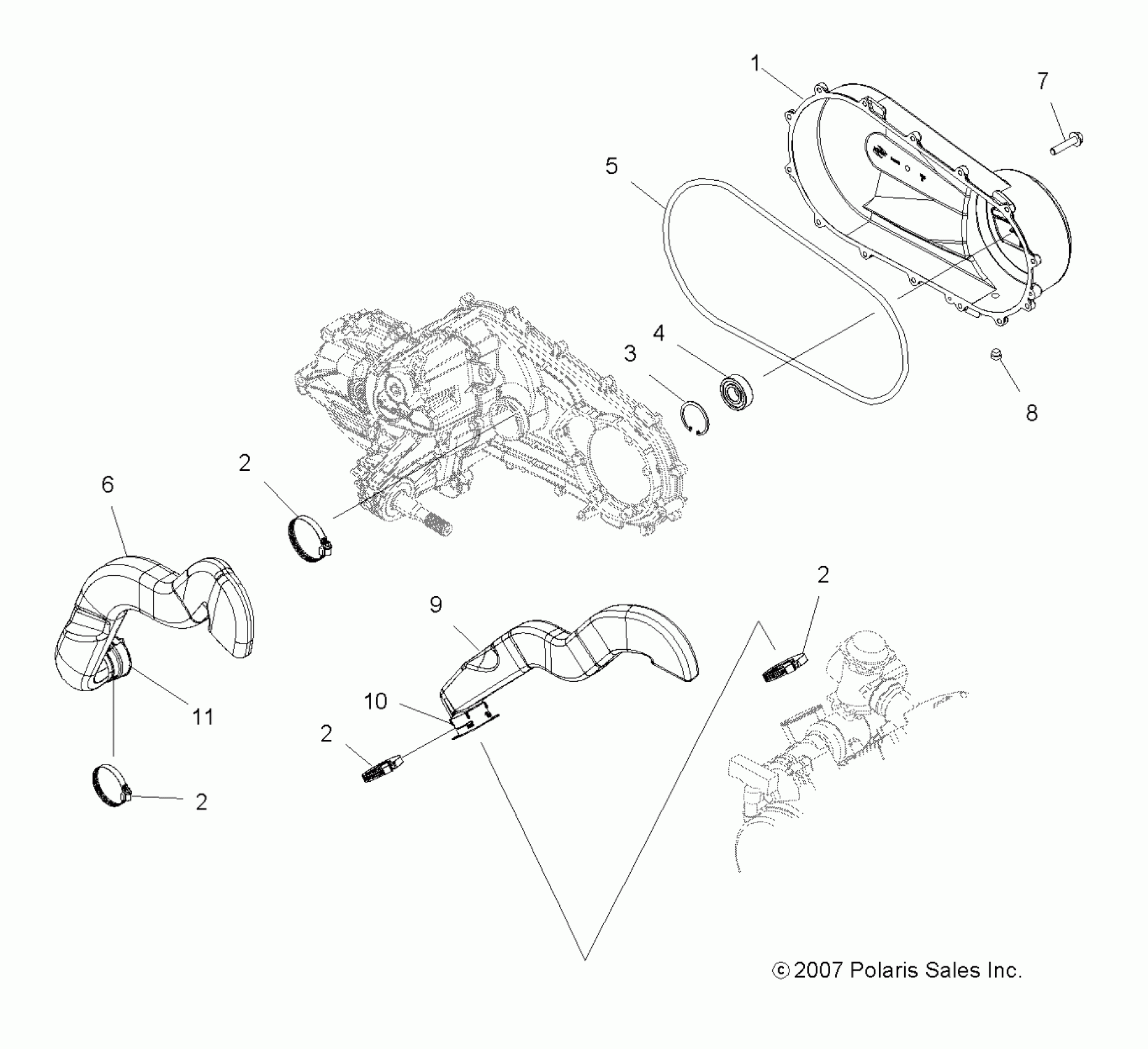

Polaris SPORTSMAN 300 4X4 - A08LH27AW/AX/AZ BODY, CLUTCH COVER - A08LH27AW/AX/AZ (49ATVCLUTCHCVR08SP300) Diagram

#

Description

Price

1

Asm., Cover, Clutch [Incl. 3,4,8]

2633640

Unavailable

2

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

2

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

2

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

2

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

3

Ring, Retaining

3234344

Unavailable

4

Bearing, Ball

3234343

$18.99

5

Seal

5812952

Unavailable

6

Duct, Outlet w/Boot [Incl. 11]

5436286

Unavailable

7

Screw

7516823

$3.17

8

Plug, Drain

3234345

$9.70

9

Duct, Inlet w/ Boot [Incl. 10][Built 1/28/08 and Before]

5436285

Unavailable

9

Duct, Inlet w/ Boot [Incl. 10][Built 1/29/08 and After]

5437592

Unavailable

10

Boot, Inlet Duct

5412820

Unavailable

11

Boot, Outlet Duct

5412821

Unavailable
