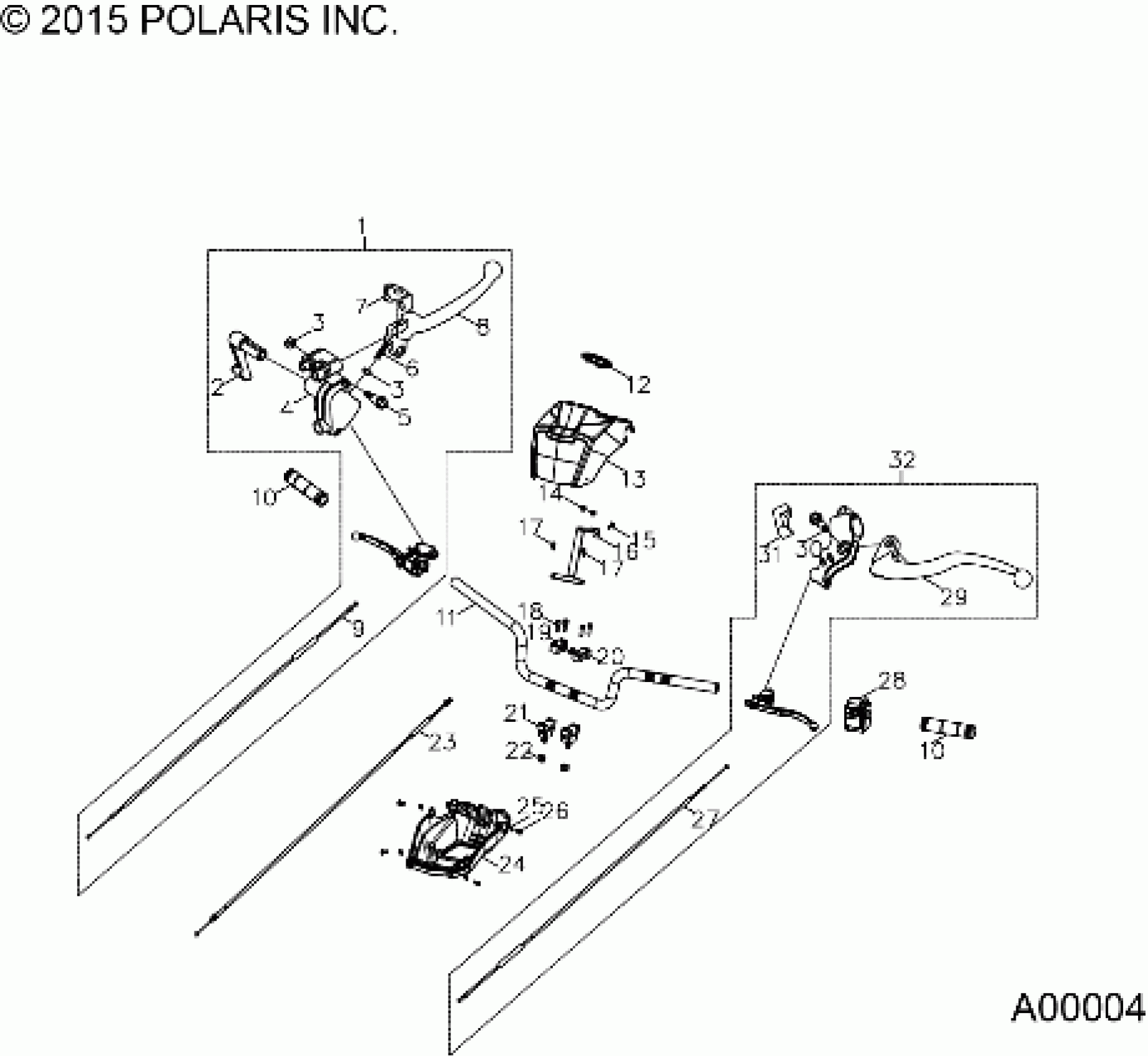

Polaris SPORTSMAN 110 (R10) - A16YAF11AA STEERING, HANDLEBAR - A16YAF11AA (A00004) Diagram

#

Description
Price

1

ASM., LEVER, RH [INCL. 2-9]

0455178

Unavailable

2

ARM, THROTTLE

0452202

$23.99

3

NUT

0450808

$2.39

3

NUT

0450808

$2.39

4

MOUNT, LEVER, BRAKE, RH

0453721

$135.99

5

BOLT, BRAKE LEVER, RH

0450806

$2.39

6

BOLT

0451788

Unavailable

7

BRACKET, BRAKE CABLE

0450994

$31.99

8

LEVER, BRAKE, SIDE

0450694

$27.99

9

WIRE, BRAKE SWITCH

0453736

$43.99

10

GRIP, HANDGRIP

0453370

$23.99

10

GRIP, HANDGRIP

0453370

$23.99

11

HANDLEBAR, BLACK

0453722-067

$67.99

12

BEZEL, SPEEDOMETER

0454672

$35.99

13

POD, UPPER, GREEN

0455160-498

$75.99

14

SCREW

0452421

$3.99

15

SCREW

0450614

$4.79

16

TRIM-HBAR POD BRACKET

0455399

$4.79

16

BRKT-MOUND,POD,BLK W/TRIM

0455329

$39.99

16

TRIM-HBAR POD BRACKT

0455398

$6.39

17

SCREW

0450040

$3.19

17

SCREW

0450040

$3.19

18

BOLT

0450148

$3.99

19

COVER, CLAMP, RH

0450461

$27.99

20

COVER, CLAMP, LH

0450460

$35.99

21

CLAMP, SADDLE

0450459

$39.99

22

NUT

0450276

$3.99

23

CABLE, THROTTLE

0455149

$67.99

24

POD, LOWER, BLACK

0453347-070

Unavailable

25

U-NUT, PLATE

0450752

$2.39

26

SCREW

0450514

$1.59

27

SENSOR, BRAKE

0453815

$43.99

28

ASM., SWITCH, LH [INCL. HDWR]

0455150

Unavailable

28

BOLT

0453708

$3.99

28

BOLT

0451148

$3.19

28

BOLT

0451149

$3.99

29

LEVER, BRAKE, SIDE, BLACK

0450693

$27.99

30

BOLT

0450807

$7.19

31

LOCK, HAND BRAKE

0454042

$14.39

32

ASM., LEVER, BRAKE, LH [INCL. 27,29-31]

0454043

$59.99
