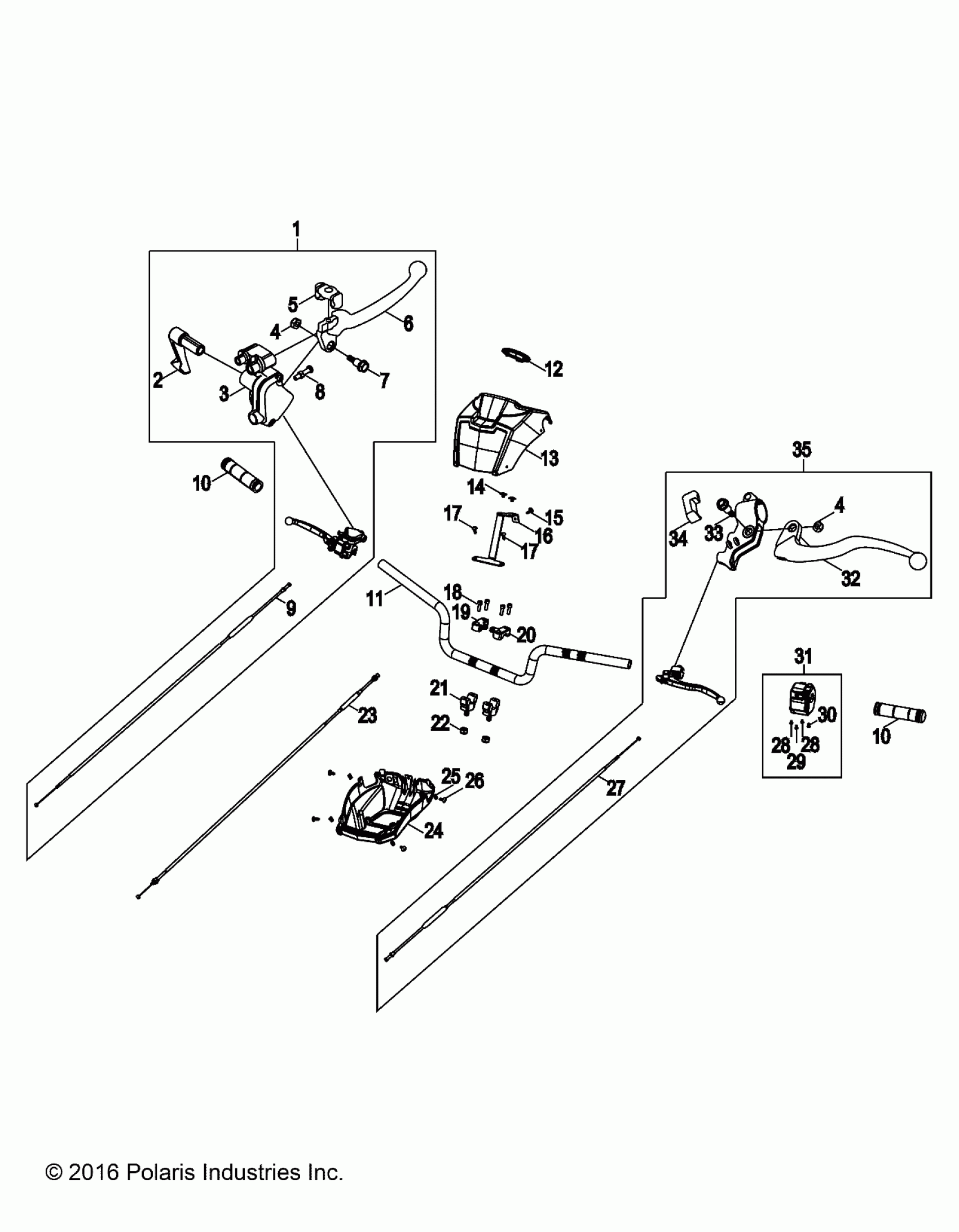

Polaris SPORTSMAN 110 R01 - A26YFA11B5 STEERING, HANDLEBAR - A26YFA11B5 (A00052) Diagram

#

Description
Price

1

ASM-LEVER,RH,110 [INCL. 2-9]

0455234

$139.99

2

ARM, THROTTLE

0452202

$23.99

3

MOUNT, LEVER, BRAKE, RH

0453721

$135.99

4

NUT, LOCK

0450808

$2.39

4

NUT, LOCK

0450808

$2.39

5

BRACKET, BRAKE CABLE

0450994

$31.99

6

LEVER, BRAKE, SIDE

0450694

$27.99

7

BOLT, BRAKE LEVER, RH

0450806

$2.39

8

SCR W/JAM NUT THROTTLE STOP

0455403

$3.19

9

CABLE, BRAKE SWITCH

0453736

$43.99

10

GRIP, HANDLEBAR

0453370

$23.99

10

GRIP, HANDLEBAR

0453370

$23.99

11

HANDLEBAR, BLACK

0453722-067

$67.99

12

BEZEL, SPEEDOMETER

0454672

$35.99

13

POD, UPPER, SPMN 110, BLUE

0455160-689

$67.99

14

SCREW

0452421

$3.99

15

SCREW

0450614

$4.79

16

TRIM-HBAR POD BRACKET

0455399

$4.79

16

BRKT-MOUND,POD,BLK W/TRIM

0455329

$39.99

16

TRIM-HBAR POD BRACKT

0455398

$6.39

17

Screw, Tapping

0450040

$3.19

17

Screw, Tapping

0450040

$3.19

18

Screw, Socket, Hex

0450148

$3.99

19

COVER, CLAMP, RH

0450461

$27.99

20

COVER, CLAMP, LH

0450460

$35.99

21

CLAMP, SADDLE

0450459

$39.99

22

NUT, LOCK

0450276

$3.99

23

CABLE, THROTTLE

0455149

$67.99

24

COVER,HANDLEBAR,LWR

0455247-070

$39.99

25

U-NUT, PLATE

0450752

$2.39

26

Screw, Tapping

0450514

$1.59

27

CABLE, SENSOR, BRAKE

0453815

$43.99

28

SCREW

0451148

$3.19

28

SCREW

0451148

$3.19

29

BOLT

0451149

$3.99

30

BOLT

0453708

$3.99

31

ASM., SWITCH, LH, 110 [INCL. 28-30]

0455499

$75.99

32

LEVER, BRAKE, SIDE, BLACK

0450693

$27.99

33

Bolt, Brake Lever, LH

0450807

$7.19

34

LOCK, HAND BRAKE

0454042

$14.39

35

ASM., LEVER, BRAKE, LH [INCL. 4, 27,32-34]

0454043

$59.99
