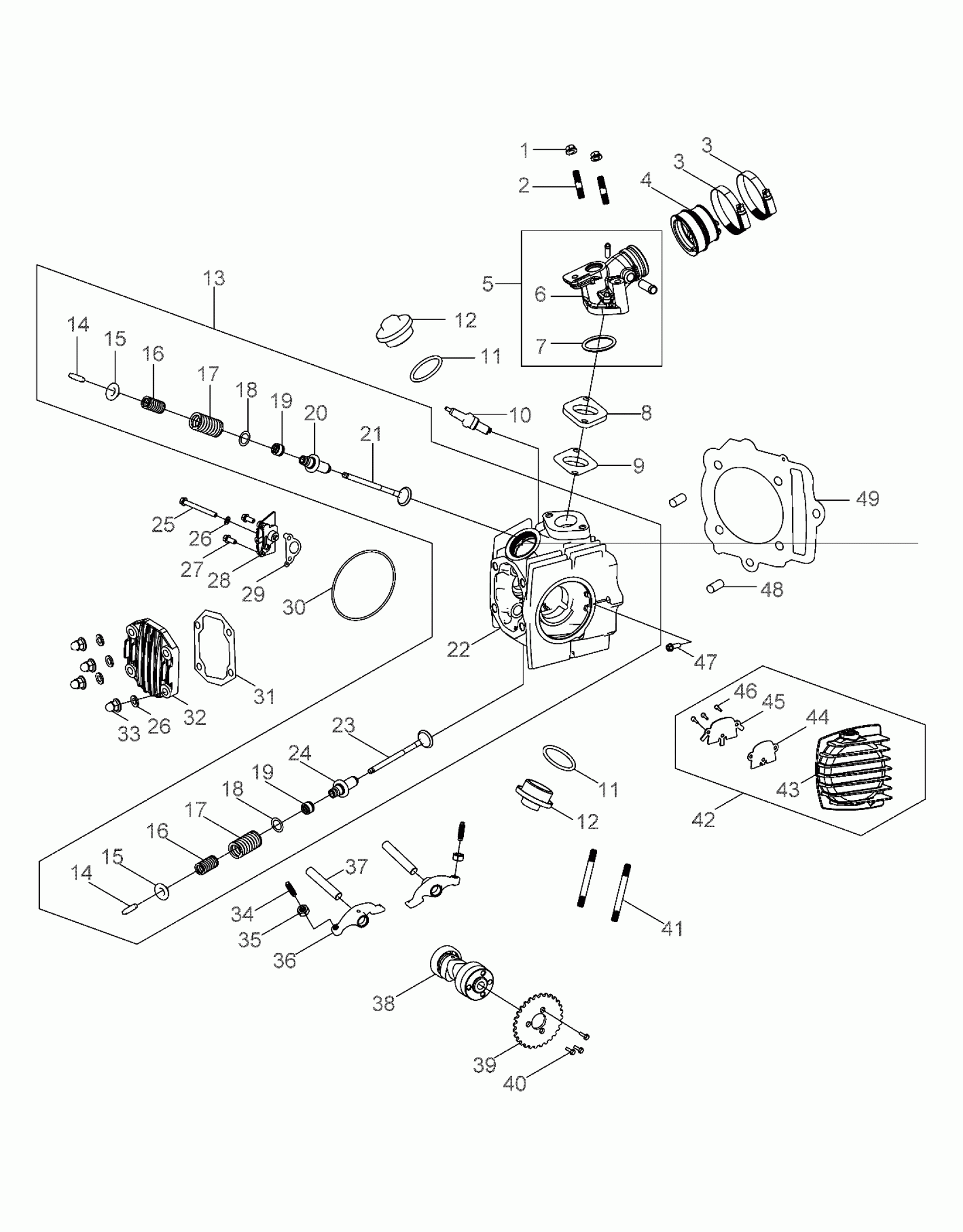

Polaris SPORTSMAN 110 R01 - A26YFA11B5 ENGINE, CYLINDER HEAD - A26YAF11B5 (A00037) Diagram

#

Description
Price

-

ASM., ENGINE

0455106

$2,399.99

1

NUT, FLANGE, HEX

0450880

$3.97

2

BOLT, STUD

0454524

$7.14

3

CLAMP, HOSE

0454512

$7.14

3

CLAMP, HOSE

0454512

$7.14

4

Adapter, Carburetor

0455100

$33.87

5

Asm., Manifold, Intake [INCL. 6,7]

0455101

$74.99

6

MANIFOLD

----

Unavailable

7

O-RING

0453563

$1.60

8

INSULATOR, MANIFOLD

0453449

$12.94

9

GASKET, MANIFOLD

0453451

$5.65

10

PLUG, SPARK

0453034

$3.97

11

O-RING, DRAIN PLUG

0452371

$1.99

11

O-RING, DRAIN PLUG

0452371

$1.99

12

Cover, Cylinder

0453537

$36.41

12

Cover, Cylinder

0453537

$36.41

13

ASM., HEAD, CYLINDER [INCL. 14-24]

0455102

$399.99

14

CLIP, RETAINER

0452389

$8.54

14

CLIP, RETAINER

0452389

$8.54

15

Retainer, Valve, Spring

0453443

$29.99

15

Retainer, Valve, Spring

0453443

$29.99

16

Spring, Valve, Inner

0453442

$9.70

16

Spring, Valve, Inner

0453442

$9.70

17

SPRING, VALVE, OUTER

0453441

$9.70

17

SPRING, VALVE, OUTER

0453441

$9.70

18

Seat, Valve, Spring, Outer

0453444

$7.27

18

Seat, Valve, Spring, Outer

0453444

$7.27

19

SEAL, VALVE

0453426

$13.75

19

SEAL, VALVE

0453426

$13.75

20

Guide, Valve Intake

0453575

Unavailable

21

Valve, Intake

0453439

$64.99

22

Head, Cylinder

----

Unavailable

23

VALVE, EXHAUST

0453440

$69.99

24

GUIDE, VALVE, EXHAUST

0453576

$17.09

25

BOLT

0453723

$5.56

26

Washer

0453510

$3.97

26

Washer

0453510

$3.97

27

BOLT

0453519

$3.97

28

COVER, CYLINDER HEAD, RH

0455103

$36.41

29

GASKET-COVER,CYL HEAD,RH

0455479

$4.84

30

GASKET-COVER,CYL HEAD,LH

0455480

$4.84

31

GASKET-COVER,CYLINDER HEAD

0455478

$8.08

32

COVER, CYLINDER HEAD

0453534

$40.46

33

Nut

0453553

$4.76

34

SCREW, TAPPET, ADJUST

0452423

$12.99

35

NUT, TAPPET, ADJUST

0452424

$4.99

36

ARM, VALVE, RACKER

0453434

$111.10

37

SHAFT, INTAKE, ROCKER ARM

0453435

$14.56

38

ASM., CAM SHAFT

0455104

$194.99

39

Sprocket, Cam Shaft

0453583

$32.37

40

BOLT

0453584

$4.76

41

STUD

0453504

$4.76

42

ASM-COVER,CYLINDER HEAD,SM,LH [INCL. 43-46]

0455402

$60.70

43

Cover, Cylinder Head, Small, LH

0453579

$44.51

44

GASKET-CYLINDER,DIVIDE PLATE

0455481

$13.75

45

BREATHER, CRANKCASE, LOWER

0453581

$4.84

46

SCREW, TAPPING

0451766

$3.17

47

Bolt

0453520

$3.97

48

PIN, DOWEL

0452342

$3.97

49

Gasket-Cylinder Head

0455380

$32.37
