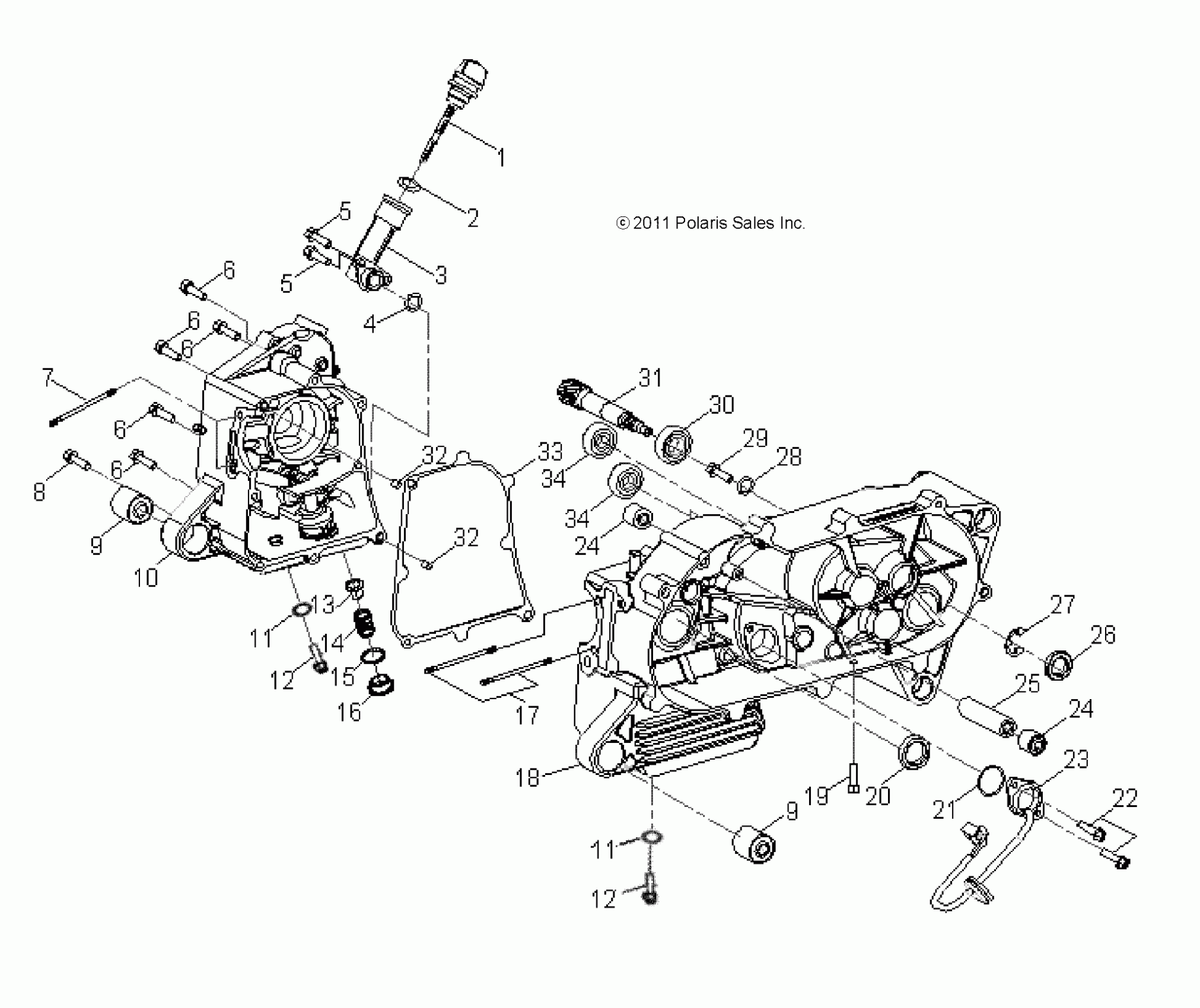

Polaris SPORTSMAN 110 R01 - A26YFA11B5 ENGINE, CRANKCASE - A26YFA11B5 (49ATVCRANKCASE12SP90) Diagram

#

Description
Price

-

ASM-ENGINE,110

0455394

$1,940.39

1

DIPSTICK, OIL [INCL. 2]

0453542

$23.99

2

O-RING

0455117

$3.19

3

NECK, OIL FILLER

0453611

$51.99

4

O-RING

0453827

$1.99

5

BOLT

0453519

$3.99

5

BOLT

0453519

$3.99

6

BOLT

0453612

$3.99

6

BOLT

0453612

$3.99

6

BOLT

0453612

$3.99

6

BOLT

0453612

$3.99

6

BOLT

0453612

$3.99

7

STUD

0453613

$9.59

8

BOLT

0453614

$3.99

9

BUSHING, RUBBER

0455172

$12.79

9

BUSHING, RUBBER

0455172

$12.79

10

CRANKCASE, RH, 110

0455118

$183.99

11

WASHER, FLAT

0452133

$3.99

11

WASHER, FLAT

0452133

$3.99

12

BOLT, DRAIN PLUG

0452132

$4.79

12

BOLT, DRAIN PLUG

0452132

$4.79

13

SCREEN, OIL

0452369

$12.79

14

SPRING, OIL SCREEN

0452370

$12.79

15

O-RING, DRAIN PLUG

0452371

$1.59

16

Plug, Drain, Oil

0452368

$23.99

17

STUD

0453616

$9.59

18

CRANKCASE, LH, 110

0455120

$399.99

19

Bolt, Hex, Washer Face

0450325

Unavailable

20

SEAL, OIL

0453522

$27.99

21

O-RING, GEAR POSITION SENSOR

0452129

$1.59

22

Bolt, Hex, Flange

0452138

$3.19

23

SENSOR, GEAR POSITION

0455508

$27.99

24

BUSHING, RUBBER

0455173

$8.79

24

BUSHING, RUBBER

0455173

$8.79

25

SPACER, COLLAR

0453617

$12.79

26

Seal, Oil

0450200

$11.99

27

Circlip, External

0450198

$4.79

28

WASHER, FLAT

0453460

$4.79

29

Bolt, Socket, Hex

0450158

$5.59

30

BEARING

0450199

$31.99

31

SHAFT, DRIVE

0453456

$83.99

32

PIN, DOWEL

0452342

$3.99

32

PIN, DOWEL

0452342

$3.99

33

GASKET-COVER,TRANSMISSION

0455330

Unavailable

34

Bearing, Needle

0450254

$23.99

34

Bearing, Needle

0450254

$23.99
