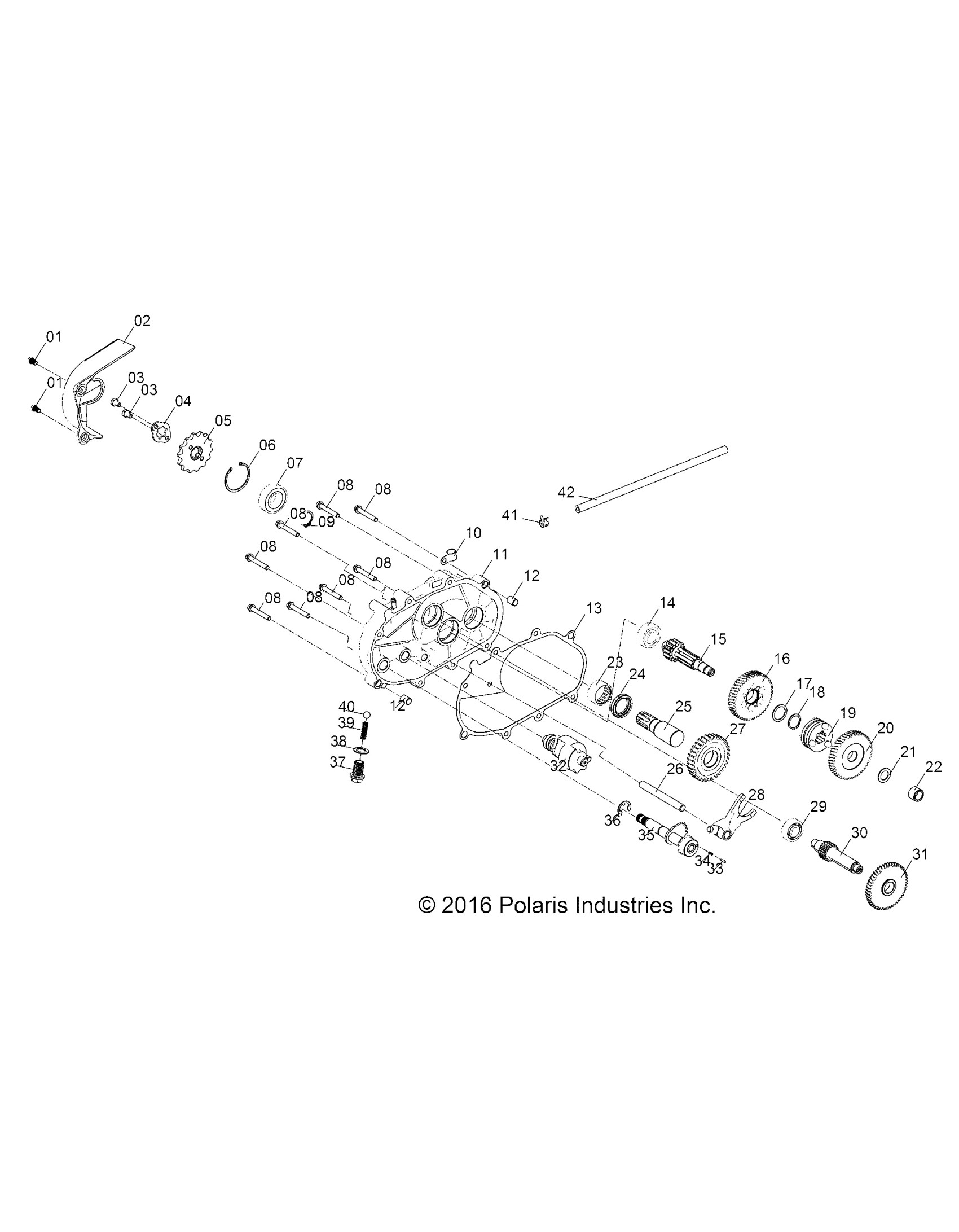

Polaris SPORTSMAN 110 R01 - A26YFA11B5 DRIVE TRAIN, TRANSMISSION - A26YFA11B5 (A00057) Diagram

#

Description
Price

1

SCREW,CHAIN PROTECTOR

0455440

$3.19

1

SCREW,CHAIN PROTECTOR

0455440

$3.19

2

ASM., SPROCKET COVER

0453650

$47.99

3

BOLT

0453505

$3.99

3

BOLT

0453505

$3.99

4

BRACKET, SPROCKET

0453458

$10.39

5

SPROCKET, DRIVE

0453457

$35.99

6

Ring, Snap, Internal

0450162

$5.59

7

BEARING, BALL

0454248

$31.99

8

BOLT, FLANGE

0452331

$3.99

8

BOLT, FLANGE

0452331

$3.99

8

BOLT, FLANGE

0452331

$3.99

8

BOLT, FLANGE

0452331

$3.99

8

BOLT, FLANGE

0452331

$3.99

8

BOLT, FLANGE

0452331

$3.99

8

BOLT, FLANGE

0452331

$3.99

8

BOLT, FLANGE

0452331

$3.99

9

CLIP, RETAINER

0452339

$3.99

10

RETAINER-BREATHER TUBE

0455235

$6.39

11

ASM., TRANSMISSION COVER

0453642

$203.99

12

PIN, DOWEL

0450142

$3.99

12

PIN, DOWEL

0450142

$3.99

13

GASKET-COVER,TRANSMISSION

0455487

$13.59

14

BEARING, MAIN TRANSMISSION SHAFT

0452156

$15.99

15

SHAFT, TRANSMISSION

0453645

$115.99

16

ASM., REVERSE GEAR

0453312

$115.99

17

Washer, Flat

0452152

$3.99

18

Circlip, External

0450060

$3.99

19

RATCHET, SHIFT

0452151

$83.99

20

Bolt w/Spring Washer

0453220

$91.99

21

Washer, Flat

0452148

$3.99

22

Collar, Shaft

0452147

Unavailable

23

BEARING

0450258

$63.99

24

SEAL, OIL

0450259

$6.39

25

SHAFT, DRIVE

0453643

$99.99

26

SHAFT, GEAR SHIFT

0452158

$8.79

27

GEAR

0453644

$99.99

28

FORK, SHIFT

0452157

$59.99

29

Bearing, Needle

0450254

$23.99

30

SHAFT, COUNTER

0452145

$63.99

31

GEAR, COUNTER

0452146

$75.99

32

ASM., DRUM, GEAR SHIFT

0452159

$159.99

33

ROLLER, DRUM SENSOR

0452163

$7.19

34

SPRING, DRUM SENSOR

0452162

$3.99

35

Spindle, Shift

0452160

$63.99

36

E-CLIP

0452161

$3.99

37

Bolt, Hex

0452137

$7.19

38

WASHER, FLAT

0452136

$3.99

39

SPRING, DETENT

0452135

Unavailable

40

BALL, STEEL

0452134

$4.79

41

CLAMP, TRANSM SPRTSMN 110

0455246

$3.99

42

TUBE, BREATHER

0455236

$13.59
