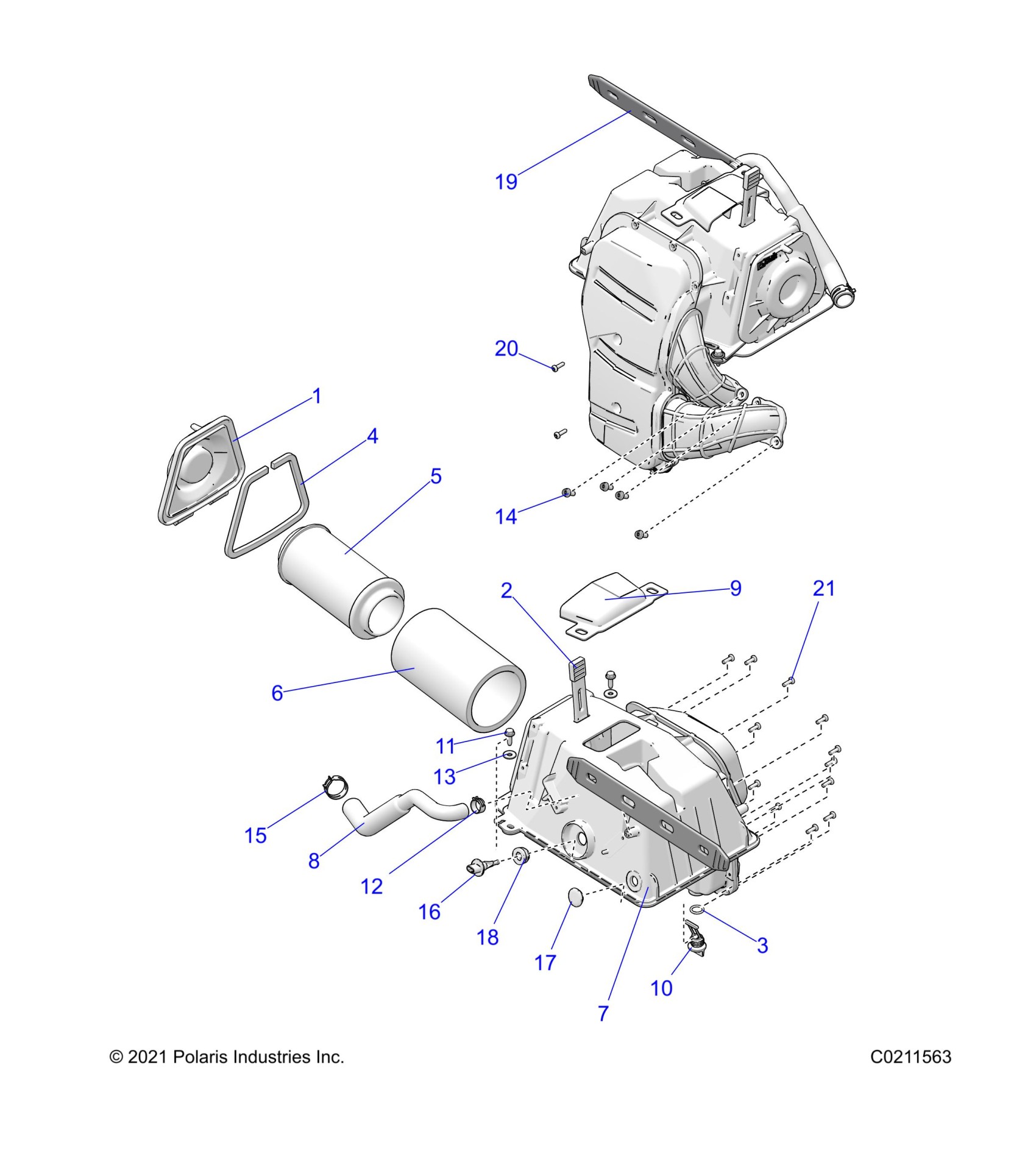

Polaris SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG ENGINE, AIR INTAKE - A26SXR95AG (C0211563) Diagram

Description

Price

COVER, AIRBOX

5438983

$39.99

STRAP-AIRBOX TOP

5433150

$24.27

O-RING

5414246

$1.59

SEAL, AIRBOX COVER

5813359

$6.79

FILTER-AIR INTAKE,HD

7083107

$27.99

FILTER-HD AIR INTAKE, 208MM [HD OPTION]

7083114

$47.99

Filter, Pre-Cleaner, Sleeve

5811633

$11.99

ASM-AIR INTAKE,BOX W/RUNNER

1244936

Unavailable

HOSE, BREATHER, TWIN

5414322

$39.99

HOOD, AIR INTAKE

5416841

$27.99

PLUG, AIR BOX

5451429

$14.39

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

GROMMET, AIR TEMPERATURE SENSOR

5436346

$4.79

CLAMP-HOSE,SPRING .81

7081026

$7.99

WASHER-FL .281X.750X.062-Y

7555859

$1.49

PLUG-AIR BOX, MUDDER

5415705

$3.19

SCR-SHFL-M6X1.0X25 10.9 ZNC PC

7528343

$2.39

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.19

Sensor, Air Temperature

2410687

$143.99

STRAP, ECU

5414193

$27.99

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99
