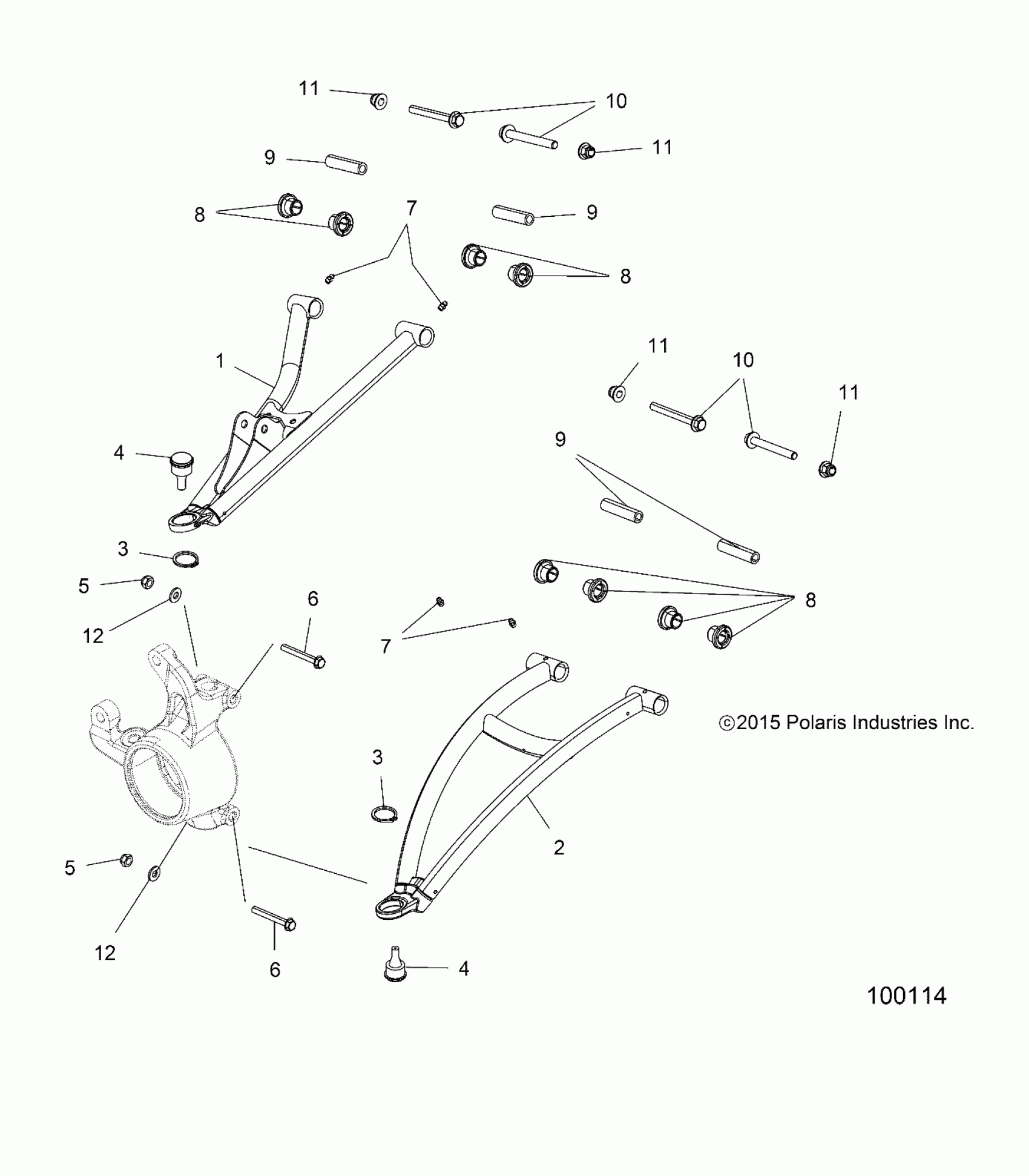

Polaris SPORTSMAN 1000 HIGH LIFTER (R17) - A16SXM95AL SUSPENSION, FRONT A-ARMS - A16SXM95AL Diagram

#

Description
Price

1

WELD-UCA,FRONT,LH,ORGANGE BURST

1019808-647

$138.08

1

WELD-UCA,FRONT,RH,ORGANGE BURST

1019809-647

$124.27

2

WELD-LCA,FRONT,LH,ORANGE BURST

1021187-647

Unavailable

2

WELD-LCA,FRONT,RH,ORANGE BURST

1021188-647

$154.90

3

RING, RETAINING

7710533

$2.38

3

RING, RETAINING

7710533

$2.38

4

BALL JOINT

7061220

$76.89

4

BALL JOINT

7061220

$76.89

5

NUT, NYLOK

7547405

$1.19

5

NUT, NYLOK

7547405

$1.19

5

NUT, NYLOK

7547405

$1.19

6

SCREW, FLANGE

7519212

$4.76

7

FITTING, LUBRICATING

7080433

$1.19

7

FITTING, LUBRICATING

7080433

$1.19

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

8

BUSHING-STANDARD,ORV

5439874

$2.38

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

9

SHAFT, A-ARM

5137346

$14.56

9

SHAFT, A-ARM

5137346

$14.56

9

SHAFT, A-ARM

5137346

$14.56

10

BOLT, FLANGE

7518466

$4.76

10

BOLT, FLANGE

7518466

$4.76

11

Nut, Flange

7547313

$1.19

11

Nut, Flange

7547313

$1.19

11

Nut, Flange

7547313

$1.19

11

Nut, Flange

7547313

$1.19

12

WASHER

7556557

$1.19

12

WASHER

7556557

$1.19
