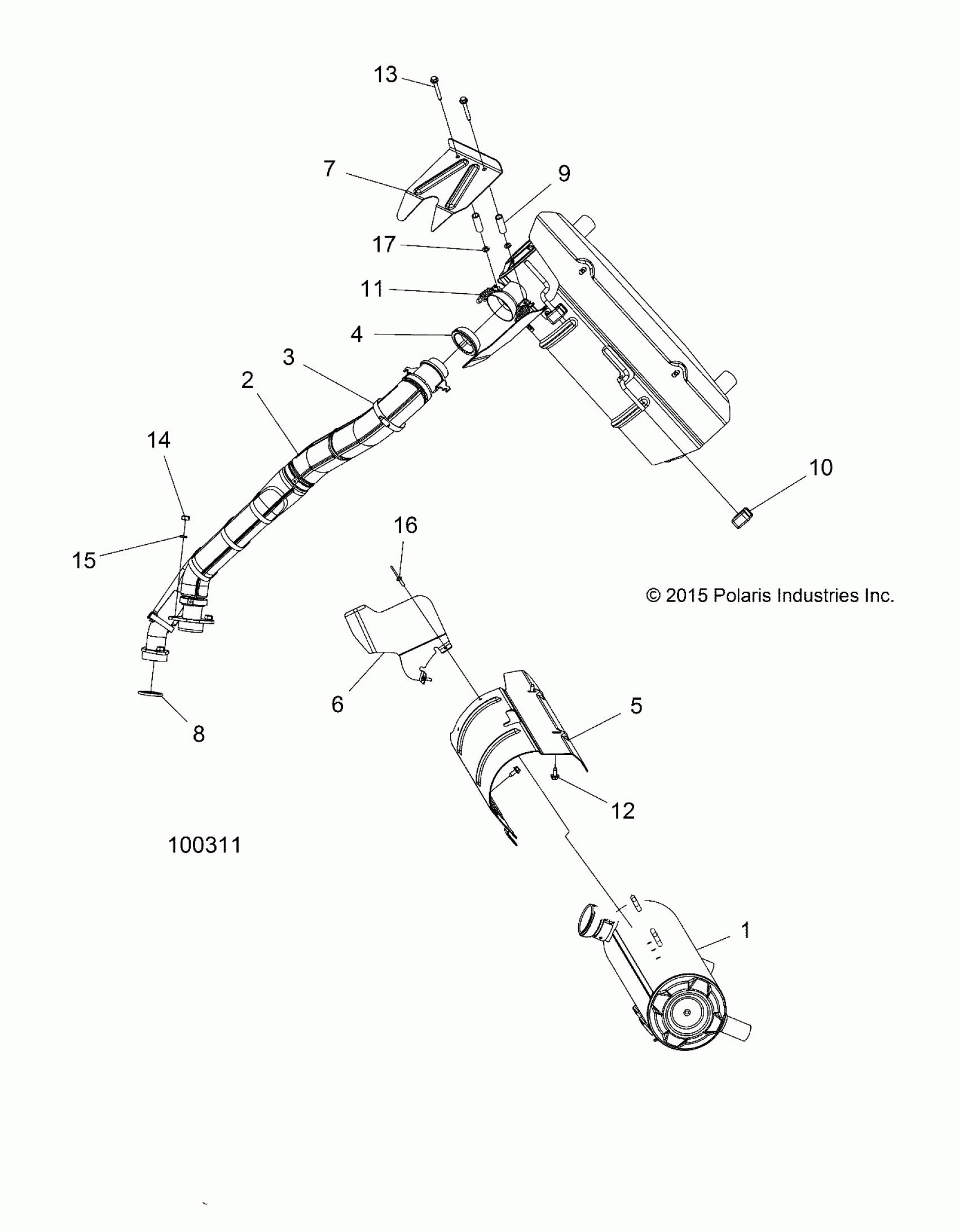

Polaris SPORTSMAN 1000 HIGH LIFTER (R17) - A16SXM95AL ENGINE, EXHAUST - A16SXM95AL Diagram

#

Description

Price

1

WELD-EXHAUST SILENCER,BLK [DOES NOT INCLUDE SHIELD]

1262231-489

Unavailable

2

ASM-EXHAUST PIPE,TWIN [INCLUDES SHIELDS, 3]

1262820

Unavailable

3

CLAMP-WORM DRIVE,.44WX2.75 DIA

7080809

Unavailable

4

SEAL-EXHAUST

3610179

Unavailable

5

SHIELD-BOX,STORAGE

5252266

Unavailable

6

SHIELD-EXHAUST

5252515

Unavailable

7

SHIELD-EXHAUST SPRING

5253865

Unavailable

8

GASKET-EXHAUST SEALING,46.50

5257995

Unavailable

9

SPACER-EXHAUST SHIELD SPRING

5336190

Unavailable

10

GROMMET-SILENCER MOUNT

5413383

Unavailable

11

SPRING-EXHAUST

7041789

Unavailable

12

BOLT-M6X1.0X15,HXFLG,TAP/R-OD

7518513

Unavailable

13

SCR-HXFL-M6X1.0X50 TDFM ZPB

7519090

Unavailable

14

NUT-HEX-M8X1.25 8 ZPB.

7547076

Unavailable

15

WASHER-LOCK M8X12.7ODX2MM ZY3

7556111

Unavailable

16

RIVET-3/16-.090-.290

7661637

Unavailable

17

RETAINER-BOLT,1/4-20

7670154

Unavailable

18

ADDED FOIL [SEE BODY PANELS, THERMAL SHIELDS PAGE]

-------

Unavailable
