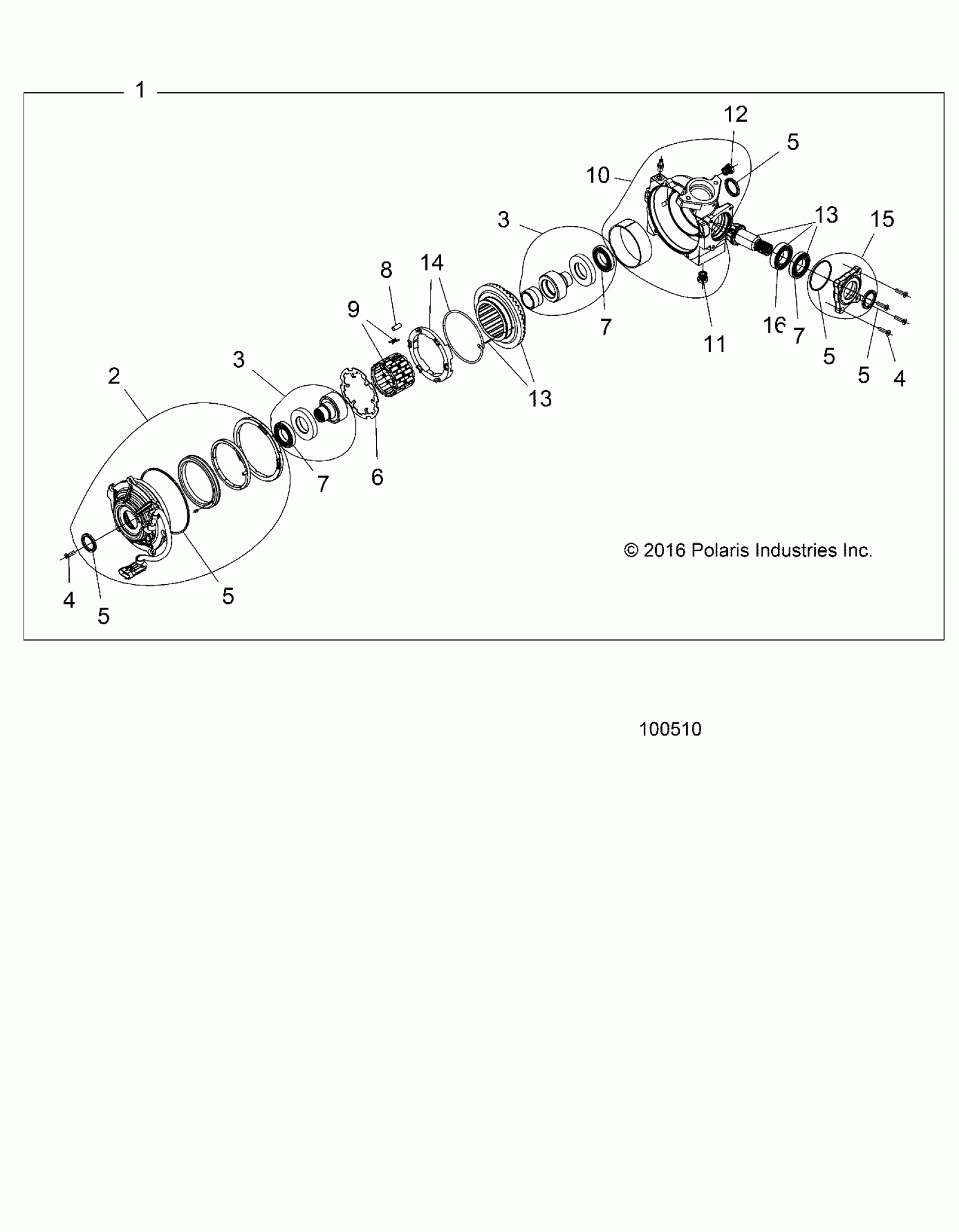

Polaris SPORTSMAN 1000 HIGH LIFTER (R17) - A16SXM95AL DRIVE TRAIN, FRONT GEARCASE INTERNALS - A16SXM95AL (100510) Diagram

ASM-GEARCASEFR,12PCKT,NOADC,VI [INCL. ALL]

1333693

Unavailable

ASM-COVER,OUTPUT [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]

3235634

Unavailable

ASM-OUTPUT HUB [INCL. BEARINGS, BUSHING, HUBS, SPACERS]

3235911

Unavailable

ASM-OUTPUT HUB [INCL. BEARINGS, BUSHING, HUBS, SPACERS]

3235911

Unavailable

KIT-FASTNERS [INCL. QTY 10 SCREWS]

2203730

$39.99

KIT-FASTNERS [INCL. QTY 10 SCREWS]

2203730

$39.99

KIT-SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

2203729

$79.99

KIT-SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

2203729

$79.99

KIT-SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

2203729

$79.99

KIT-SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

2203729

$79.99

KIT-SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

2203729

$79.99

PLATE, 4WD ARMATURE

3235485

Unavailable

Bearing

3234390

$35.99

Bearing

3234390

$35.99

Bearing

3234390

$35.99

K-CLUTCH ROLLS [INCL. SET OF 24]

3235624

$153.41

ASM-ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]

3235625

$163.99

ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]

3235436

Unavailable

KIT-PLUG,DRAIN

2203738

$35.99

KIT-PLUG,FILL

2203739

$39.99

ASM-GEARCASE HOUSING,PNN GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]

3235993

$725.99

ASM-GEARCASE HOUSING,PNN GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]

3235993

$725.99

KIT-TORSION,SPRING AND RETAINER

3235712

$35.99

ASM-INPUT COVER [INCL. O-RING, COVER, SEAL]

3235200

$187.99

BEARING-1215-02-168

3235311

$39.99
