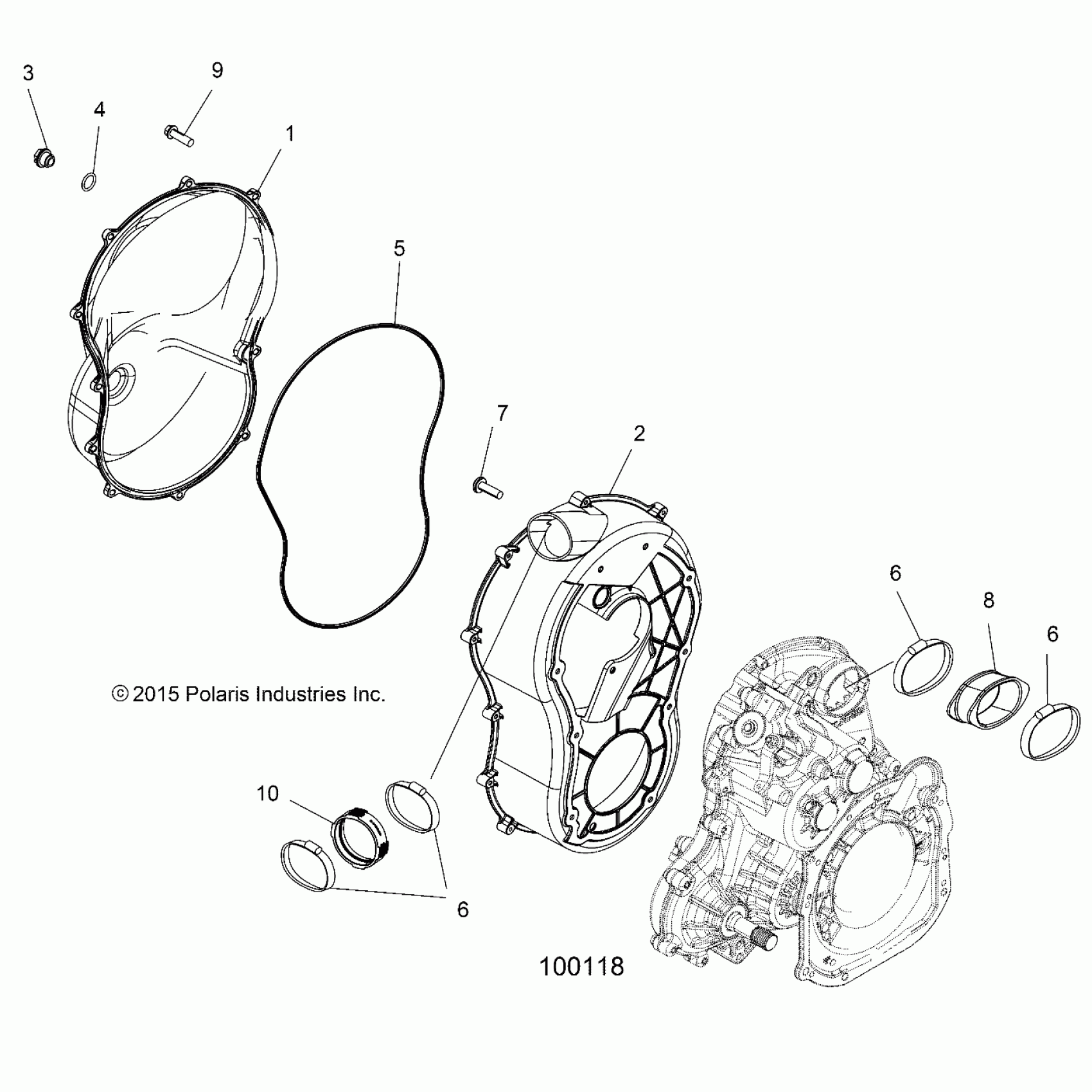

Polaris SPORTSMAN 1000 HIGH LIFTER (R17) - A16SXM95AL BODY, CLUTCH COVER AND BOOTS - A16SXM95AL Diagram

#

Description

Price

1

ASM., COVER, OUTER [INCL. OUTER COVER,3,4]

2633919

$139.99

2

COVER, CLUTCH INNER

5438127

$167.99

3

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

4

O RING-.364X.504X.07

5410542

Unavailable

5

SEAL, COVER, CLUTCH

5521802

$34.74

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

6

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

7

SCREW [TO 11/16/15]

7518914

$3.19

7

SCR-M6X1.0X14,PN/TX [FROM 11/17/15]

7520472

$3.19

8

Boot, Clutch, Inlet

5413177

$35.99

9

SCREW

7519849

$3.19

10

BOOT, OUTLET, DUCT [SEE BODY PANELS, THERMAL SHIELDS PAGE]

-------

Unavailable
