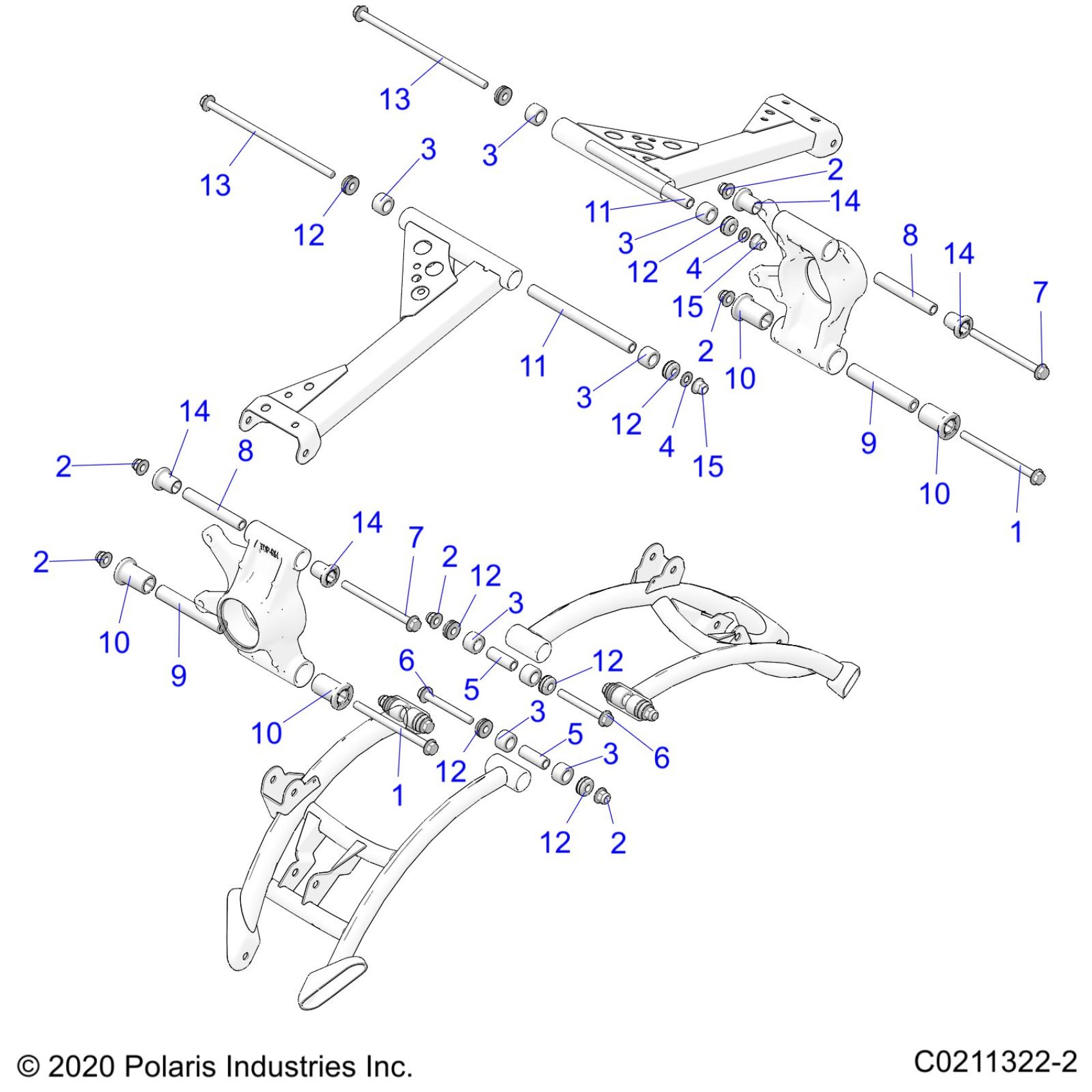

Polaris SPORTSMAN 1000 48" LE RIDE COMMAND (R02) - A25SXR95AM SUSPENSION, REAR CONTROL ARM MOUNTING - A25SXR95AM (C0211322-2) Diagram

#

Description
Price

1

SCR-HXFL-M10X1.5X140 8.8 ZY3

7518467

$5.59

1

SCR-HXFL-M10X1.5X140 8.8 ZY3

7518467

$5.59

2

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

2

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

2

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

2

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

2

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

2

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

3

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

3

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

3

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

3

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

3

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

3

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

3

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

4

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

4

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

5

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

5

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

6

SCR-HXFL-M10X1.5X85 8.8 ZY3

7518466

$4.79

6

SCR-HXFL-M10X1.5X85 8.8 ZY3

7518466

$4.79

7

BOLT, FLANGE

7518675

$5.59

7

BOLT, FLANGE

7518675

$5.59

8

SHAFT, PIVOT

5137590

$8.79

8

SHAFT, PIVOT

5137590

$8.79

9

SHAFT, A-ARM, LOWER CONTROL ARM

5136473

Unavailable

9

SHAFT, A-ARM, LOWER CONTROL ARM

5136473

Unavailable

10

BUSHING, LOWER CONTROL ARM

5437651

$6.39

10

BUSHING, LOWER CONTROL ARM

5437651

$6.39

10

BUSHING, LOWER CONTROL ARM

5437651

$6.39

10

BUSHING, LOWER CONTROL ARM

5437651

$6.39

11

SHAFT-PIVOT,190MM,M10

5141510

$34.99

11

SHAFT-PIVOT,190MM,M10

5141510

$34.99

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

13

SCR-HXFL-M10X1.25X235 10.9 ZOD

7519086

$27.99

13

SCR-HXFL-M10X1.25X235 10.9 ZOD

7519086

$27.99

14

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

14

BUSHING-STANDARD,ORV

5439874

$2.39

14

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

14

BUSHING-STANDARD,ORV

5439874

$2.39

14

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

14

BUSHING-STANDARD,ORV

5439874

$2.39

14

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

14

BUSHING-STANDARD,ORV

5439874

$2.39

15

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

15

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59
