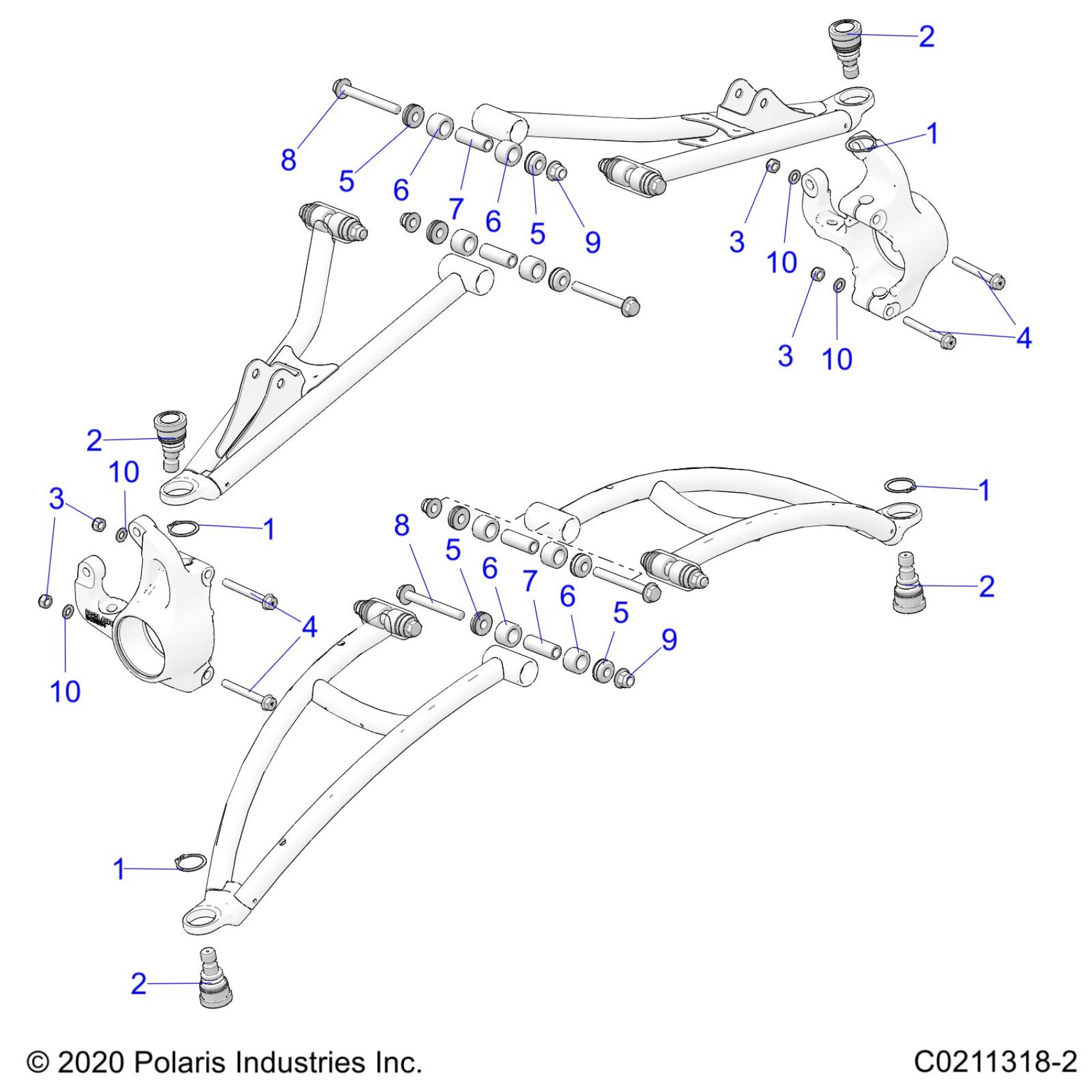

Polaris SPORTSMAN 1000 48" LE RIDE COMMAND (R02) - A25SXR95AM SUSPENSION, FRONT A-ARM MOUNTING - A25SXR95AM (C0211318-2) Diagram

#

Description
Price

1

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

1

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

1

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

1

RING-RETAINER,EXTERNAL,1.188

7710533

$2.39

2

JOINT, BALL, LONG STUD

7061220

$75.99

2

JOINT, BALL, LONG STUD

7061220

$75.99

2

JOINT, BALL, LONG STUD

7061220

$75.99

2

JOINT, BALL, LONG STUD

7061220

$75.99

3

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

3

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

3

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

4

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

4

SCR-M8X1.25X65-HX/FL-Y,CL 10.9

7519212

$4.79

5

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

5

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

5

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

5

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

6

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

7

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

7

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

8

SCR-HXFL-M10X1.5X85 8.8 ZY3

7518466

$4.79

8

SCR-HXFL-M10X1.5X85 8.8 ZY3

7518466

$4.79

9

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

9

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

10

WASHER-0.62X0.330 X .060 FL-Y

7556557

$1.49

10

WASHER-0.62X0.330 X .060 FL-Y

7556557

$1.49

10

WASHER-0.62X0.330 X .060 FL-Y

7556557

$1.49

10

WASHER-0.62X0.330 X .060 FL-Y

7556557

$1.49
