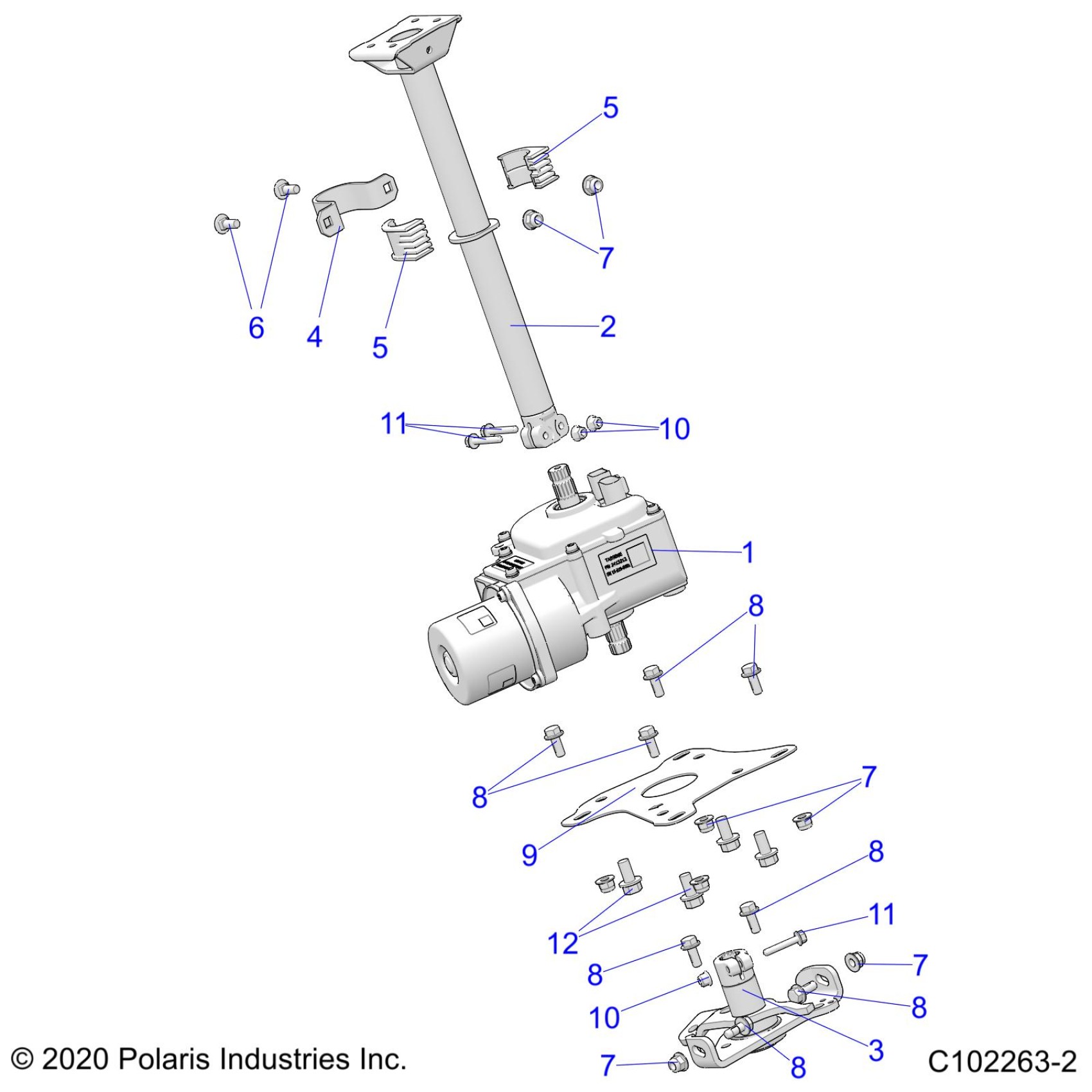

Polaris SPORTSMAN 1000 48" LE RIDE COMMAND (R02) - A25SXR95AM STEERING, STEERING POST ASM. - A25SXR95AM (C102263-2) Diagram

#

Description
Price

1

EPAS-PGM,SPMN,GEN2.5.2,TRIMODE [TO 11/1/2024]

2417018

Unavailable

1

ASM-EPS-PGM,SPMN,GEN2.5.2,500K [FRM 11/1/2024][TO 4/28/2025]

2418230

$2,469.99

1

ASM-EPS,SPMN,GEN4,250K [FRM 4/28/2025]

2418333

Unavailable

2

POST, STEERING, UPPER, BLACK

1823781-329

$111.99

2

POST, STEERING, UPPER, BLACK

1823781-329

$111.99

3

KIT, POST, STEERING, LOWER, BOLTED [INCL. POST AND HARDWARE]

2205364

$151.99

4

BRKT-BUSHING STRAP

5262582

$27.99

5

BUSHING-SWAY BAR,1.25

5450101

Unavailable

5

BUSHING-SWAY BAR,1.25

5450101

Unavailable

6

SCR-RHCAR-M8X1.25X20 8.8 ZY3

7518479

$3.99

7

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

7

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

7

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

7

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

8

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

8

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

8

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

8

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

8

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

8

BOLT-M8X1.25X20,HXHDFLG,W/PTCH

7518450

$1.59

9

BRACKET, POWER STEERING, BLACK

5254633-329

$39.99

10

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

10

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

11

SCR-M6X1.0X35,HX/FL-Y/D

7521304

$3.19

11

SCR-M6X1.0X35,HX/FL-Y/D

7521304

$3.19

12

BOLT-M10X1.25X20,HXFLG-OLV D

7518558

$3.99
