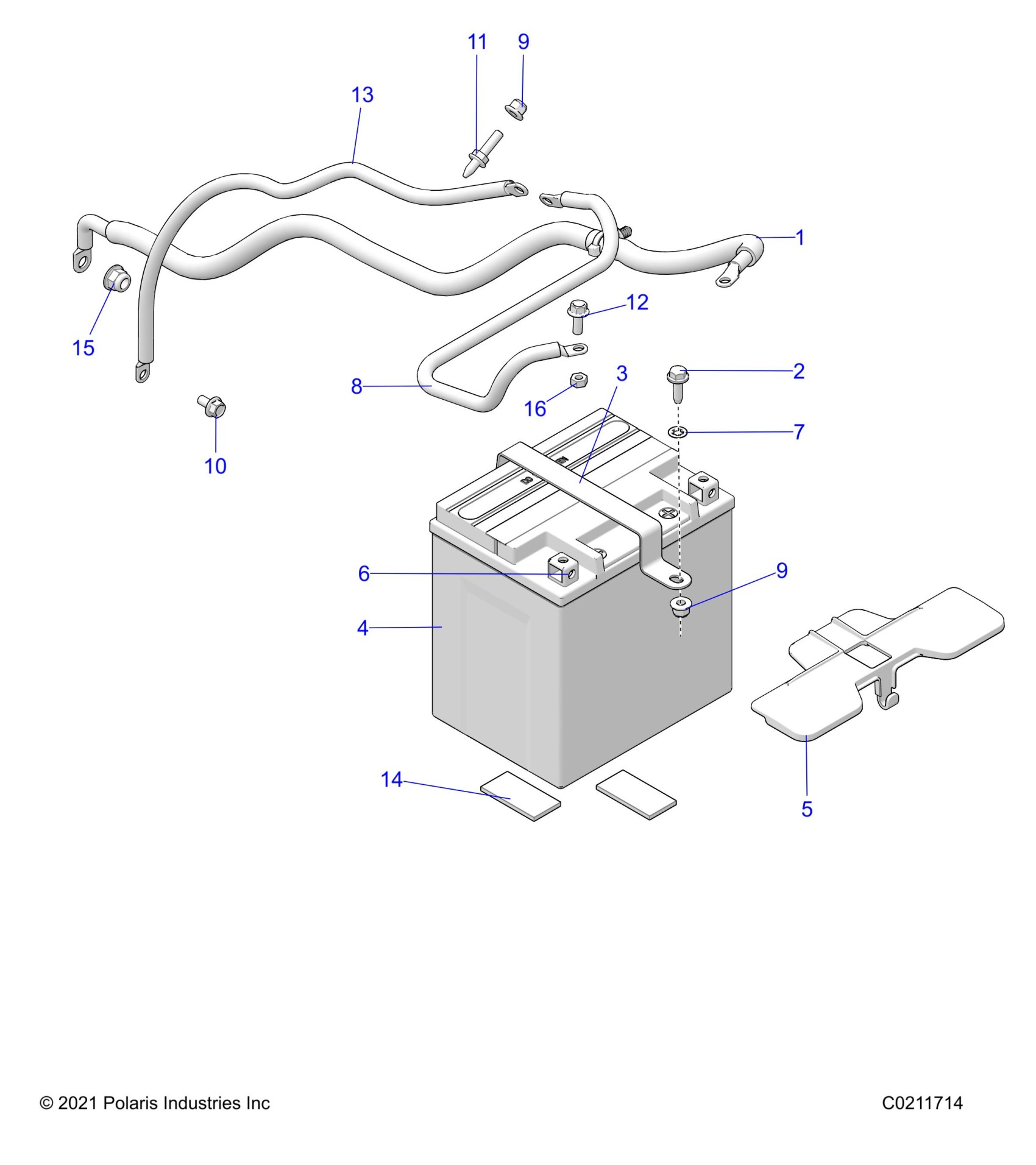

Polaris SPORTSMAN 1000 48" LE RIDE COMMAND (R02) - A25SXR95AM ELECTRICAL, BATTERY - A25SXR95AM (C0211714) Diagram

#

Description
Price

1

CABLE-BATTERY/SOLENOID

4019734

$43.99

2

SCR-6MMX1X20 HX/CP

7518925

$3.19

3

BRKT-BATTERY,30AH

5253600

$35.99

4

BATTERY-30AH,12 VOLT,AGM

4014609

$199.98

5

COVER, BATTERY

5438299

$14.39

6

BATTERY BOLT KIT

2201357

$11.19

7

RETAINER-BOLT,1/4-20

7670154

$1.49

8

CABLE, BLACK

4012709

$31.99

9

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

9

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

10

SCR-HXFL-M6X1.0X12 8.8 ZOD P30

7519145

$3.99

11

STUD-M6X1.0X19-M6 TAPTITE

7519333

$7.99

12

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

13

CABLE-BATT,6GA,BK,85,85,M6

4014525-360

$39.99

14

PAD-FOAM SHIM,TRUNK

5413465

$5.59

15

NUT-M6X1 HX R.HAND-Y

7546701

$3.99

16

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39
