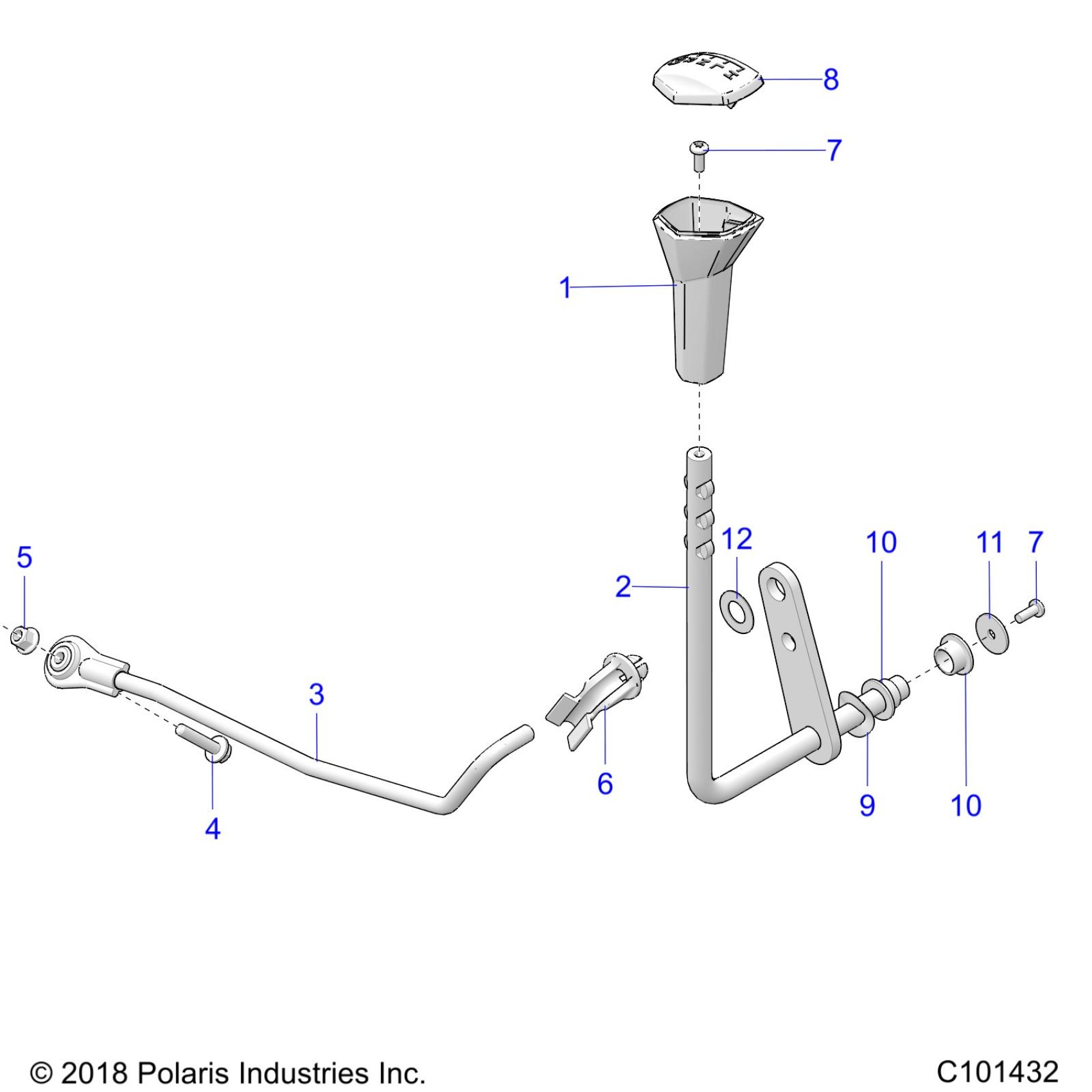

Polaris SPORTSMAN 1000 48" LE RIDE COMMAND (R02) - A25SXR95AM DRIVE TRAIN, GEAR SELECTOR - A25SXR95AM (C101432) Diagram

#

Description

Price

1

KNOB-GEAR SELECTOR SHIFT

5414569

$12.79

2

WELD-GEAR SELECTOR,M.BLK

1022981-458

$43.99

3

ROD, LINKAGE

1823423

$47.99

4

BOLT-M6X1.0X30,HXHD,FLG,BLK

7518530

$3.99

5

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

6

BUSHING, SNAP LINKAGE

5436722

$3.99

7

SCR-#10-24X1/2PH/TORX-TRIRD-Y

7512024

$4.79

7

SCR-#10-24X1/2PH/TORX-TRIRD-Y

7512024

$4.79

8

COVER-SHIFT

5450575

$11.99

9

WASHER, SPRING

7556464

$3.99

10

BUSHING, PIVOT, PEDAL

5433189

$3.99

10

BUSHING, PIVOT, PEDAL

5433189

$3.99

11

WASHER-.203X.875X.060-Y

7556044

$3.99

12

WASHER THRUST(10)

7558702

$1.59
