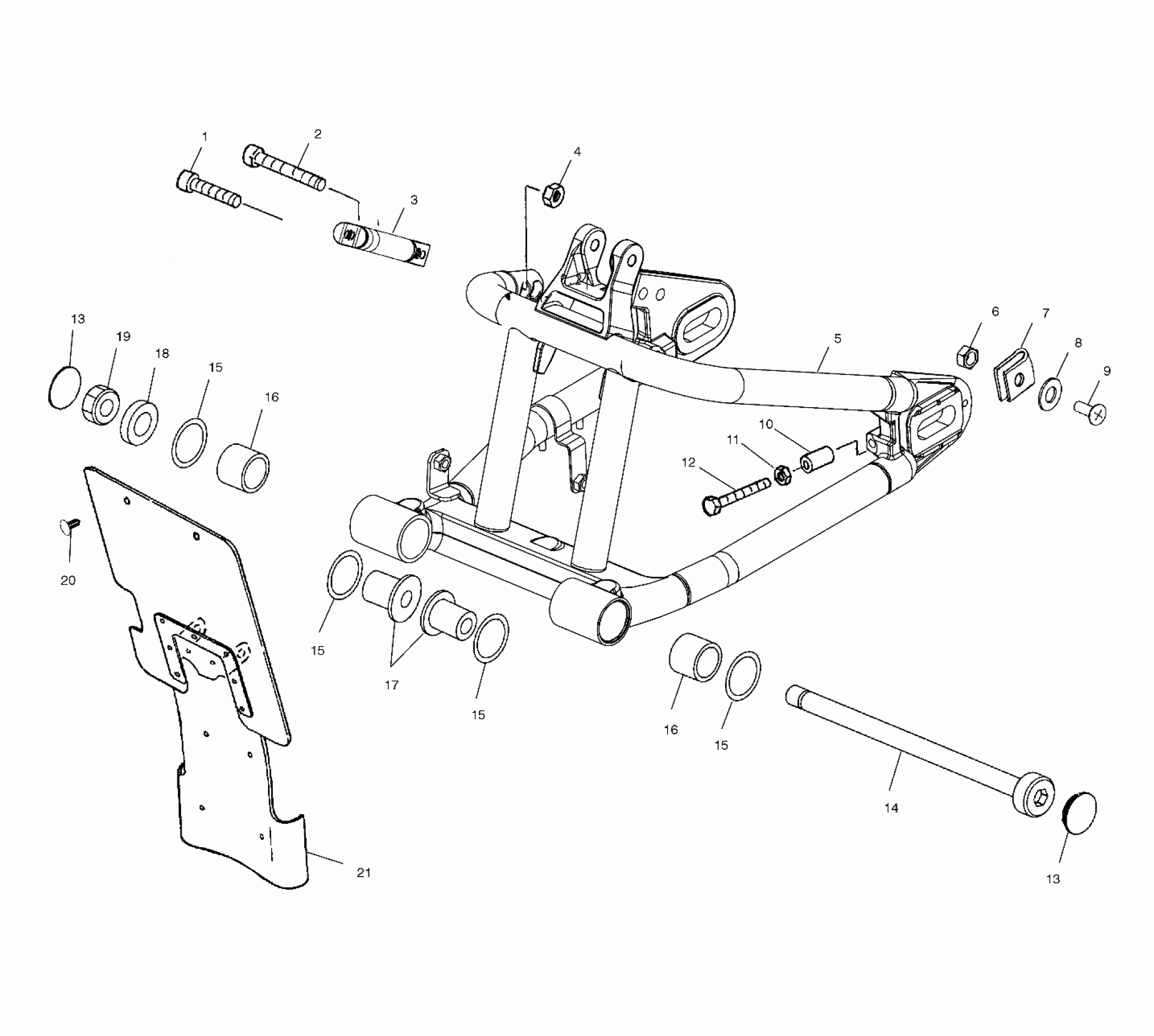

Polaris SPORTCRUISER - V01CS15LF SUSPENSION, SWING ARM - V01CS15DA (4966166616A005) Diagram

#

Description
Price

1

SCREW

7517358

$5.59

2

SCREW (10) Substituted by 2201580

7517712

Unavailable

3

TUBE,UPPER,BLK

1080002-067

$130.95

4

NUT (10)

7547039

Unavailable

5

WELD-SWING ARM,01,BLK

1013532-067

$544.99

6

NUT(10)

7547141

$2.43

7

CLIP,HOSE

5433380

$1.83

8

WASHER,FLAT,.250X.063(10)

7556148

$9.52

9

SCREW,(10)

7517391

$8.79

10

SPACER,SWINGARM ALIGNMENT

5131908

$6.37

11

NUT,HEXHD,M8

7547076

$2.60

12

SCREW (10)

7517508

Unavailable

13

CAP-SWINGARM PIVOT

5132481

$7.38

13

CAP-SWINGARM PIVOT

5132481

$7.38

14

DESC NOT_AVAILABLE

5132890

$121.43

15

O-Ring

5411367

$6.99

15

O-Ring

5411367

$6.99

15

O-Ring

5411367

$6.99

15

O-Ring

5411367

$6.99

16

BUSHING,SWINGARM

5432767

Unavailable

16

BUSHING,SWINGARM

5432767

Unavailable

17

SLEEVE,SWINGARM

5010445

$28.62

18

Washer

7556021

$7.67

19

NUT Substituted by 7547124

7547048

Unavailable

20

CLIP,XMAS,TREE,BLK(10)

5432783-070

Unavailable

21

FENDER ASM,INNER

1012719

$288.99
