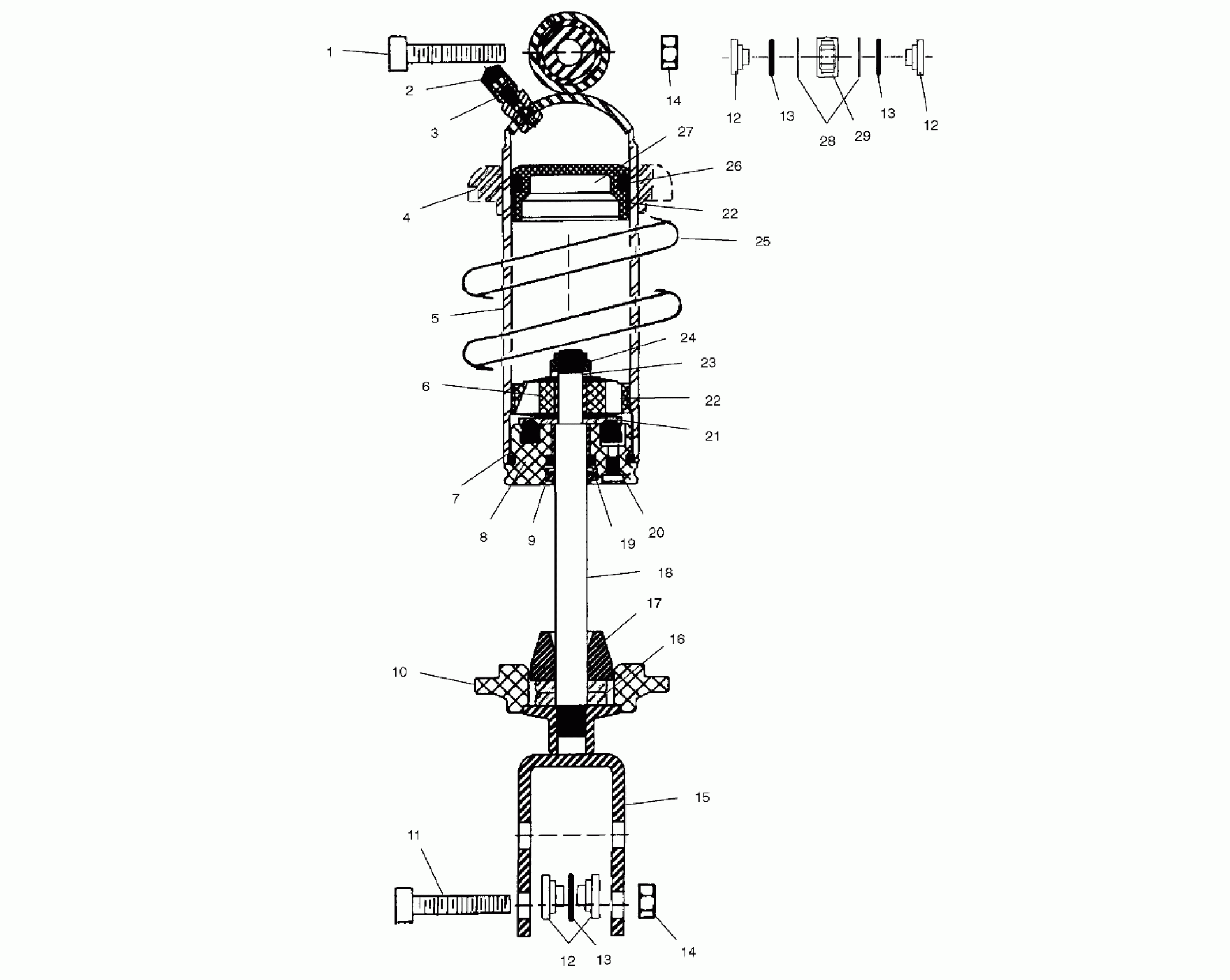

Polaris SPORTCRUISER - V01CS15LF SUSPENSION, SHOCK, REAR - V01CS15DA (4966166616B003) Diagram

#

Description
Price

-

DECAL-WARNING,ANSI

1500454

Unavailable

-

ASM., SHOCK, REAR

1541654

Unavailable

1

SCREW Substituted by 7517962

7517364

Unavailable

2

CAP,SHRADER VALVE

1500210

Unavailable

3

VALVE-AIR,COMPLETE

1500206

$24.19

4

DESC NOT_AVAILABLE

1500455

Unavailable

5

BODY-1.834X6.98 TLG

1500457

$115.08

6

PISTON-1.834X.055

1500456

$115.08

7

SEAL,O-RING

1500228

Unavailable

8

BEARING-1.83X.95 812-02-003

1500294

Unavailable

9

U-CUP-4300 URETH,036-01-006

1500266

$24.27

10

RETAINER-SPRING,V92C

1500178

$70.87

11

SCREW,HEXHD

7517365

Unavailable

12

REDUCER,STD.CRUISER Substituted by 1500092

1500173

Unavailable

12

REDUCER,STD.CRUISER Substituted by 1500092

1500173

Unavailable

12

REDUCER,STD.CRUISER Substituted by 1500092

1500173

Unavailable

13

O-RING,(FOX),SP

1500093

$7.27

13

O-RING,(FOX),SP

1500093

$7.27

13

O-RING,(FOX),SP

1500093

$7.27

14

NUT (10)

7547122

Unavailable

14

NUT (10)

7547122

Unavailable

15

EYELET-CLEVIS 808-16-003

1500305

Unavailable

16

BUMPER,RUBBER

1500074

$5.65

17

BUMPER

1500066

Unavailable

18

SHAFT-.498X6.02 229-03-008

1500293

Unavailable

19

SEAL,Q-RING .139CS 035-00-206

1500297

Unavailable

20

O-RING,DRUM OUTER

1500022

Unavailable

20

SCREW-#10-24X.375 800-10-000

1500295

Unavailable

21

PLATE-T/O 1.57X.93 050-00-003

1500296

Unavailable

22

BEARING,EXTERNAL

1500230

$31.99

22

BEARING,EXTERNAL

1500230

$31.99

23

BUSHING,BACKUP

1500015

$6.76

24

NUT,LOCK

1500016

$12.79

25

SPRING,SC<039-08-044A Substituted by 7041759

7041913

Unavailable

26

SEAL,O-RING

1500208

$7.98

27

PISTON-FLOATING,2"

1500211

$48.00

28

RING,SNAP,(FOX SP)

7710446

$6.23

29

BEARING,SPHERICAL

3513506

$64.59
