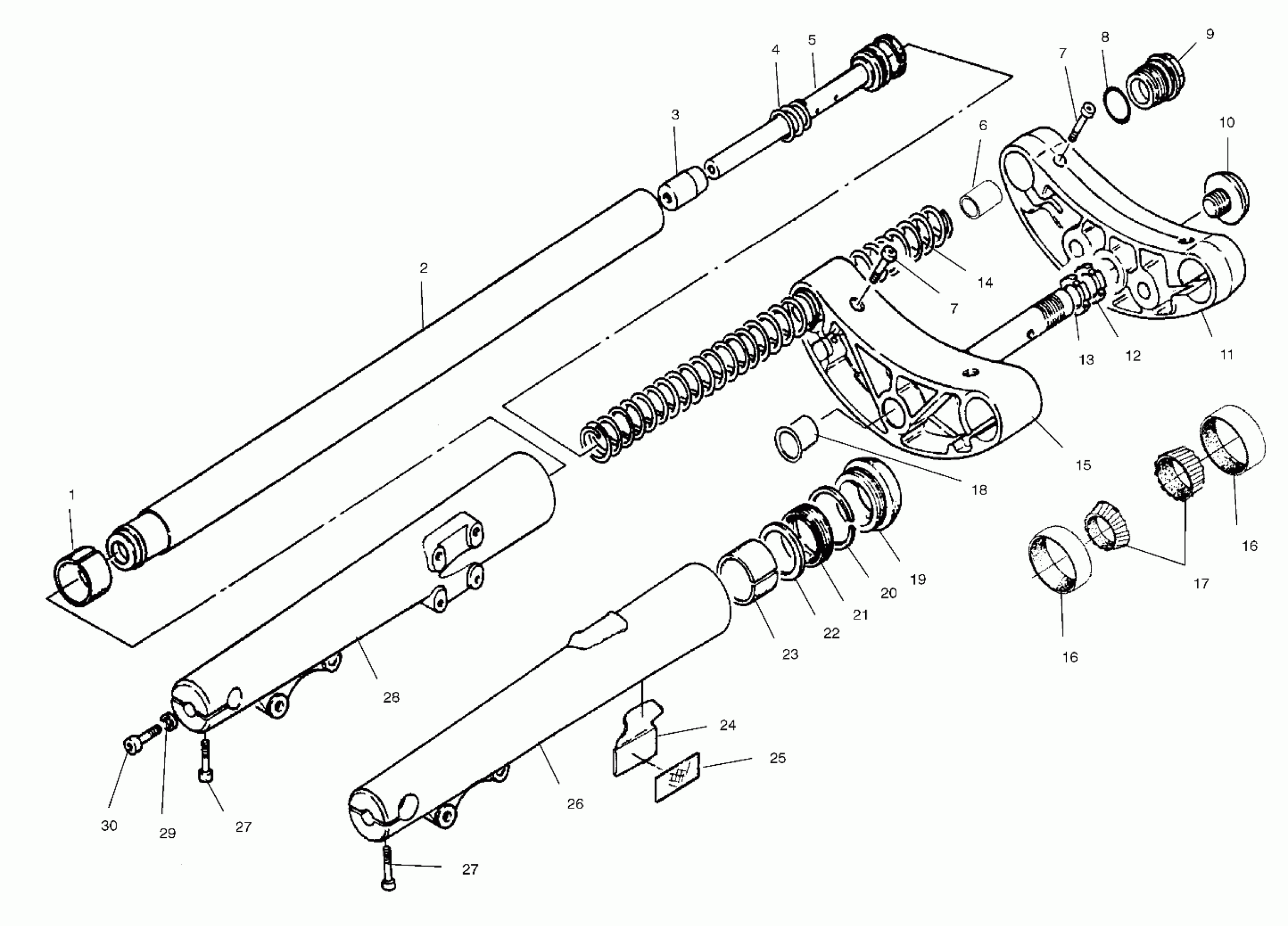

Polaris SPORTCRUISER - V01CS15LF SUSPENSION, FRONT FORKS - V01CS15DA (4966166616A009) Diagram

#

Description
Price

-

OIL,FORK,QT.(6)

2872184

Unavailable

-

ASM-FORK LEG,50MM,CONN,LH,BLK (Incl. 1-6,8,9,14,19-23,26,27,29,30)

1821001

$546.99

-

ASM-FORK LEG,50MM,CONN,RH,BLK (Incl. 1-6,8,9,14,19-23,27-30)

1821002

$639.99

1

BUSHING,LOWER,50MM

3514345

Unavailable

2

TUBE,STANCHION,50MM Substituted by 1820603

1820608

Unavailable

3

FOOT,BUFFER,50MM

5131498

Unavailable

4

SPRING,REBOUND

7041624

$10.63

5

DESC NOT_AVAILABLE

2201889

Unavailable

5

DESC NOT_AVAILABLE

5434229

Unavailable

5

DESC NOT_AVAILABLE

5334038

Unavailable

6

SPACER-FORK SPRING,50MM,255MM

3514344

$31.06

7

CLAMP,STAN.TUBE FASTENER

1500170

$6.98

7

CLAMP,STAN.TUBE FASTENER

1500170

$6.98

8

O-RING,FORK,50MM

5411874

Unavailable

9

CAP,FORK,50MM

5132437

$172.22

10

BOLT,STEERING POST,CAP

5131497

$116.67

11

ASM-TRIPLE,CLAMP,UPR,50MM,SLVR (Incl. 7)

1821007

$197.59

12

NUT-STEERING POST,UPPER

5131953

$17.46

13

NUT,STEERING POST

5131496

$33.33

14

DESC NOT_AVAILABLE

7041891

$86.51

15

ASM-TRIPLE,CLAMP,LOWER,50MM,SLVR (Incl. 7,10,12,13)

1821008

$329.99

16

BRG,TAPER,ROLL CUP

3554507

$31.99

16

BRG,TAPER,ROLL CUP

3554507

$31.99

17

BEARING,TPR.RLR,SEALED

3554510

Unavailable

18

PLUG-PVC

5433581

$0.95

19

O-RING,FORK,50MM

5411874

Unavailable

19

DESC NOT_AVAILABLE

5133062

Unavailable

19

DESC NOT_AVAILABLE

3610083

Unavailable

20

RING,STOP,50MM

5244334

$5.05

21

SEAL,OIL,50 MM

3610077

$35.71

22

CAP,SEAL,50MM

5132436

$26.98

23

BUSHING,UPPER,50MM

3514346

$96.02

24

DESC NOT_AVAILABLE

5433864

$15.56

24

BASE-REFLECTOR,FRONT, RH

5433748

$13.89

25

REFLECTOR-RECT,AMBER W/BLK FRM

5433878

$5.71

26

DESC NOT_AVAILABLE (Incl. 20-23)

2201890

Unavailable

27

CLAMP,AXLE FASTENER

1500168

Unavailable

27

CLAMP,AXLE FASTENER

1500168

Unavailable

28

DESC NOT_AVAILABLE (Incl. 20-23)

2201891

Unavailable

29

WASHER,OILSEAL

3610069

$23.81

30

RETAINER,DAMP.TUBE FASTENER

1500169

$4.21
