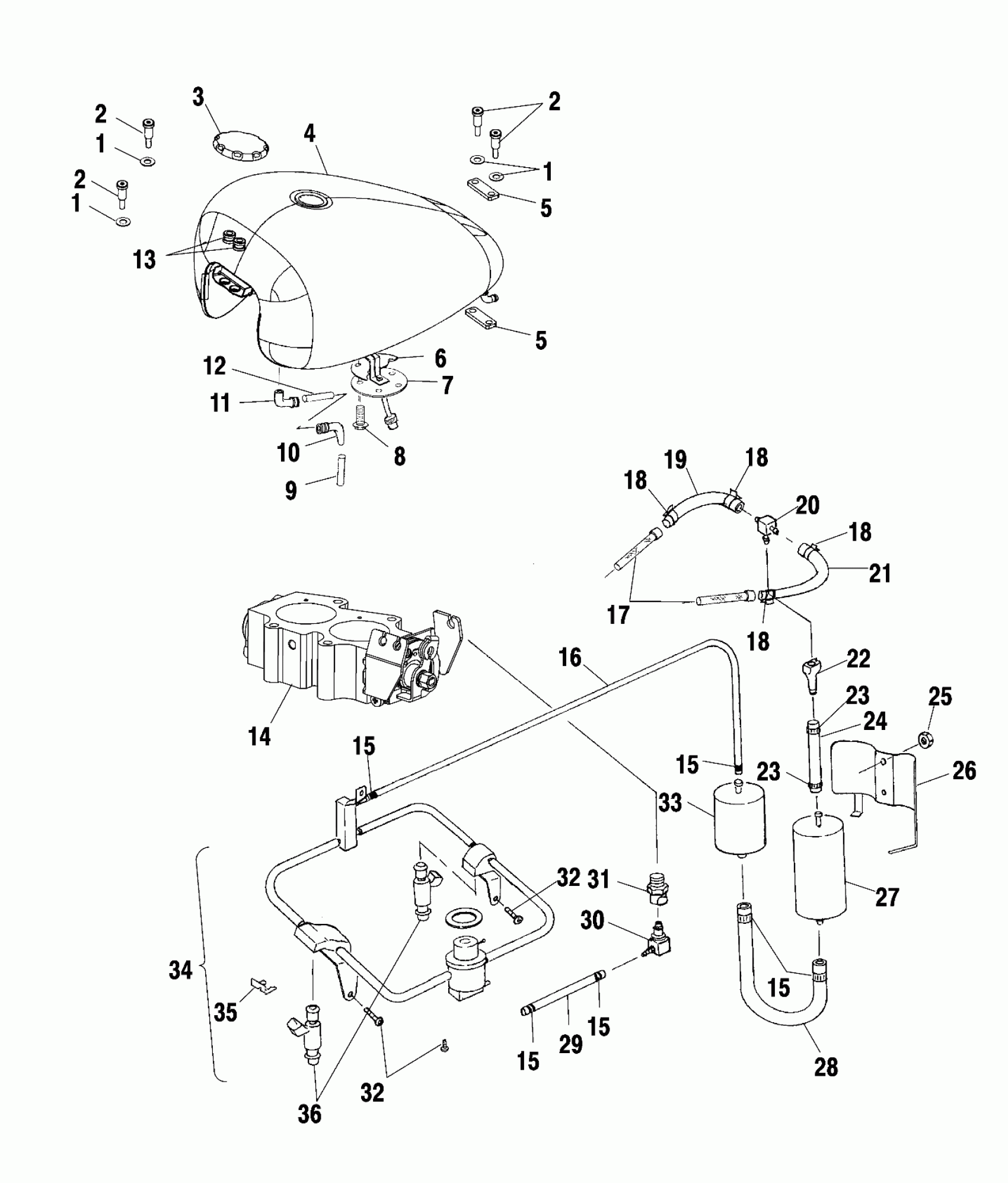

Polaris SPORTCRUISER - V01CS15LF FUEL SYSTEM, FUEL TANK, PUMP, RAILS and THROTTLE BODY - V01CS15DC (4966166616D001) Diagram

#

Description
Price

1

WASHER(10)

7556155

$5.22

1

WASHER(10)

7556155

$5.22

1

WASHER(10)

7556155

$5.22

2

SCREW

7517723

Unavailable

2

SCREW

7517723

Unavailable

2

SCREW

7517723

Unavailable

3

CAP,FUEL

5132333

Unavailable

4

WELD-TANK,FUEL,BLK W/SLV PIN

1013342A1

Unavailable

4

WELD-TANK,FUEL,STL GREY

1013342A5

Unavailable

4

WELD-TANK,FUEL,SPEED YELLOW

1013342A11

Unavailable

5

PAD-REAR,TANK MOUNT

5411796

Unavailable

5

PAD-REAR,TANK MOUNT

5411796

Unavailable

6

GASKET-FUEL SENDER

5830193

$10.63

7

SENDER-FUEL LEVEL,SMALL FLOAT

4010277

$172.22

8

SCREW,SOCHD,M5X10,ZPB

7517725

Unavailable

9

VENT-LINE,FUEL

5433958

Unavailable

10

ELBOW-VENT LINE

5411984

$1.83

11

ELBOW-VENT LINE

5411972

$1.98

12

VENT LINE-FUEL

5433950

$12.30

13

GROMMET-RUBBER,FUEL TANK,FRONT

5811878

Unavailable

14

ASM-BODY,THROTTLE(CALIFORNIA MODEL)

1253328

$404.99

15

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

15

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

15

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

15

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

15

CLAMP,HOSE,12-17MM DIA

7080894

$7.14

16

HOSE,FILTER/MANIFOLD

5411803

$26.98

17

FILTER,FUEL

2530031

Unavailable

18

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

18

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

18

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

18

CLAMP,HOSE,DBL.BAND

7080790

Unavailable

19

HOSE,TANK/QUICK DISC,RH

5411799

Unavailable

20

QUICKDISC,FUELFEED,MALE,TEE

2520131

Unavailable

20

O-Ring

1500199

$4.76

21

HOSE,TANK/QUICK DISC,LH

5411929

Unavailable

22

QUICKDISC,,FUELPUMP,FEMALE

2520136

Unavailable

23

CLAMP,HOSE,16-22MM DIA

7080895

$2.54

23

CLAMP,HOSE,16-22MM DIA

7080895

$2.54

24

HOSE,QUICK-DISC/PUMP

5411801

Unavailable

25

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

26

BRKT,FUELPUMP TOP,BLK

5211889-067

Unavailable

27

PUMP,FUEL

2520128

Unavailable

28

HOSE,PUMP/FILTER

5411802

Unavailable

29

HOSE,RAIL/TANK RETURN

5411804

$34.44

30

O-Ring

1500199

$4.76

30

FUELLINE,QUICK DISC,MALE

5131507

Unavailable

31

DISC-QUICK,FUELTANK,FEMALE

5131506

$49.21

32

SCREW (10)

7517405

$10.39

32

SCREW (10)

7517405

$10.39

33

FILTER,FUEL,HI-PRESSURE

2530028

$40.46

34

RAIL,FUEL Substituted by 2520191

2520191

Unavailable

35

Clip, Injector Clocking

7670103

$3.79

36

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

36

Injector, Fuel

1253174

$177.13
