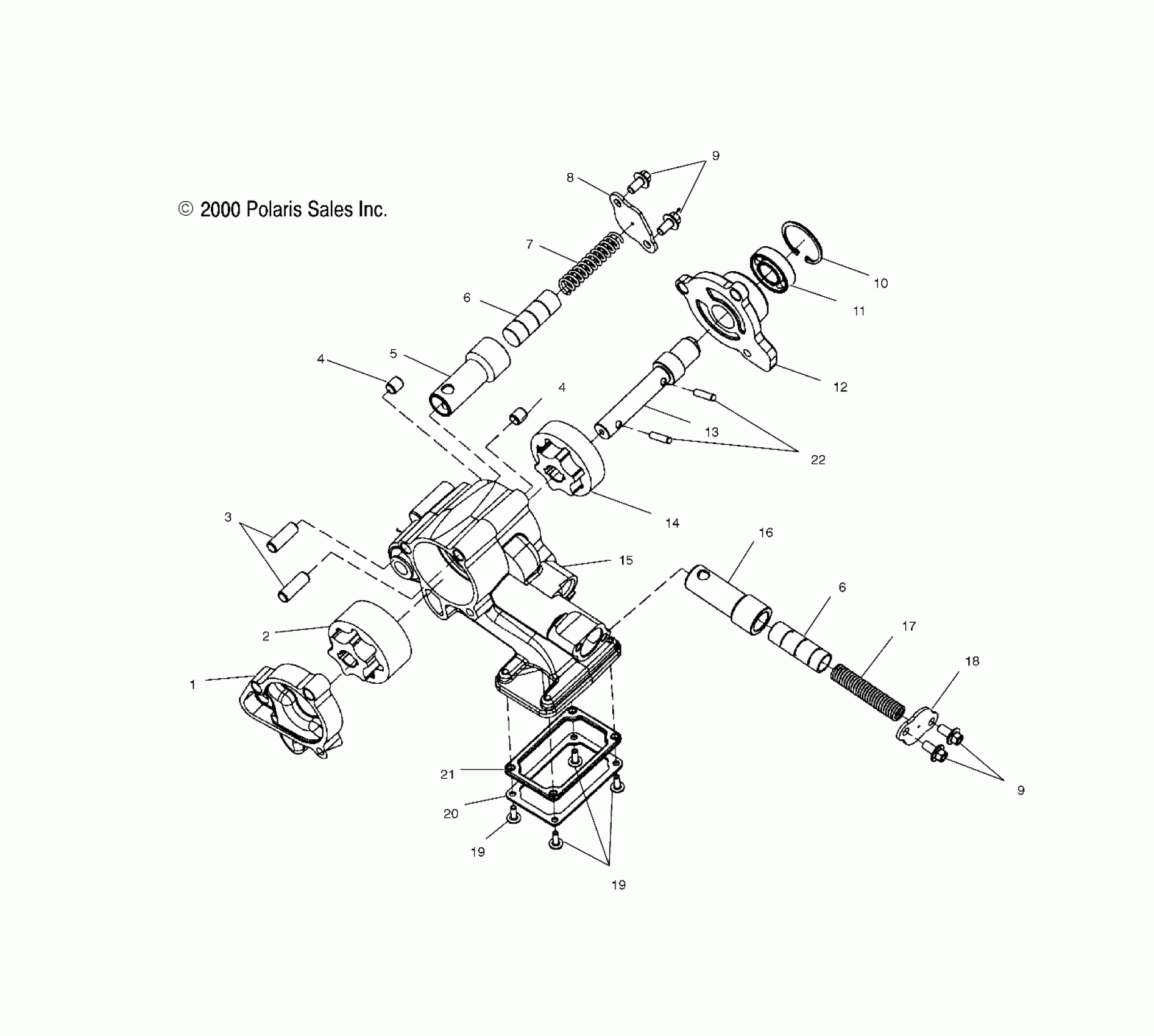

Polaris SPORTCRUISER - V01CS15LF ENGINE, OIL PUMP - V01CS15DA (4966166616C009) Diagram

#

Description
Price

-

ASM., OIL PUMP

2540060

$589.99

1

OIL,PUMP BODY,BASE,MACHINED

5132174

Unavailable

2

ROTOR-SET,COOLING

2540065

$18.65

3

DWL,HOL,M9X26

7663014

$2.60

4

DWL-HOL,M9X10

7663007

$3.97

4

DWL-HOL,M9X10

7663007

$3.97

5

BODY,PRESS.RELIEF,COOLING

2540019

$36.83

6

PISTON,PRESS.RELIEF,COOLING

2540015

$34.44

6

PISTON,PRESS.RELIEF,COOLING

2540015

$34.44

7

SPRING,PRESS.RELIEF,COOLING

2540014

Unavailable

8

PLATE,PRD.RETAINER #1

5211898

Unavailable

9

SCREW,HXFLGHD,M6X12

7517257

$9.52

9

SCREW,HXFLGHD,M6X12

7517257

$9.52

10

RETAINER(10)

7710403

$2.62

11

BEARING,BALL

3513517

$13.08

12

COVER-OIL PUMP,MACH

5132169

$65.87

13

SHAFT-OIL PUMP

2540061

$78.99

14

ROTOR-SET,LUBRICATION

2540062

$33.33

15

BODY,OIL PUMP,MACH

5132291

$274.99

16

BODY,PRESS.RELIEF,LUBRICATE

2540009

Unavailable

17

SPRING,PRESS.RELIEF,LUBRIC

2540018

$1.83

18

PLATE,PRD.RETAINER,#2

5211899

Unavailable

19

SCREW,M4X12,PNWSHRHD.

7517275

$6.19

19

SCREW,M4X12,PNWSHRHD.

7517275

$6.19

20

PLATE-SUPPORT,OIL PUMP SCREEN

5242999

$4.92

21

SCREEN,OIL INTAKE

2540020

$9.05

22

PIN,SOL 4.76X19(10)

7661065

$2.00
