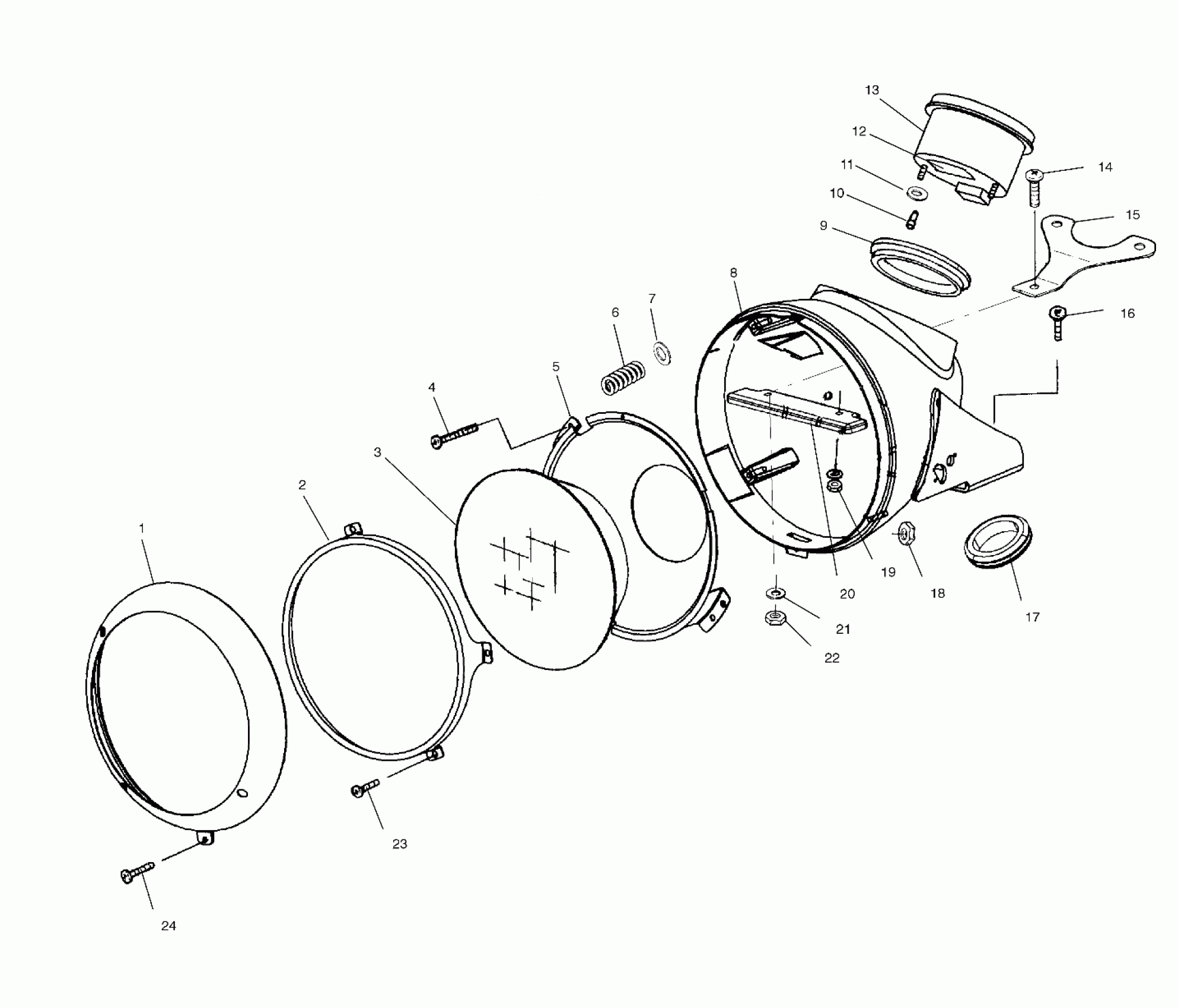

Polaris SPORTCRUISER - V01CS15LF ELECTRICAL, HEADLIGHT - V01CS15DA (4966166616A013) Diagram

#

Description
Price

1

BEZEL,HEADLAMP

1080019

Unavailable

2

RING,H/L.RETAINING

5241850

$90.99

3

HEADLIGHT,SEALEDBEAM,7 1/4"

4010160

Unavailable

4

SCREW,(10)SOCHD,M5X30

7517728

$5.40

5

MNT,HOUSING,INNER,HD.LAMP

5244699

$35.24

6

SPRING-ADJUSTER HEADLIGHT(10)

7041871

Unavailable

7

WASHER(10)

7556093

$2.17

8

HEADLIGHT HOUSING,SC ASM. (Incl. 18)

1013041

Unavailable

9

GASKET,SPEEDO

5811529

$17.94

10

LAMP INDICATOR,SPEEDO

2410102

$15.87

11

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

12

COVER,SPEEDOMETER

5432695

Unavailable

13

GAUGE,SPEED/TACH,SPORT Substituted by 2201964

3280283

Unavailable

13

GAUGE,SPEEDO/TACH,CAN,SC Substituted by 3280383 (Can.)

3280366

$444.99

14

SCREW (10)

7517494

$7.91

15

BRKT,HEADLIGHT STIFFENING

5243286

$27.94

16

SCR-SOCHD,M8X16,0600084

7517523

Unavailable

17

GROMMET,H/L HSG/WIRE

5411350

$4.37

18

NUT (10)

7547126

$3.19

19

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

20

RETAINER,SPEEDO,BLK.

5211872-067

$58.33

21

WASHER (10)

7556088

$4.79

22

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

23

SCREW

7517681

$2.60

24

SCREW,SS.

7517368

$1.30
