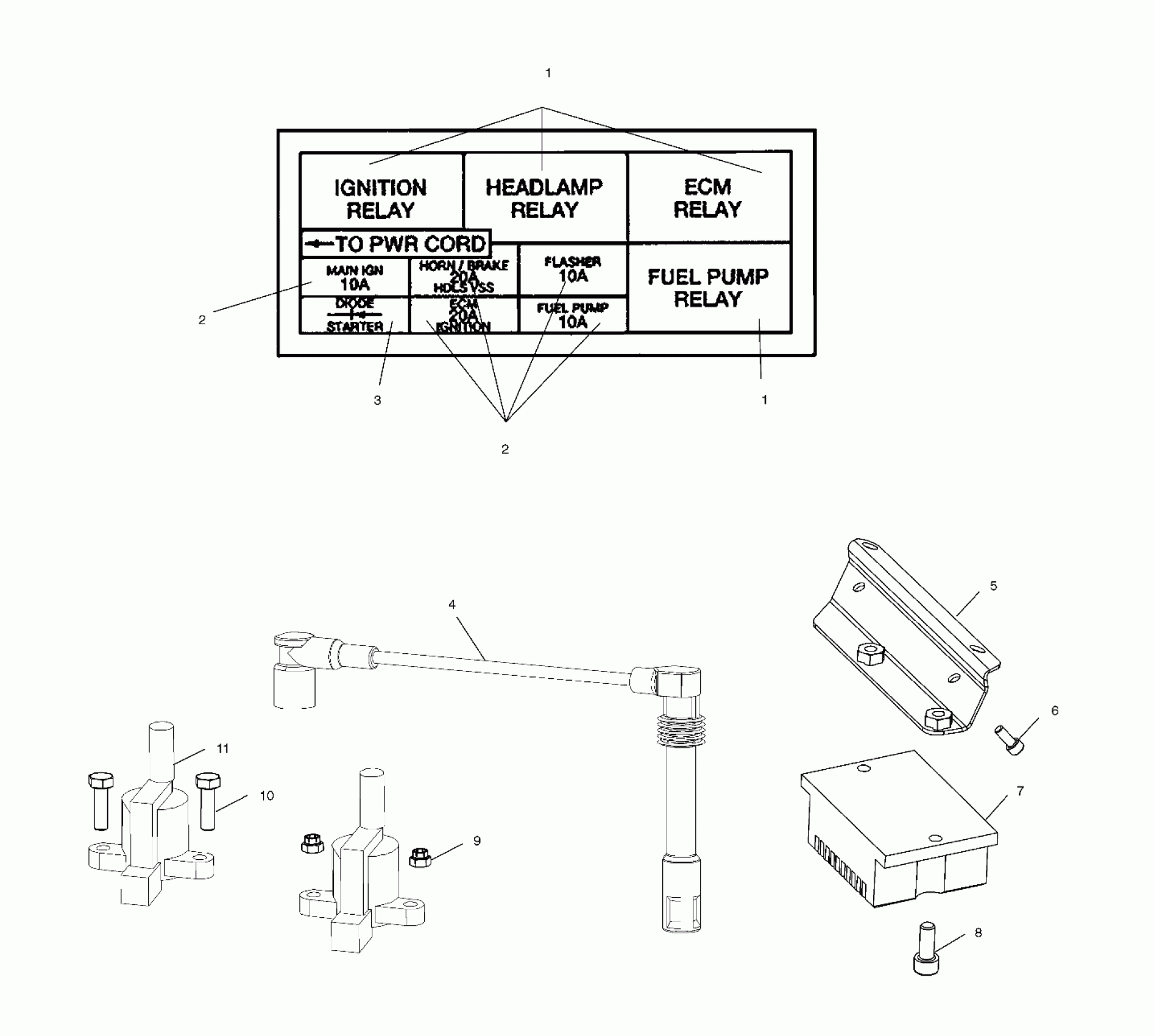

Polaris SPORTCRUISER - V01CS15LF ELECTRICAL, HARNESSES - V01CS15DA (4966166616B008) Diagram

DECAL-FUSE BOX,2001 (If built before 2/19/01)

7078959

Unavailable

Decal, Fuse Box (If built after 2/19/01)

7170035

Unavailable

HARNESS,RH,R.TURNSIGNAL

2460692

$23.02

HARNESS,LH,R.TURNSIGNAL

2460695

$23.02

CONNECTOR,8 PIN,R.FENDER

4010153

$13.89

LOCK,CONN,8 PIN,R.FENDER

4010154

$1.35

HARNESS-WIRE,2001 Substituted by 2460983

2460983

$774.99

RELAY,FUEL PUMP

2410098

Unavailable

RELAY,FUEL PUMP

2410098

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

DIODE-STARTER CIRCUIT

2434019

$13.95

LEAD,SPARK PLUG WIRE

4010130

Unavailable

BRKT,VOLTAGE REG,BLK.

1080003-067

$29.52

SCREW,SOCHD,M6X12

7517739

$9.59

ASM-REGULAT0R,VOLTAGE

2410209

Unavailable

SCREW,SOCHD,M6X15

7517272

$7.19

NUT Substituted by 7547120 (Rear Coil)

7547041

Unavailable

SCREW,HEXHD,M6X20

7517429

Unavailable

COIL,IGNITION

4010136

Unavailable
