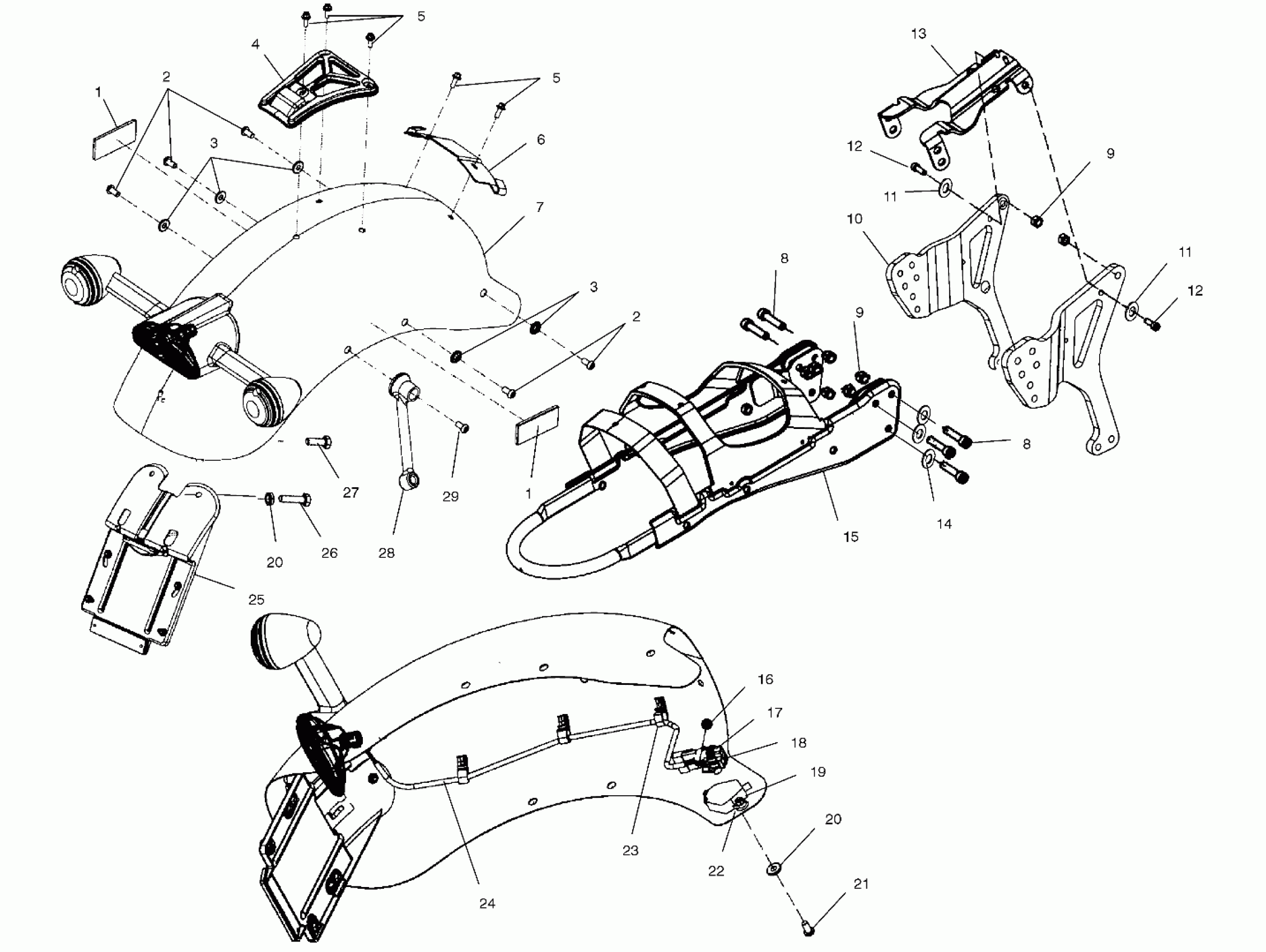

Polaris SPORTCRUISER - V01CS15LF BODY, REAR FENDER and TAILLIGHT MOUNTING - V01CS15DA (4966166616A004) Diagram

#

Description
Price

1

REFLECTOR-RECT,RED W/BLK FRAME

5433865

Unavailable

1

REFLECTOR-RECT,RED W/BLK FRAME

5433865

Unavailable

2

SCR-FLHD,M8X20,0600085(10)

7517840

Unavailable

2

SCR-FLHD,M8X20,0600085(10)

7517840

Unavailable

3

BUSHING-FENDER,REAR,01

5132668

Unavailable

3

BUSHING-FENDER,REAR,01

5132668

Unavailable

4

BRACKET-TANDEM SEAT MTG

5433482

$15.56

5

SCREW,M6X16(10)

7517705

$6.79

5

SCREW,M6X16(10)

7517705

$6.79

6

SUPPORT,HELMET HOOK,REAR [No Longer Available]

5241889-067

$24.60

7

FENDER,REAR,SC.CRSR,BLK

1012817-266

$824.99

7

WELD-FENDER,REAR,SC,SPEED YLW

1012817A11

$824.99

7

FENDER,REAR,SC,STL GREY

1012817-302

$804.99

7

WELD-FENDER,REAR,SC,ANT.RED [Item NotAvailable]

1012817-265

$804.99

8

SCREW,HEXHD,M10X50(10)

7517946

Unavailable

8

SCREW,HEXHD,M10X50(10)

7517946

Unavailable

9

NUT (10)

7547039

Unavailable

9

NUT (10)

7547039

Unavailable

10

SUBFRAME-FORMED,LH,BLK

5244574-067

$172.22

10

SUBFRAME-FORMED,RH,BLK

5244575-067

$130.95

11

WSHR-FL,8.4X1.6X16,0600090(10)

7556164

$2.99

11

WSHR-FL,8.4X1.6X16,0600090(10)

7556164

$2.99

12

SCR-HEXHD,M8X30,0600088(10)

7517835

$2.60

12

SCR-HEXHD,M8X30,0600088(10)

7517835

$2.60

13

COVER,SUBFRAME Substituted by 1012961-067

1012961-067

$115.08

14

WASHER(10)

7556123

Unavailable

15

SUBFRAME,MOD,REAR,BLK

1012953-067

$744.99

16

PLUG,ELECTIRCAL

4010256

$2.62

17

LOCK,CONN,8 PIN,R.FENDER

4010154

$1.35

18

CONNECTOR,8 PIN,R.FENDER

4010153

$13.89

19

LOCK,SEAT [No Longer Available]

7010088

Unavailable

20

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

20

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

21

SCREW (10) Substituted by 7517705

7517370

$6.79

22

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

23

CLIP,ELECTRICAL

7080737

Unavailable

24

HARNESS,RH,R.TURNSIGNAL

2460692

$23.02

24

HARNESS,LH,R.TURNSIGNAL

2460695

$23.02

25

REFLECTOR,REAR,RED

5432992

Unavailable

25

HSNG,LICPLATE LIGHT,SC

5132233

Unavailable

25

HARNESS,LIC.PLATE,SC

2460774

$13.10

25

BRKT,LICENSE PLATE,SC

5243131

$16.35

25

DART,REFLECTOR,SC

5433708

$2.38

26

SCR,HXFLGHD,M6X16

7517770

$2.39

27

SCREW-HXFLGHD,M6X12

7517886

$1.59

28

DESC NOT_AVAILABLE

5243302-067

$61.90

29

SCR,BTNHD,M8X16

7517767

Unavailable
