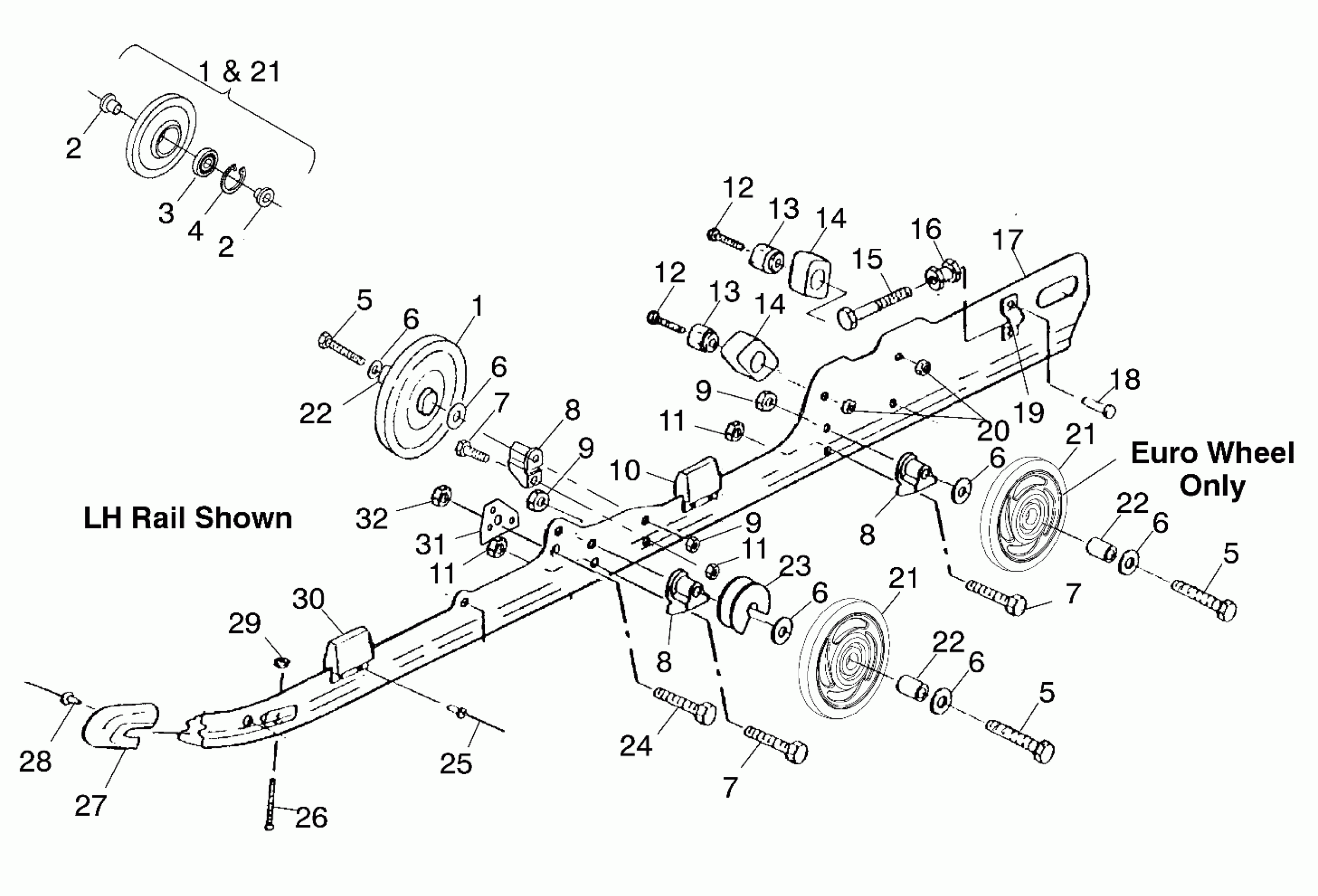

Polaris SPORT TOURING - S02SU5BS RAIL MOUNTING (SUSPENSION) - S02SU5BS/S02SD5BE (4968706870B006) Diagram

#

Description
Price

1

WHEEL, IDLER (Incl. 2,3,4)

1543018

$56.65

1

WHEEL, IDLER (Incl. 2,3,4)

1543018

$56.65

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

3

BEARING,CHAINCASE (1 per Wheel)

3514305

$19.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

BOLT(10) (Euro Qty. 6)

7512538

$6.39

5

BOLT(10) (Euro Qty. 6)

7512538

$6.39

5

BOLT(10) (Euro Qty. 6)

7512538

$6.39

6

WASHER, FLAT(10) (Euro Qty. 12)

7555852

$2.39

6

WASHER, FLAT(10) (Euro Qty. 12)

7555852

$2.39

6

WASHER, FLAT(10) (Euro Qty. 12)

7555852

$2.39

6

WASHER, FLAT(10) (Euro Qty. 12)

7555852

$2.39

6

WASHER, FLAT(10) (Euro Qty. 12)

7555852

$2.39

6

WASHER, FLAT(10) (Euro Qty. 12)

7555852

$2.39

7

BOLT(10) (Euro Qty. 6)

7512404

$3.99

7

BOLT(10) (Euro Qty. 6)

7512404

$3.99

7

BOLT(10) (Euro Qty. 6)

7512404

$3.99

8

SPACER (Euro Qty. 6)

5630399

$11.99

8

SPACER (Euro Qty. 6)

5630399

$11.99

8

SPACER (Euro Qty. 6)

5630399

$11.99

9

NUT, NYLOCK(10) (Euro Qty. 6)

7542525

$4.79

9

NUT, NYLOCK(10) (Euro Qty. 6)

7542525

$4.79

9

NUT, NYLOCK(10) (Euro Qty. 6)

7542525

$4.79

10

REINF., BUMPER

5222629

$13.75

10

BUMPER,SUSPENSION

5811097

Unavailable

11

NUT-LOCK(10) (Euro Qty. 6)

7542439

$1.49

11

NUT-LOCK(10) (Euro Qty. 6)

7542439

$1.49

11

NUT-LOCK(10) (Euro Qty. 6)

7542439

$1.49

12

BOLT,(10)

7515545

$5.59

12

BOLT,(10)

7515545

$5.59

13

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

13

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

14

BUMPER,F.PIVOT ARM

5410925

$12.94

14

BUMPER,F.PIVOT ARM

5410925

$12.94

15

SCREW,(10)

7517227

$7.19

16

NUT(10)

7542404

$1.59

17

RAIL ASM,LH,X-10,136 (Incl. 10,18,19,25,27,28,30)

1541155

Unavailable

17

RAIL ASM,RH,X-10,136 (Incl. 10,18,19,25,27,28,30)

1541156

$319.99

18

RIVET,(50)

7621501

$2.39

19

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

20

NUT LOCK(10)

7542411

$3.19

21

WHEEL,BOGIE,SCRL,C.RED (Incl. 2,3,4)(Euro Qty. 4)

1594082-256

Unavailable

21

WHEEL,BOGIE,SCRL,C.RED (Incl. 2,3,4)(Euro Qty. 4)

1594082-256

Unavailable

21

WHEEL,BOGIE,SCRL,C.RED (Incl. 2,3,4)(Euro Qty. 4)

1594082-256

Unavailable

22

SPACER, WHEEL (Euro Qty. 6)

5333116

$7.99

22

SPACER, WHEEL (Euro Qty. 6)

5333116

$7.99

22

SPACER, WHEEL (Euro Qty. 6)

5333116

$7.99

23

SPRING,ROLLER,SQ

5433575

Unavailable

24

BOLT(10)

7512457

$3.99

25

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

26

BOLT(10)

7515175

$3.99

27

COVER,RAIL TIP

5433005

Unavailable

28

RIVET(50)

7621435

$1.49

29

NUT-LOCK(10)

7542122

$1.49

30

REINF., BUMPER

5222629

$13.75

30

BUMPER, RAIL

5810554

$7.27

31

PLATE,RAILSUPPORT,136"

5211843

Unavailable

32

NUT LOCK(10)

7542403

$3.99
