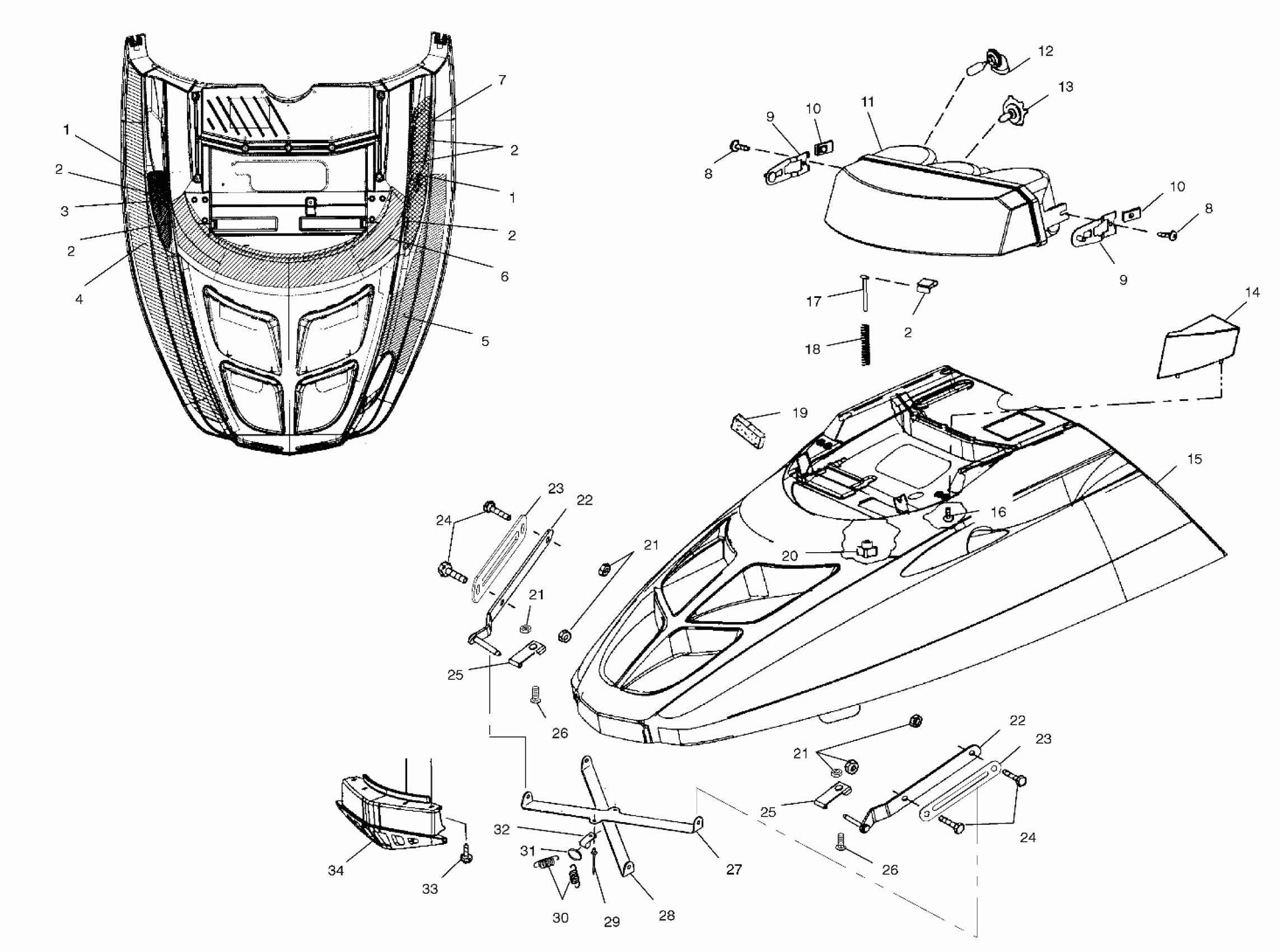

Polaris SPORT TOURING - S02SU5BS HOOD - S02SU5BS/S02SD5BE (4968706870A008) Diagram

#

Description
Price

1

BOLT(10)

7511864

$4.79

1

BOLT(10)

7511864

$4.79

2

FASTENER-U TYPE CLIP

7670040

$3.99

2

FASTENER-U TYPE CLIP

7670040

$3.99

2

FASTENER-U TYPE CLIP

7670040

$3.99

2

FASTENER-U TYPE CLIP

7670040

$3.99

2

FASTENER-U TYPE CLIP

7670040

$3.99

3

COVER-L/H LOUVER,F/C,BLK

5243172-067

$5.75

4

FOAM,HOOD,LH

5811607

$36.41

5

FOIL,HEATSHEILD,HOOD,RH

5811997

$11.59

6

FOAM-HOOD CENTER,BEVELED

5811717

Unavailable

7

SCREEN,RH,HOOD,BLK.

5242858-067

$54.99

8

BOLT(10)

7515107

Unavailable

8

BOLT(10)

7515107

Unavailable

9

MOUNT,WELD,H/L

1011944-067

$24.27

9

MOUNT,WELD,H/L

1011944-067

$24.27

10

NUT, SPEED(10)

7670057

$1.49

10

NUT, SPEED(10)

7670057

$1.49

11

ASM-HEADLAMP,THREE BULB (Incl. Bulbs)

2433016

$249.99

12

BULB-HEADLIGHT,50 WATT

4010253

$34.99

13

BULB,QUARTZ.H/L,INDY

2870448

$24.99

14

LENS,LH,CLR.REFLECTOR

5431855

Unavailable

14

LENS,RH,CLR.REFLECTOR

5431856

Unavailable

15

ASM-HOOD,SVC,HBD,SOLAR RED (Incl. Foam/Foil)

2632170-342

$764.99

16

SCREW(10) Substituted by 7512048

7511953

Unavailable

17

BOLT,TEE ADJUSTER,2.25

7517746

$24.99

18

SPRING,H/L.ADJ.

7041308

$3.19

19

FOAM-HEADLIGHT SEAL W/PSA

5811687

$20.22

20

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

21

NUT-LOCK(10)

7542122

$1.49

22

HINGE,LH,UPPER

1012750

$48.56

22

HINGE,RH,UPPER

1012751

$43.99

22

HINGE,LH,UPPER

1012750

$48.56

22

HINGE,RH,UPPER

1012751

$43.99

23

PLATE-BOLT

5242948

$9.70

23

PLATE-BOLT

5242948

$9.70

24

BOLT(10) Substituted by 7512247

7515184

Unavailable

24

BOLT(10) Substituted by 7512247

7515184

Unavailable

25

PLATE,HINGE,LOWER

5244395

$11.99

25

PLATE,HINGE,LOWER

5244395

$11.99

26

BOLT(10)

7512193

$2.39

26

BOLT(10)

7512193

$2.39

27

BRACE,HOOD,UPPER

5242945

$40.46

28

BRACE,HOOD,LOWER

5242946

$40.46

29

RIVET-3/16-.090-.290

7661637

$1.49

30

SPRING-EXT.

7041732

$7.19

31

SPRING-ATTACHMENT RING(10)

7041760

$7.99

32

CLAMP, RETAINER(10)

7080372

$3.99

33

SCREW(10)

7517441

$2.39

34

SCREEN,FRONT,HYB

5432931

$36.41
