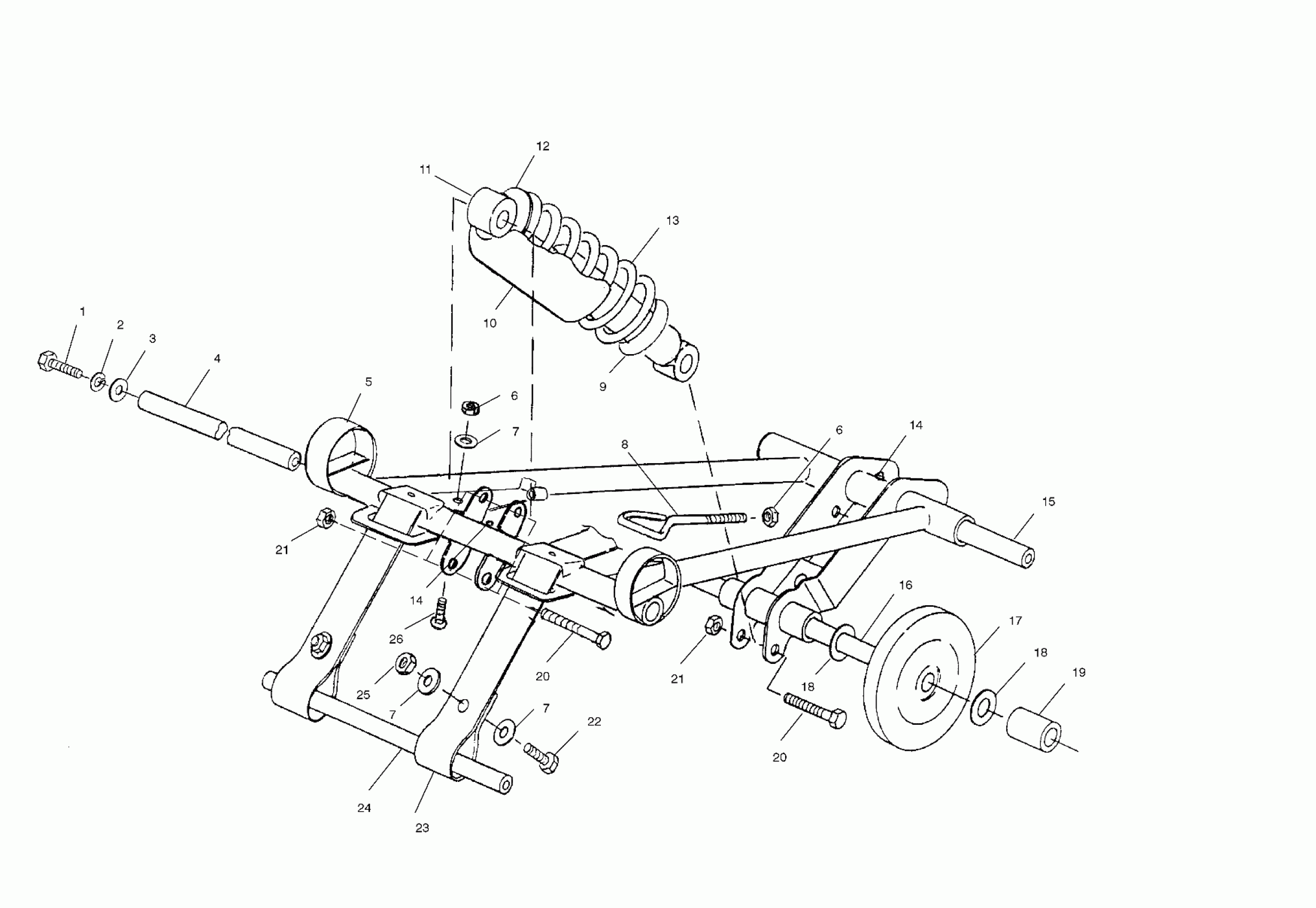

Polaris SPORT TOURING - S02SU5BS FRONT TORQUE ARM - S02SU5BS/S02SD5BE (4968706870B007) Diagram

#

Description
Price

1

Bolt

7517435

$14.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

Shaft

5020908

$69.99

5

TORQUE ARM FRONT,X10,QA,BLK

1541466-067

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

7

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

7

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

8

BOLT,EYE

7010050

Unavailable

9

RETAINER-SPRING,GAB,PLATED

5245067

$23.99

10

SHIELD-SPRING

5430671

$24.27

11

SHOCK,FRT.TRACK,X10,136

7041745

Unavailable

12

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

13

SPRING,BLACK,COMP.

7041253-067

$95.22

14

FITTING-LUBRICATION 1/4-28

7080424

$4.79

14

FITTING-LUBRICATION 1/4-28

7080424

$4.79

15

Shaft (See Suspension Pg. B5, Ref. 24)

-------

Unavailable

16

Shaft (See Suspension Pg. B5, Ref. 22)

-------

Unavailable

17

WHEEL, IDLER

1543018

$56.65

18

MACHINERY BUSHING(10)

7556301

$3.19

18

MACHINERY BUSHING(10)

7556301

$3.19

19

SPACER, OUTER

5332784

Unavailable

20

BOLT Substituted by 7515491

7515433

$1.59

20

BOLT Substituted by 7515491

7515433

$1.59

21

NUT LOCK(10)

7542411

$3.19

21

NUT LOCK(10)

7542411

$3.19

22

SCREW ,(10)

7517313

$4.79

23

STRAP,LIMITER,FRONT

5411045

Unavailable

24

Shaft, Pivot Arm (See Suspension Pg. B5, Ref. 21)

-------

Unavailable

25

NUT,NYLOC,(10)

7542344

$3.99

26

BOLT(10)

7512377

$4.79
