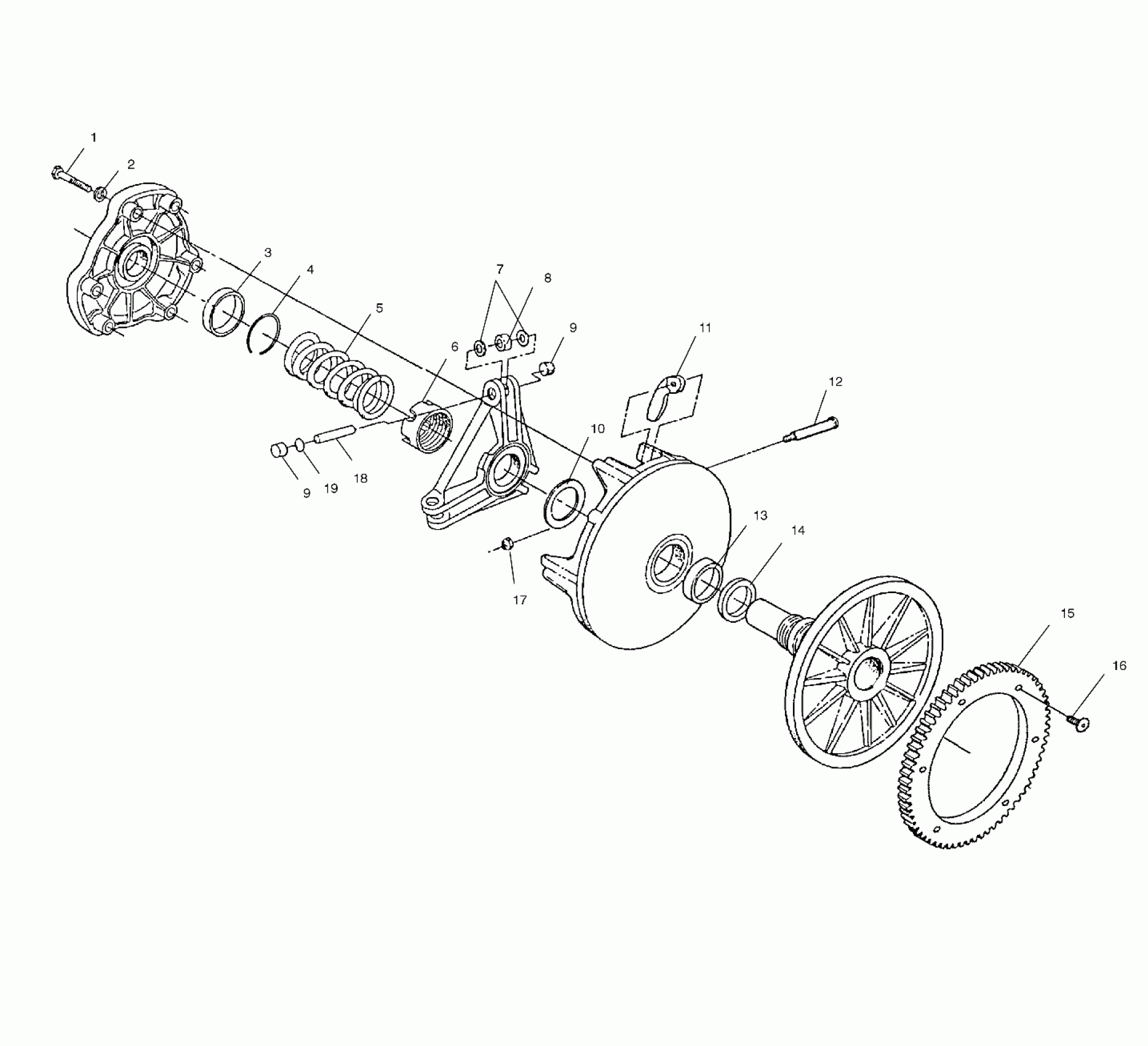

Polaris SPORT TOURING - S02SU5BS DRIVE CLUTCH - S02SU5BS/S02SD5BE (4968706870B009) Diagram

#

Description
Price

-

Kit - Clutch Rebuild (Incl. 7-9,12,18,19)(Euro) (Incl. 7-9,12,18,19)(Euro)

2200386

$161.89

-

Kit, Clutch Rebuild (Incl. 7-9,18) (Incl. 7-9,18)

2201314

Unavailable

-

Asm., Drive Clutch, Basic 94 (Incl. 1-4,7-10,12,13,17) (Incl. 1-4,7-10,12,13,17)

1321768

Unavailable

-

Asm., Drive Clutch, Basic 95 (Incl. 1,2,4,6-8,12-18)(Euro) (Incl. 1,2,4,6-8,12-18)(Euro)

1321769

Unavailable

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

Cover, Bearing

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Dark Blue/White

7041781

$56.65

6

NUT-JAM (Euro)

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

BUTTON, GUIDE

5430445

$6.39

9

BUTTON, GUIDE

5430445

$6.39

10

Spacer (.050mm) (.050mm)

5210754

Unavailable

10

Spacer (.025mm) (.025mm)

5242981

Unavailable

10

Spacer (.020mm) (.020mm)

5210752

Unavailable

10

Spacer (.032mm) (.032mm)

5210753

Unavailable

11

Weight/Bushing (10-62) (10-62)

1321586

$40.46

11

Weight/Bushing (10-60) (10-60)(Euro)

1321587

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve (Euro) (Euro)

3576502

$23.99

13

Bearing, Moveable (1/2 inch) (1/2 inch)

3576504

$23.99

14

INSERT-MOVEABLE (Euro)

5010188

$7.99

15

Gear, Ring (Euro) (Euro)

5131062

Unavailable

16

Screw (Euro) (Euro)

7515351

$3.99

17

NUT, FLEXLOC

7541906

$3.19

18

PIN-ROLLER

5020422

$2.39

19

Kit - Shim, Drive Clutch (Euro)

2200387

$24.27
